    Queen size master bed

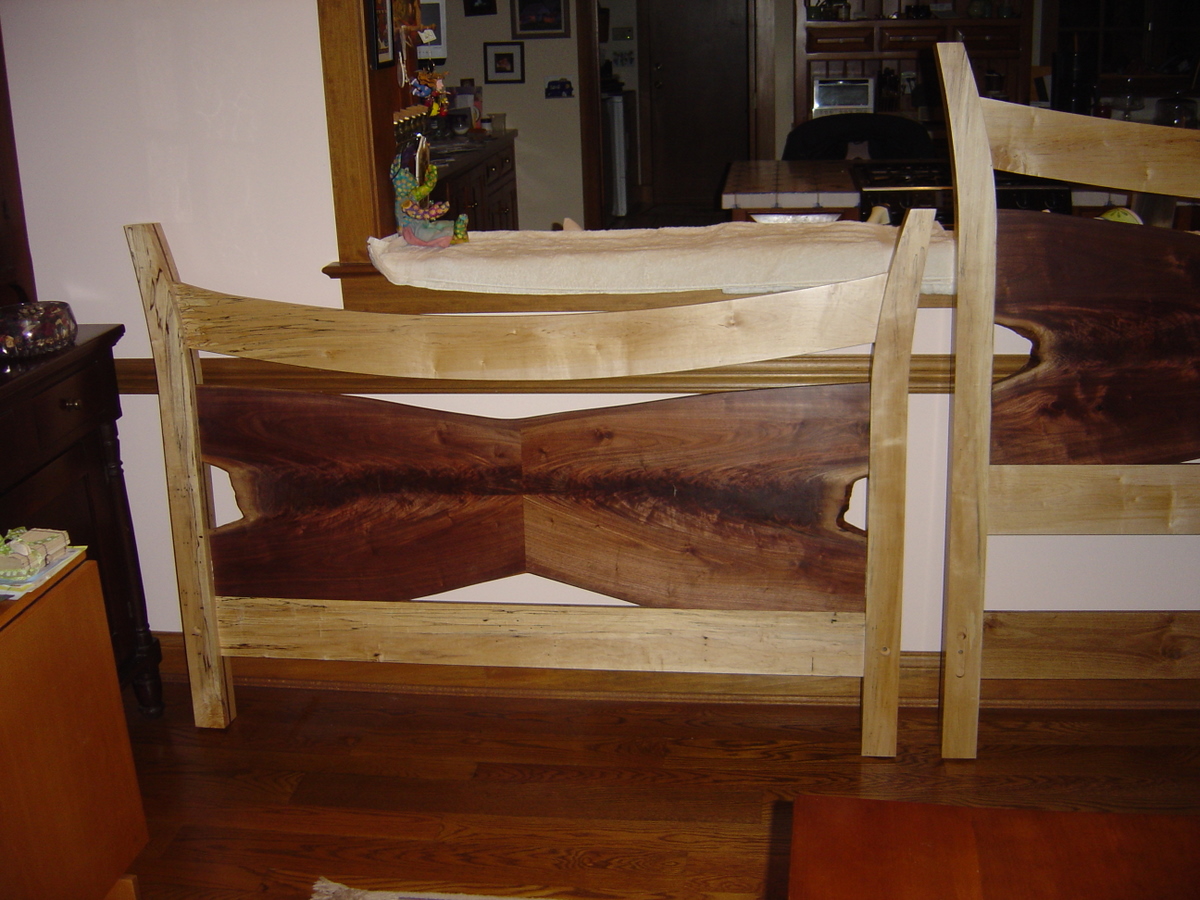

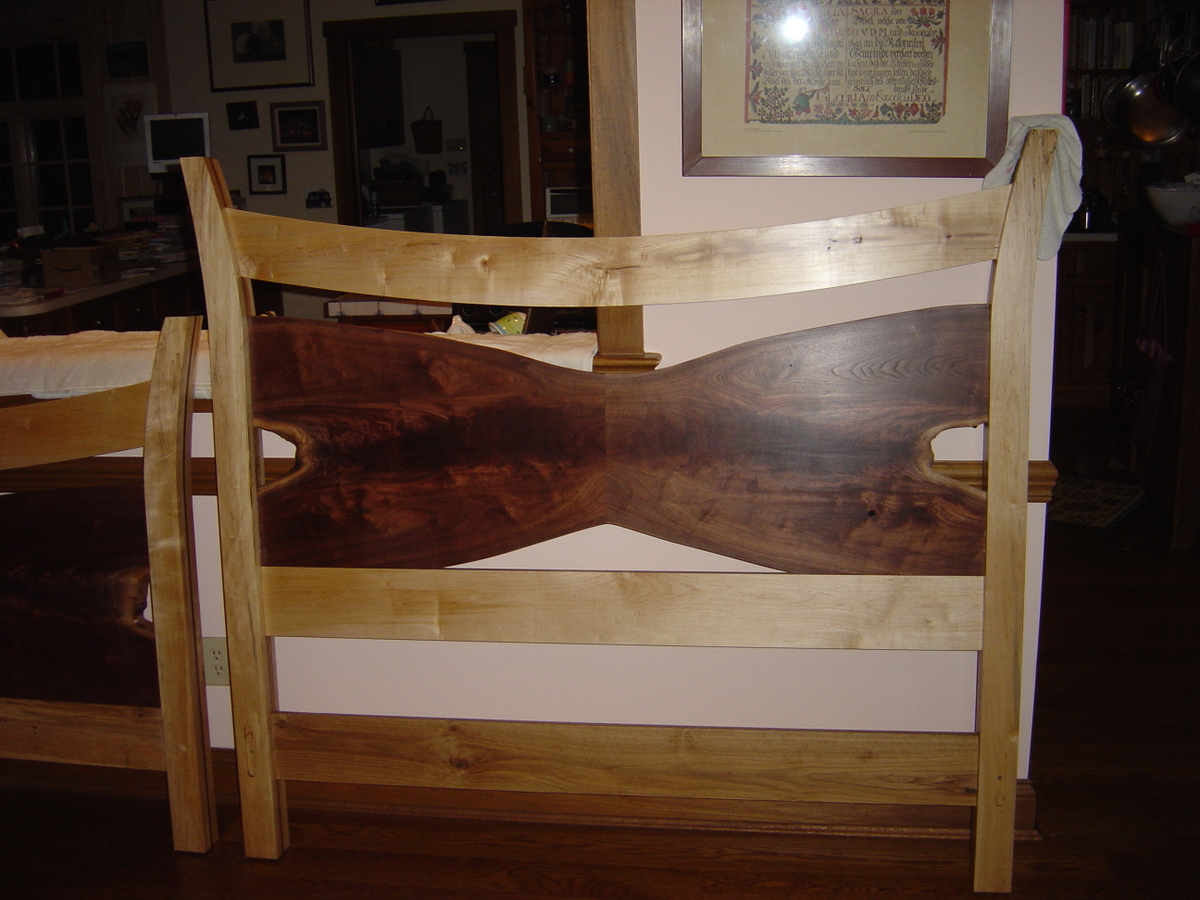

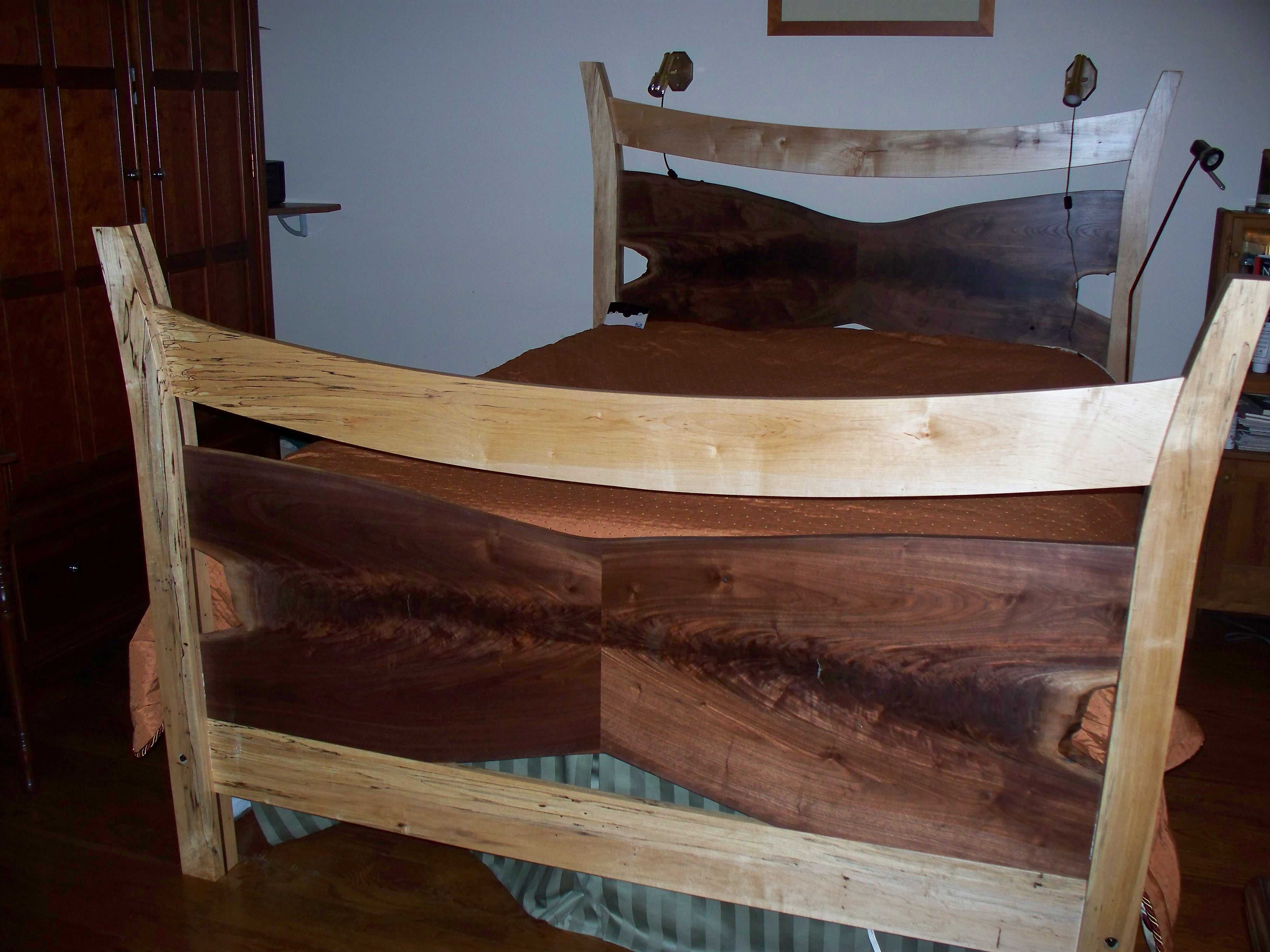

    I had a couple of walnut slabs for a long time that I did not know what to do with, so I decided to incorporate them into the headboard and footboard of a bed. As you may have seen before, I also had some beautiful spalted maple that I thought would make a good contrast and lighten the overall effect. The headboard and footboard are glued into the legs using traditional mortise and tenon, except the tenons were so long I routed out the mortises to save time and get smooth sides. The legs also have a 1/2-inch strip of walnut laminated between maple for a little decorative touch. The side rails are attached with shallow tenons and bed bolts. The legs are straight vertical except for a flair to the outside for the last foot or so, even though in the pictures they look like the whole leg splays outward. No stains were used and it was finished with spray pre-catalyzed laquer. So far it is very stable.
    Attached Files
  • SARGE..g-47

    #2
    Excellent machine... you handled those curves very well which lead to an interestig effect on the over-all piece assembled. Were the top 8" of curve cut from one blank or did you add the curve piece? I suspect one blank.

    Comment

    • themachine
      Established Member
      • Jan 2006
      • 140
      • Cincinnati, OH
      • BT3100, General Intl. 220

      #3
      Yes, I made up the legs to 5-inch thickness in one dimension so I could cut the curve. Finished legs are 3 X 3 until the curve starts, where the flair out and taper down to about 2 inches.

      Comment

      • JR
        The Full Monte
        • Feb 2004
        • 5633
        • Eugene, OR
        • BT3000

        #4
        Very nice! I really like the lamination idea and the curves are beatuiful.

        JR
        JR

        Comment

        • cgallery
          Veteran Member
          • Sep 2004
          • 4503
          • Milwaukee, WI
          • BT3K

          #5
          Nice work, I love the appearance it gives of just using pieces on hand and "throwing it together," although anyone here clearly knows better.

          Comment

          • footprintsinconc
            Veteran Member
            • Nov 2006
            • 1759
            • Roseville (Sacramento), CA
            • BT3100

            #6
            very beautiful! i love the curves and the design.
            _________________________
            omar

            Comment

            • mschrank
              Veteran Member
              • Oct 2004
              • 1130
              • Hood River, OR, USA.
              • BT3000

              #7
              OUTSTANDING! BEAUTIFUL!

              Very creative use of some unique wood. You should be proud of that work.
              Mike

              Drywall screws are not wood screws

              Comment

              • lrogers
                Veteran Member
                • Dec 2002
                • 3853
                • Mobile, AL. USA.
                • BT3000

                #8
                EXCELLENT job!
                Larry R. Rogers
                The Samurai Wood Butcher
                http://splash54.multiply.com
                http://community.webshots.com/user/splash54

                Comment

                • Ed62
                  The Full Monte
                  • Oct 2006
                  • 6021
                  • NW Indiana
                  • BT3K

                  #9
                  Eye candy. Nice work.

                  Ed
                  Do you know about kickback? Ray has a good writeup here... https://www.sawdustzone.org/articles...mare-explained

                  For a kickback demonstration video http://www.metacafe.com/watch/910584...demonstration/

                  Comment

                  • Pappy
                    The Full Monte
                    • Dec 2002
                    • 10453
                    • San Marcos, TX, USA.
                    • BT3000 (x2)

                    #10
                    Beautiful, both the wood and the design!
                    Don, aka Pappy,

                    Wise men talk because they have something to say,
                    Fools because they have to say something.
                    Plato

                    Comment

                    • poolhound
                      Veteran Member
                      • Mar 2006
                      • 3195
                      • Phoenix, AZ
                      • BT3100

                      #11
                      Totally awesome, I love the way you used the walnut.
                      Jon

                      Phoenix AZ - It's a dry heat
                      ________________________________

                      We all make mistakes and I should know I've made enough of them
                      techzibits.com

                      Comment

                      • shoottx
                        Veteran Member
                        • May 2008
                        • 1240
                        • Plano, Texas
                        • BT3000

                        #12
                        Very cool

                        Great wood combination is a very appropriate design. All of it well done!
                        Often in error - Never in doubt

                        Mike

                        Comment

                        • Bill in Buena Park
                          Veteran Member
                          • Nov 2007
                          • 1865
                          • Buena Park, CA
                          • CM 21829

                          #13
                          Nice work, machine - great style and choice of woods.
                          Bill in Buena Park

                          Comment

                          • smorris
                            Senior Member
                            • Apr 2003
                            • 695
                            • Tampa, Florida, USA.

                            #14
                            Nice work, real nice curves. Have to keep LOML from seeing this.
                            --
                            Any sufficiently advanced incompetence is indistinguishable from malice

                            Comment

                            • MilDoc

                              #15
                              REAL nice. Now if I could just find the time to make the one LOML wants.....
