    Hochberg-style coffee table

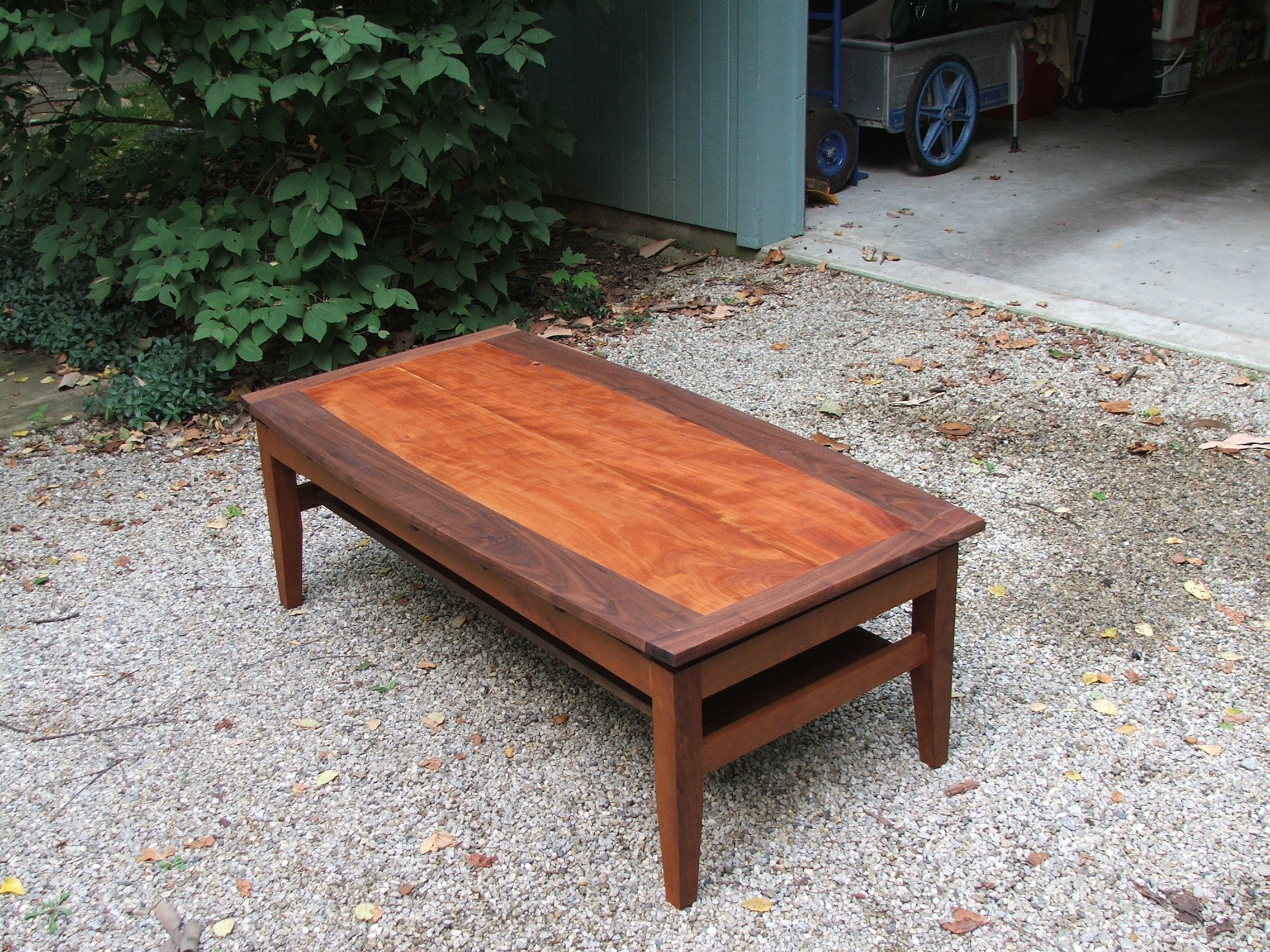

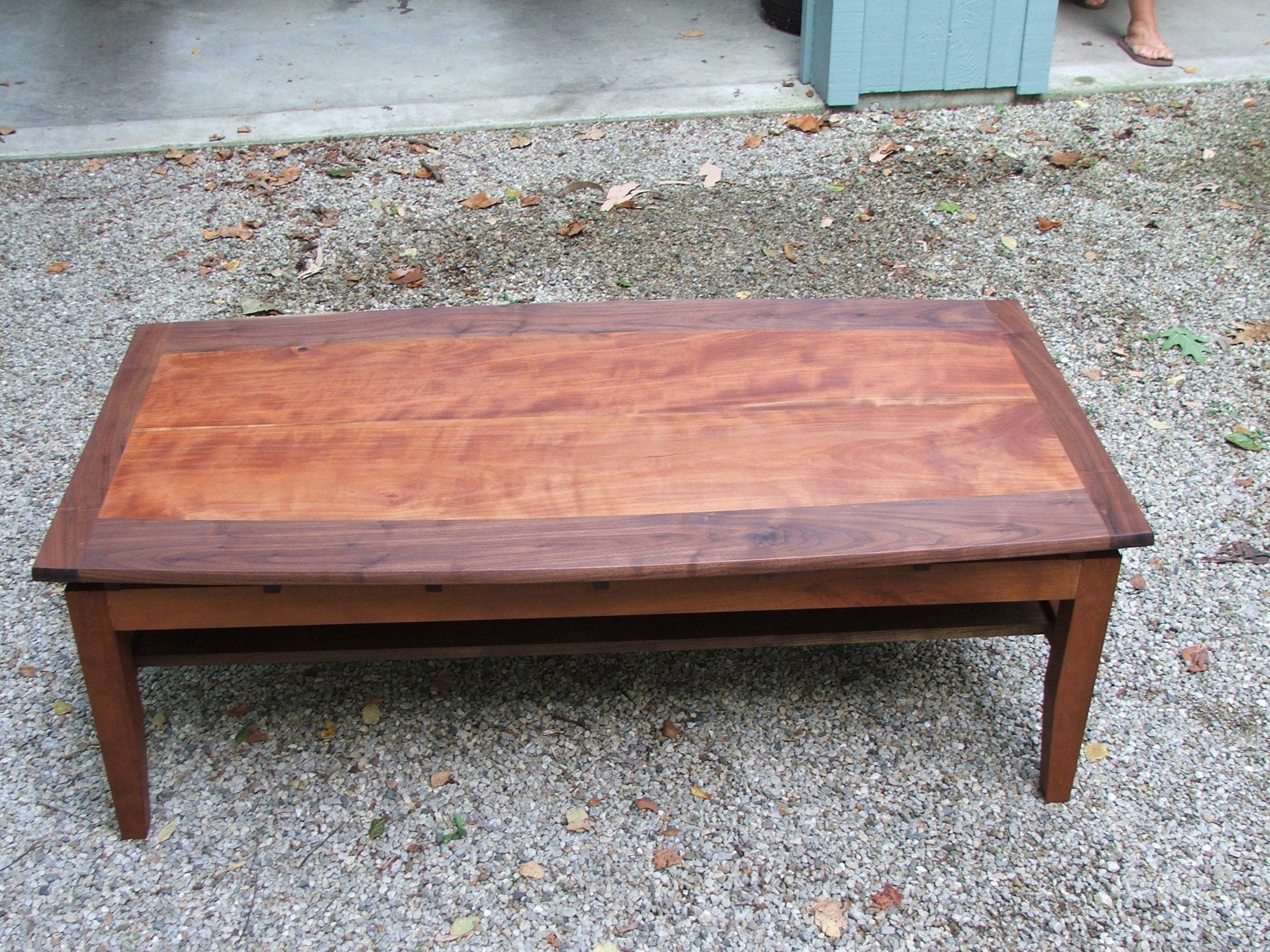

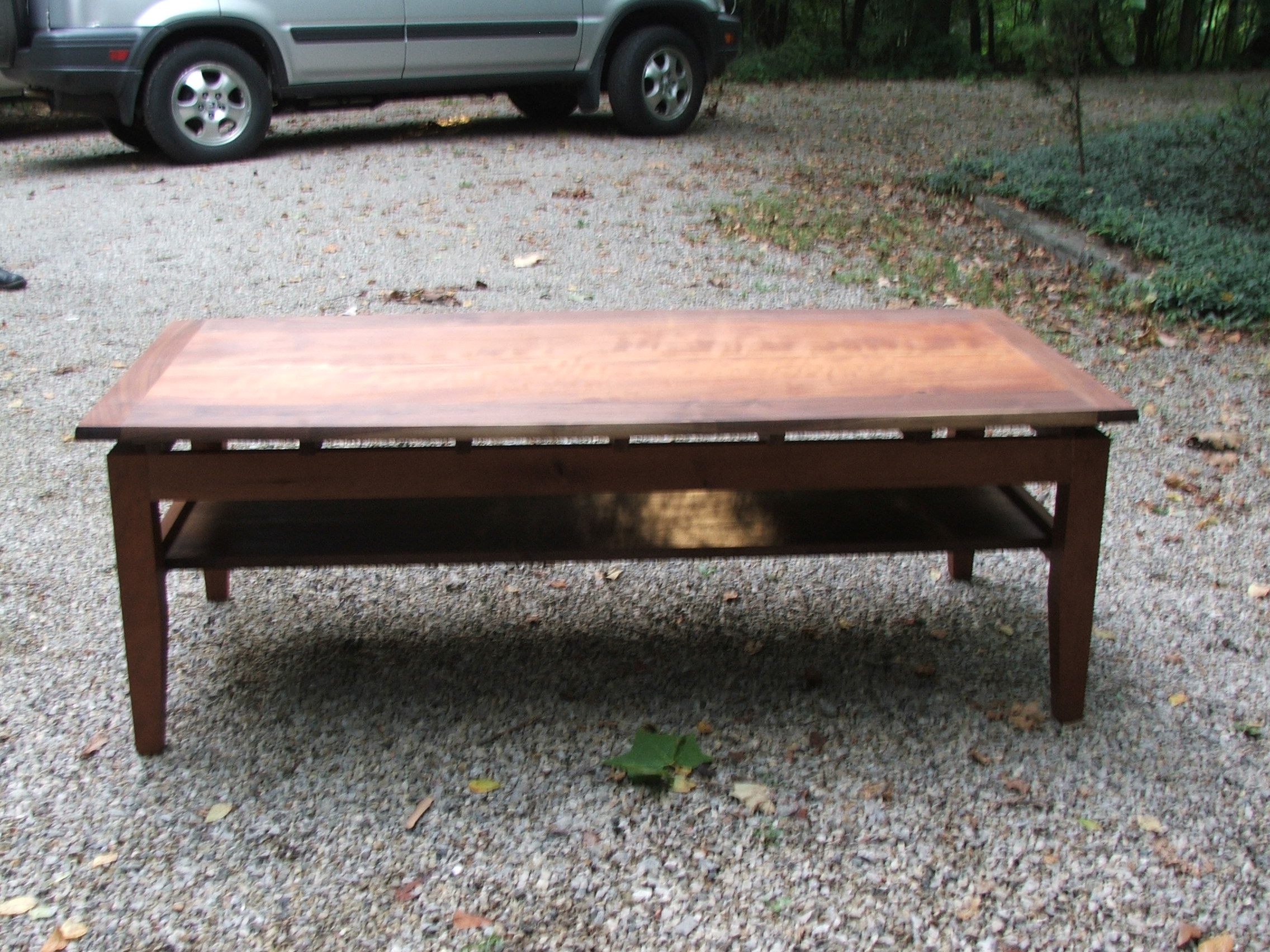

    My third project is almost finished, and as there haven't been many projects posted lately, I thought of putting this up. The table main components are cherry, with some walnut thrown in. The lower shelf, the brackets under the top keeping it off the skirt, and the trim around the center cherry section in the top are all walnut. The table top ends are breadboards, pinned on with a center fixed dowel and two dowels on the ends in enlarged holes in the top. The frame (carcass) is all mortise and tenon, and the lower shelf is also basically extended mortise and tenon. The slight curve on the long edges of the top are also mirrored in the walnut edging. This required the use of several templates and two different router bushing guides and trim bits to get complementary curves before glue up. I have rubbed in boiled linseed oil to give the finish a little warmth and depth (no dyes or stains) before finishing with an alkyd varnish (not applied yet).
    Attached Files
  • pelligrini
    Veteran Member
    • Apr 2007
    • 4217
    • Fort Worth, TX
    • Craftsman 21829

    #2
    That's a truly sharp looking table. The curves really make it.
    Erik

    Comment

    • JR
      The Full Monte
      • Feb 2004
      • 5636
      • Eugene, OR
      • BT3000

      #3
      That's a thing of beauty!
      JR

      Comment

      • poolhound
        Veteran Member
        • Mar 2006
        • 3196
        • Phoenix, AZ
        • BT3100

        #4
        very nice indeed. I like the shape of the table top.
        Jon

        Phoenix AZ - It's a dry heat
        ________________________________

        We all make mistakes and I should know I've made enough of them
        techzibits.com

        Comment

        • lrogers
          Veteran Member
          • Dec 2002
          • 3853
          • Mobile, AL. USA.
          • BT3000

          #5
          very nice indeed. The color contrast on the top really catches the eye.
          Larry R. Rogers
          The Samurai Wood Butcher
          http://splash54.multiply.com
          http://community.webshots.com/user/splash54

          Comment

          • atgcpaul
            Veteran Member
            • Aug 2003
            • 4055
            • Maryland
            • Grizzly 1023SLX

            #6
            Nice work. The top came out great.

            Comment

            • jhart
              Veteran Member
              • Feb 2004
              • 1715
              • Minneapolis, MN, USA.
              • BT3100

              #7
              Beautiful table. Nice contrasts and joint work.
              Joe
              "All things are difficult before they are easy"

              Comment

              • dlminehart
                Veteran Member
                • Jul 2003
                • 1829
                • San Jose, CA, USA.

                #8
                Elegant. The "floating" top works really well in this design.
                - David

                “Be yourself; everyone else is already taken.” -- Oscar Wilde

                Comment

                • AusRob
                  Forum Newbie
                  • Jun 2008
                  • 46

                  #9
                  Great choice of timbers and a very nice result!
                  http://www.dam%6efinefurniture.com/

                  Comment

                  • Popeye
                    Veteran Member
                    • Mar 2003
                    • 1848
                    • Woodbine, Ga
                    • Grizzly 1023SL

                    #10
                    That's really a killer design. Beautiful workmanship. Pat
                    Woodworking is therapy.....some of us need more therapy than others. <ZERO>

                    Comment

                    • BobSch
                      Veteran Member
                      • Aug 2004
                      • 4385
                      • Minneapolis, MN, USA.
                      • BT3100

                      #11
                      Originally posted by Popeye
                      That's really a killer design. Beautiful workmanship. Pat
                      Can't add anything to that. A beautiful piece.
                      Bob

                      Bad decisions make good stories.

                      Comment

                      • Bruce Cohen
                        Veteran Member
                        • May 2003
                        • 2698
                        • Nanuet, NY, USA.
                        • BT3100

                        #12
                        Originally posted by themachine
                        The table top ends are breadboards, pinned on with a center fixed dowel and two dowels on the ends in enlarged holes in the top.
                        That is really a super nifty piece of work. If you can, please explain the breadboarding you did, it sounds somewhat different to the technique I'm used to.

                        I really admire that table.

                        Bruce
                        "Western civilization didn't make all men equal,
                        Samuel Colt did"

                        Comment

                        • John Hunter
                          Veteran Member
                          • Dec 2004
                          • 2034
                          • Lake Station, IN, USA.
                          • BT3000 & BT3100

                          #13
                          Very nice.
                          John Hunter

                          Comment

                          • SARGE..g-47

                            #14
                            Very nice, Machine. I like the "floating top" and you were wise to set the dowels up in the bread-board as you did allowing for the expansion that will most likely rear it's head.

                            Well done...

                            Comment

                            • ironhat
                              Veteran Member
                              • Aug 2004
                              • 2553
                              • Chambersburg, PA (South-central).
                              • Ridgid 3650 (can I still play here?)

                              #15
                              A beautiful design and very nicely executed! About all I do to wood is execute it - LOL!!
                              Blessings,
                              Chiz
