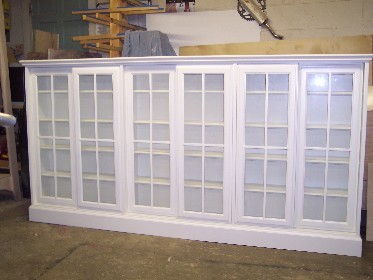

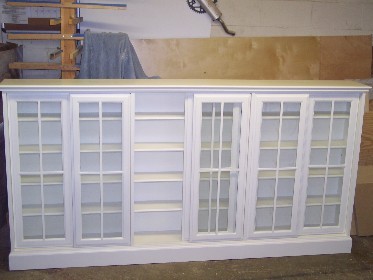

I just finished this today, it's a cd case that holds more cd's than I'll ever own
It's all mdf except for the doors which are pg maple with mullions and glass. The doors slide open and closed in two grooves cut in the top and bottom of the case. I made 1/8" x 1" rabbits in the backs of the doors at top and bottom then milled maple strips 1/8" x 1 1/2" for the bottom and 1/8" x 1 5/8" for the top and fastened them in the rabbits on the doors. The top groove is deeper than the bottom so the doors can be raised up into the top groove and the bottom comes out of its groove allowing the doors to be removed. The shelves were notched on the front then slid into stopped dado's from the back then the back was put on . All in all a fun project that only took a couple of days to finish.
It's all mdf except for the doors which are pg maple with mullions and glass. The doors slide open and closed in two grooves cut in the top and bottom of the case. I made 1/8" x 1" rabbits in the backs of the doors at top and bottom then milled maple strips 1/8" x 1 1/2" for the bottom and 1/8" x 1 5/8" for the top and fastened them in the rabbits on the doors. The top groove is deeper than the bottom so the doors can be raised up into the top groove and the bottom comes out of its groove allowing the doors to be removed. The shelves were notched on the front then slid into stopped dado's from the back then the back was put on . All in all a fun project that only took a couple of days to finish.
