Description

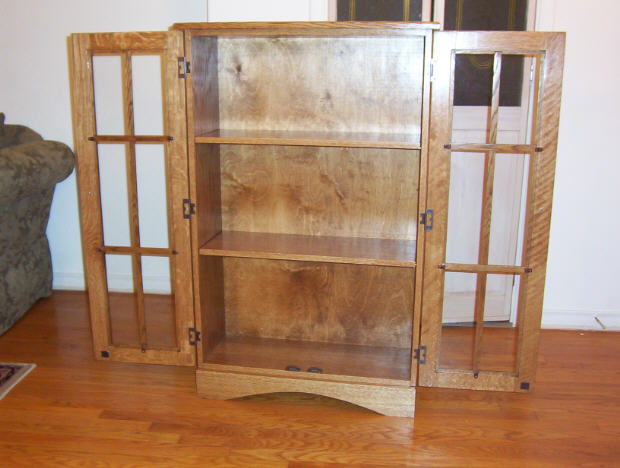

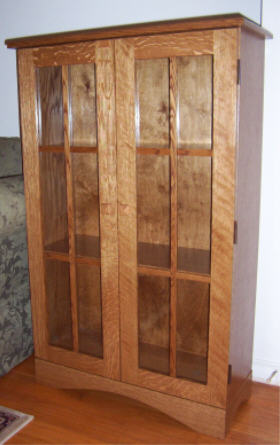

Here is a craftsman style bookcase I just completed. The plans are from "The Complete Book of Woodworking" cited by several others on this forum. The carcase and shelves are 3/4" white oak ply with the doors and base qtrsawn white oak. Biscuits join the carcase and the door rails & stiles.
The top has solid edge banding with a chamfered edge. The other exposed ply edges have iron-on white oak veneer.
The finish is Minwax "Early American" stain with 3 coats "Tung Oil Finish", 0000 steel wool rubs between and a top coat of paste wax.
The doors have 1/8" tempered glass panes for child missile safety. I went with no-mortise brass hinges from Rockler instead of the standard butt hinges (and mortises).
Other than taking WAY longer than I wanted or expected, I totally enjoyed this project. (It's not a race...) Thanks for looking.
Bookcase Lessons Learned
Got some significant chip out/tear out when planing the quartersawn white oak to final thickness, even with taking very shallow passes. Next time will try wetting the boards.
Always check measurements, joints, etc. on test pieces even when using published plans. The plan called for #20 biscuit slots to join the rails & stiles for the doors, but the joiner cut was wider than the 2 1/2" rail width, which would have left exposed biscuit on top & bottom of the rails. I switched to smaller biscuits in this instance.
My first attempt at hand routing the half-lap dados in the thin muntin strips did not go well. I switched to the table saw stacked dado for the 2nd batch... I need some more practice mastering the router.
Here is a craftsman style bookcase I just completed. The plans are from "The Complete Book of Woodworking" cited by several others on this forum. The carcase and shelves are 3/4" white oak ply with the doors and base qtrsawn white oak. Biscuits join the carcase and the door rails & stiles.
The top has solid edge banding with a chamfered edge. The other exposed ply edges have iron-on white oak veneer.
The finish is Minwax "Early American" stain with 3 coats "Tung Oil Finish", 0000 steel wool rubs between and a top coat of paste wax.
The doors have 1/8" tempered glass panes for child missile safety. I went with no-mortise brass hinges from Rockler instead of the standard butt hinges (and mortises).
Other than taking WAY longer than I wanted or expected, I totally enjoyed this project. (It's not a race...) Thanks for looking.
Bookcase Lessons Learned
Got some significant chip out/tear out when planing the quartersawn white oak to final thickness, even with taking very shallow passes. Next time will try wetting the boards.
Always check measurements, joints, etc. on test pieces even when using published plans. The plan called for #20 biscuit slots to join the rails & stiles for the doors, but the joiner cut was wider than the 2 1/2" rail width, which would have left exposed biscuit on top & bottom of the rails. I switched to smaller biscuits in this instance.
My first attempt at hand routing the half-lap dados in the thin muntin strips did not go well. I switched to the table saw stacked dado for the 2nd batch... I need some more practice mastering the router.
