    Revised Miter Sled

    Presenting the "New and Improved" Bomber!

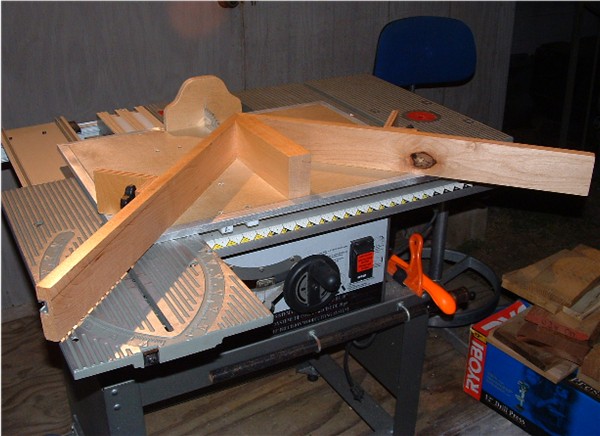

    The original.
    Click image for larger version

Name:	Bomber Miter Sled.jpg
Views:	1
Size:	72.5 KB
ID:	788682

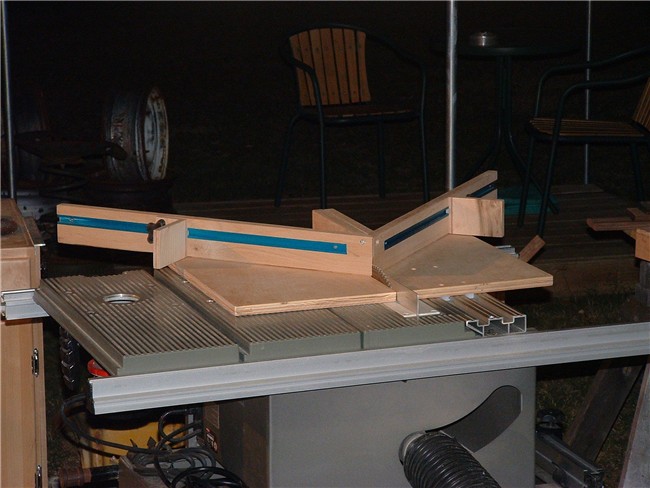

    The revised version.
    Click image for larger version

Name:	Miter Sled.jpg
Views:	3
Size:	71.9 KB
ID:	788683

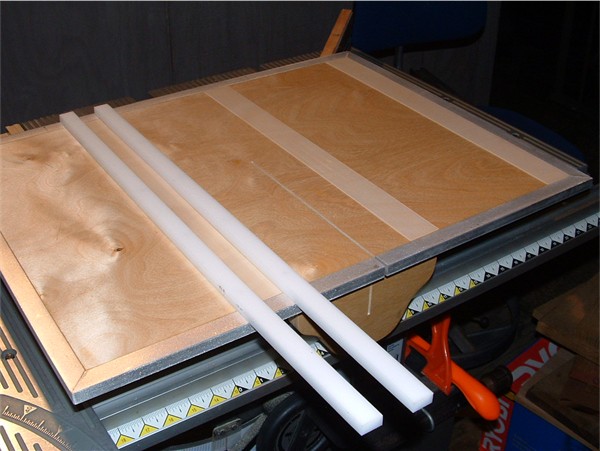

    3 strips of UHMW tape were added to the bottom to make it slide more smoothly.
    Click image for larger version

Name:	Miter Sled bottom.jpg
Views:	2
Size:	68.5 KB
ID:	788684

    The main reason for the new version was to reduce the overall weight. This was done by making the base out of 1/2" Baltic Birch. The original never had a finish applied and had warped a bit, causing it to rock side to side. To stabilize the new sled the base was edged with 1/2" x 3/4" x 1/8" aluminum channel, a bridge piece was added over the front of the kerf cut, and 2 coats of precatylised laquer were applied. The runners were cut long and will be trimmed so they extend aprox. 2" from the front.
