First segmented bowl in cherry

Collapse
X
  • Filter
  • Time
  • Show
Clear All
new posts

  • First segmented bowl in cherry

    I had a commission from somebody who wanted a 16" bowl. Blanks that size are pricey and not easy to come by. I went for a segmented approach and was pretty happy with the result.

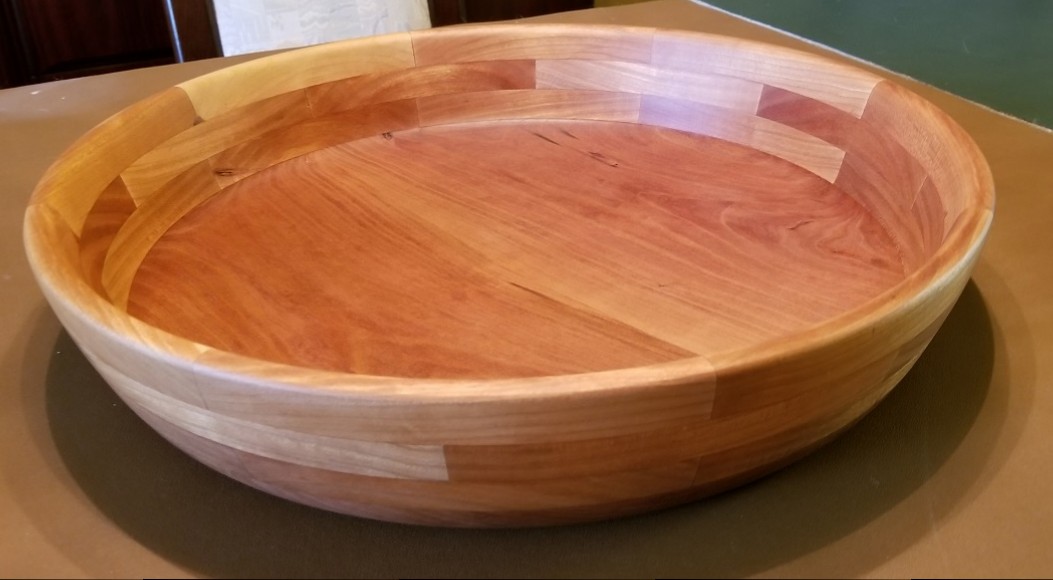

    Click image for larger version  Name:	2017-11-29 11.06.49.jpg Views:	1 Size:	91.2 KB ID:	832179

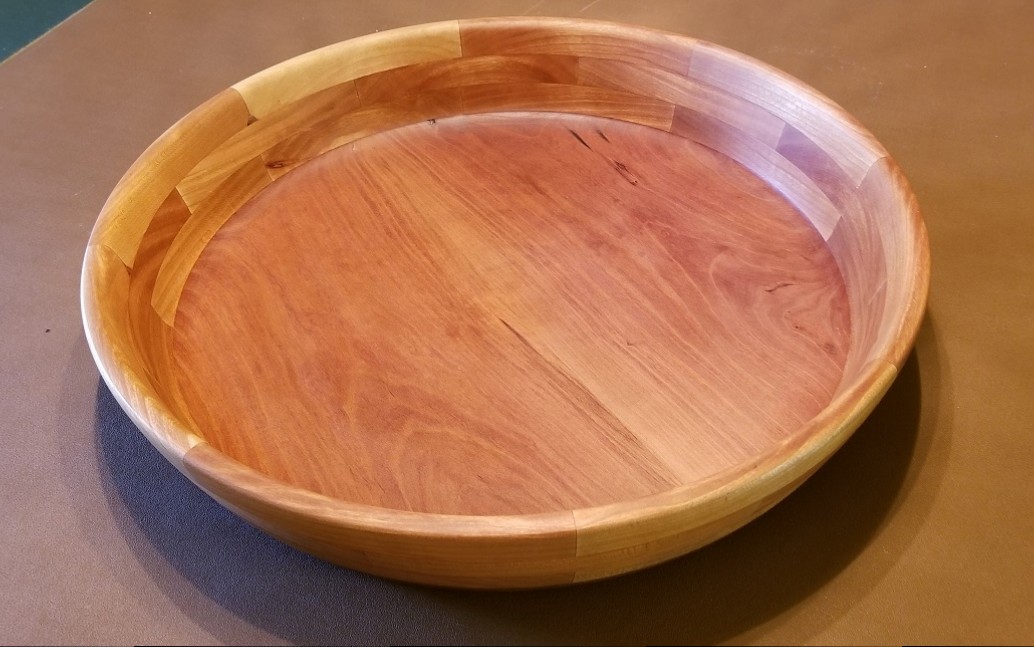

    Click image for larger version  Name:	2017-11-29 11.06.37.jpg Views:	1 Size:	134.5 KB ID:	832180
    Jon

    Phoenix AZ - It's a dry heat
    ________________________________

    We all make mistakes and I should know I've made enough of them
    techzibits.com

  • #2
    Looks GREAT! Well done!
    Hank Lee

    Experience is what you get when you don't get what you wanted!

    Comment


    • #3
      Originally posted by poolhound
      I had a commission from somebody who wanted a 16" bowl. Blanks that size are pricey and not easy to come by. I went for a segmented approach and was pretty happy with the result.

      Click image for larger version  Name:	2017-11-29 11.06.49.jpg Views:	1 Size:	91.2 KB ID:	832179
      Click image for larger version  Name:	2017-11-29 11.06.37.jpg Views:	1 Size:	134.5 KB ID:	832180
      Really nice work!

      Sent from my SM-G930V using Tapatalk

      "Like an old desperado, I paint the town beige ..." REK
      Bade Millsap
      Bulverde, Texas
      => Bade's Personal Web Log
      => Bade's Lutherie Web Log

      Comment


      • #4
        Beautiful! That should please the recipient.
        just another brick in the wall...

        Comment


        • #5
          Wow! That is so beautiful!

          16"? Is that done the way I envisage it to be - laminating different pieces of cherry for 3 layers on a base that seems to have been a single piece? For a total of 4 layers, which is then turned on the lathe?

          Must take some effort to turn that big, right?
          It is the mark of an educated mind to be able to entertain a thought without accepting it.
          - Aristotle

          Comment


          • #6
            Originally posted by radhak View Post
            Wow! That is so beautiful!

            16"? Is that done the way I envisage it to be - laminating different pieces of cherry for 3 layers on a base that seems to have been a single piece? For a total of 4 layers, which is then turned on the lathe?

            Must take some effort to turn that big, right?
            Pretty much. The base was 2 pieces glued up. I had never turned something this large before. the swing of my lathe is 16" so had to start with the headstock at one end and the piece just off the end of the lathe bed. Once I had rounded off the corners and had it just a hair under 16" at the rim I moved the headstock back to its usual position. as it wasnt too far out of balance it wasnt as hard as I imagined to turn. Here is a picture of the glued up blank.

            Click image for larger version

Name:	2017-11-24 18.30.52.jpg
Views:	1
Size:	131.9 KB
ID:	832191
            Jon

            Phoenix AZ - It's a dry heat
            ________________________________

            We all make mistakes and I should know I've made enough of them
            techzibits.com

            Comment


            • #7
              Thanks - that and the picture helped.

              It is the mark of an educated mind to be able to entertain a thought without accepting it.
              - Aristotle

              Comment


              • #8
                Jon, not sure how I missed this thread earlier - very nicely done! A new slippery slope in the segmenting subculture of woodturning...
                Bill in Buena Park

                Comment


                • #9
                  Originally posted by Bill in Buena Park View Post
                  Jon, not sure how I missed this thread earlier - very nicely done! A new slippery slope in the segmenting subculture of woodturning...
                  Thanks Bill. I definitely want to try my hand at some basic segmented and laminated bowls/vessels. Sizing and squaring the segments seems to be one of the critical aspects. I think some form of disc sanding jig will need to be the order of the day. I have also discovered how inaccurate and inconsistent my SCMS is which is rather disappointing to say the least.
                  Jon

                  Phoenix AZ - It's a dry heat
                  ________________________________

                  We all make mistakes and I should know I've made enough of them
                  techzibits.com

                  Comment


                  • #10
                    Beautiful project. Thanks for the post!

                    CWS
                    Think it Through Before You Do!

                    Comment
