    Kirby's Shop Tour

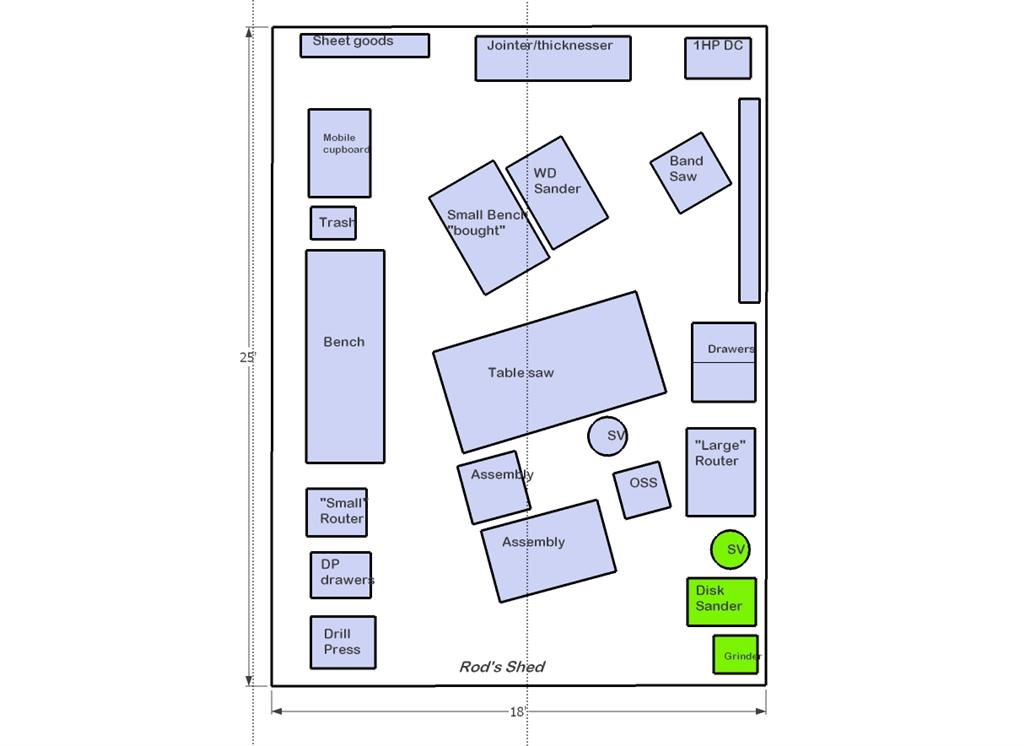

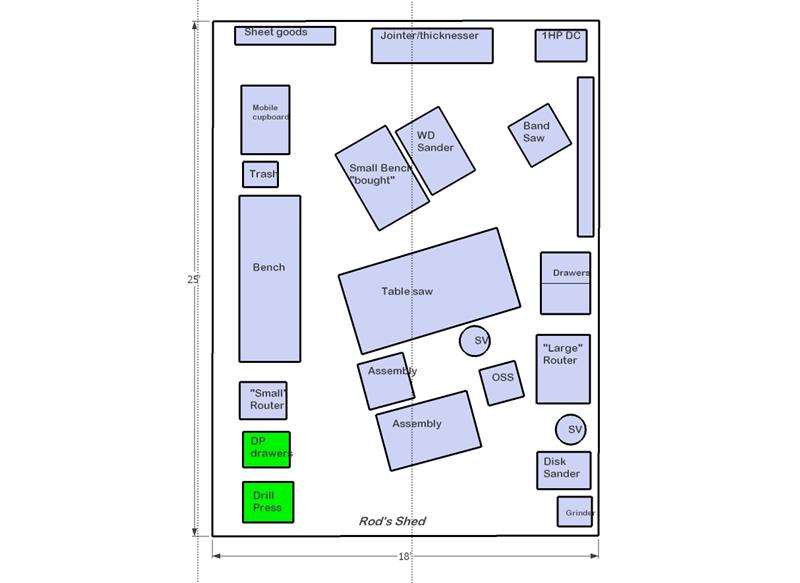

    Click image for larger version

Name:	ks01plan.jpg
Views:	2
Size:	38.0 KB
ID:	790590

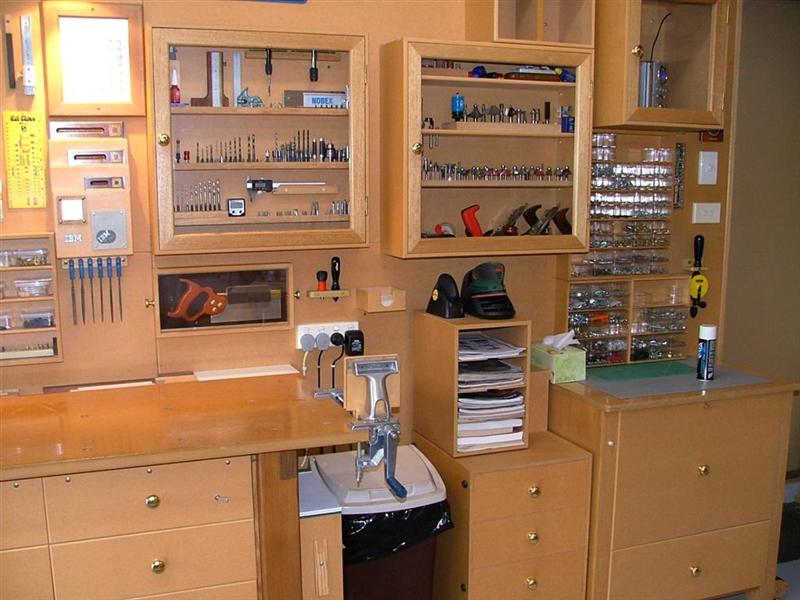

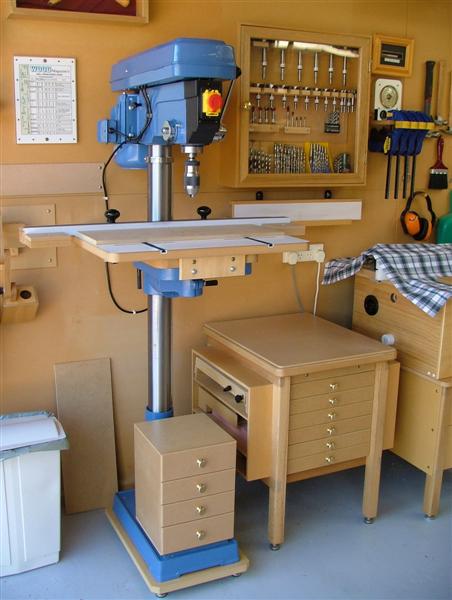

    This is actually my latest acquisition – it replaces my 17 year venerable Bench DP which sat on the stand now on the right of the DP. I was lucky I had enough room to do this – there weren’t any other options. I’m finding the flat top of the stand useful for working on both the DP and Router table.

    I always add drawers, if I can, when I’m locating any new tool – all that empty space (for me), at the bottom of the column… Most of my drawers are lined with corrugated cardboard (ridges across the drawer), helps to stop the contents moving around. I got the cardboard from my local "Pack & Send" store.

    The DP table was also used on the old DP and I discovered the only easy way to attach it was to drill/tap ¼”-20 holes into the front of the OEM table (no holes!), and use a connecting piece of plywood from the 1-1/4” MDF spacer under the table. The spacer is there to allow clearance for the handle which raises/lowers the table.
    Click image for larger version

Name:	ks011.jpg
Views:	4
Size:	48.8 KB
ID:	790586


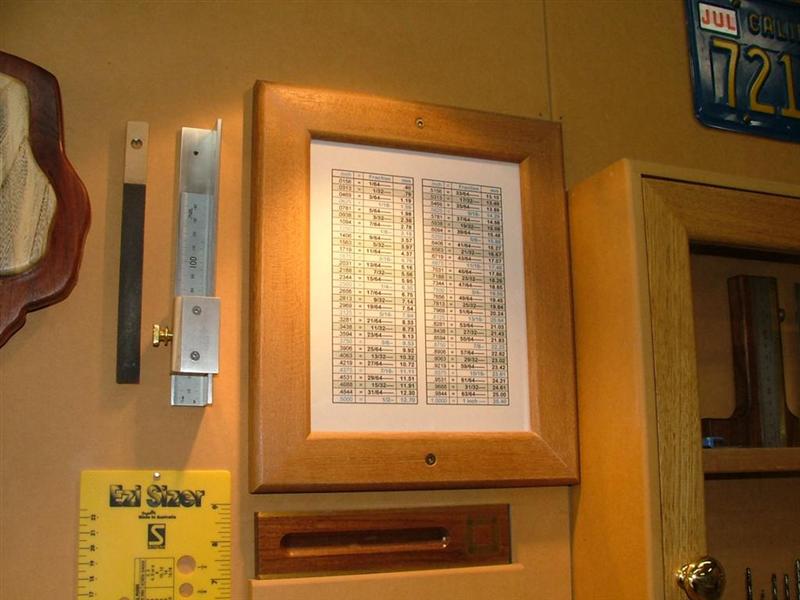

    The large clamp is in the case because it began its life in my old garage where rust was a REAL problem. I’ve only needed it twice in 18 years so it’s easy to leave it there. Not obvious, but I had to move the case up 2” to allow the DP top to open (grrrr).
    The box on the left is my mini powerboard. And of course, WOOD’s excellent speed chart.
    Click image for larger version

Name:	ks012.jpg
Views:	2
Size:	64.0 KB
ID:	790587


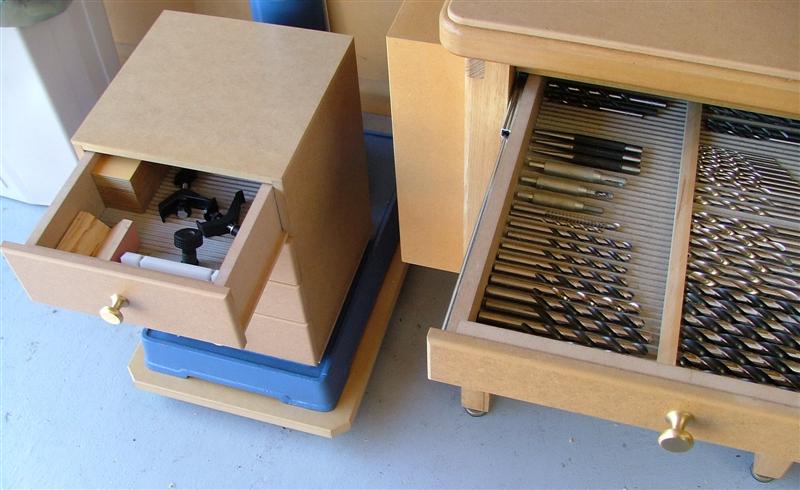

    I have a tendency to “collect” drill bits
    Click image for larger version

Name:	ks013.jpg
Views:	3
Size:	66.7 KB
ID:	790588

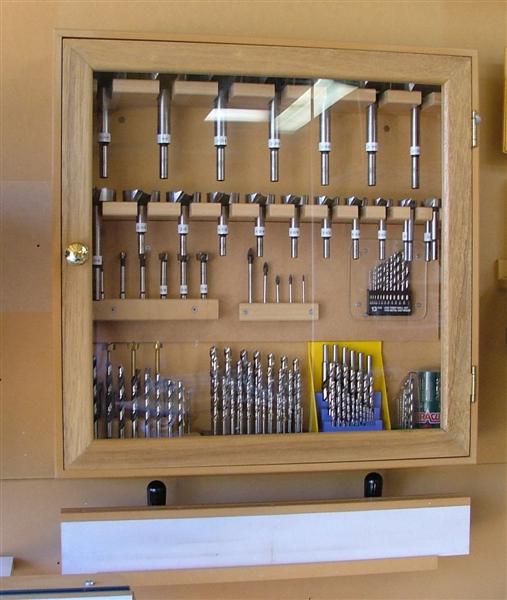

    My Drill bit cabinet contains what you would expect – inch and metric bits, forstners, “spade” bits for glass/ceramics. The “stacked” forstners on the right have an 18mm and 30mm in front of the inch ones. My tall DP fence lives under the cabinet.
    Click image for larger version

Name:	ks014.jpg
Views:	3
Size:	52.1 KB
ID:	790589


    BTW If you notice any (small) holes in the MDF walls or pale “blank” spaces anywhere in the Shed, it’s because I seem to be constantly moving things. Also, if you see any ”empty” ¼” MDF pieces on the walls they are covering LARGE ugly holes.
    Coming up - Kirby’s Shed: 2. “Small” Router table.

    WARNING – you may notice some dust.

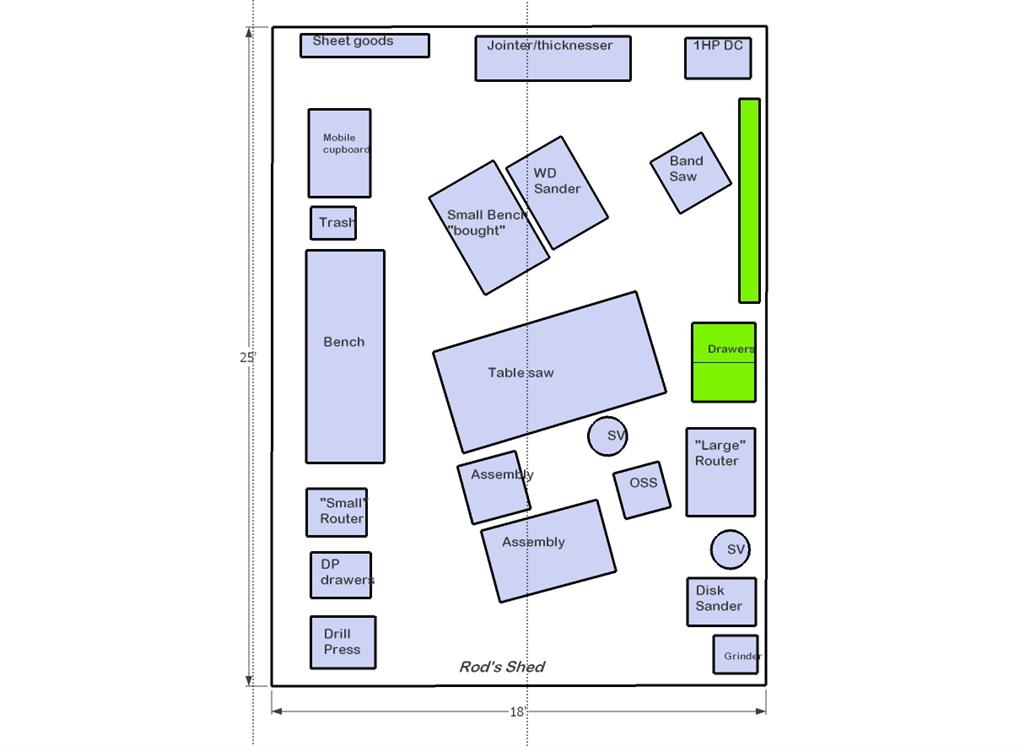

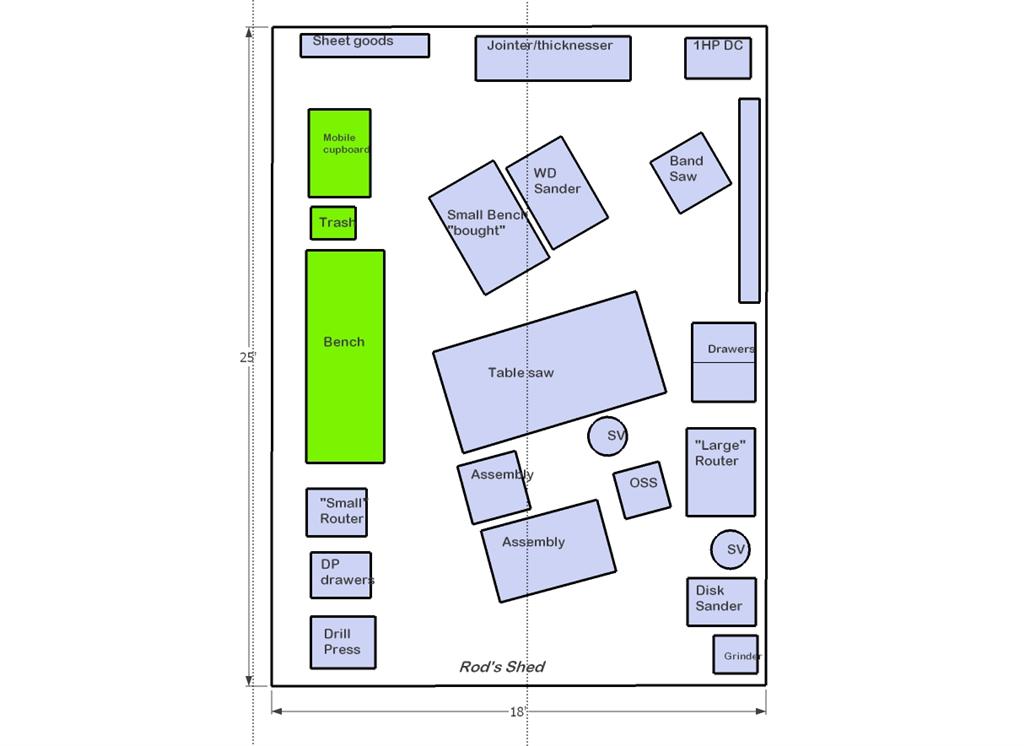

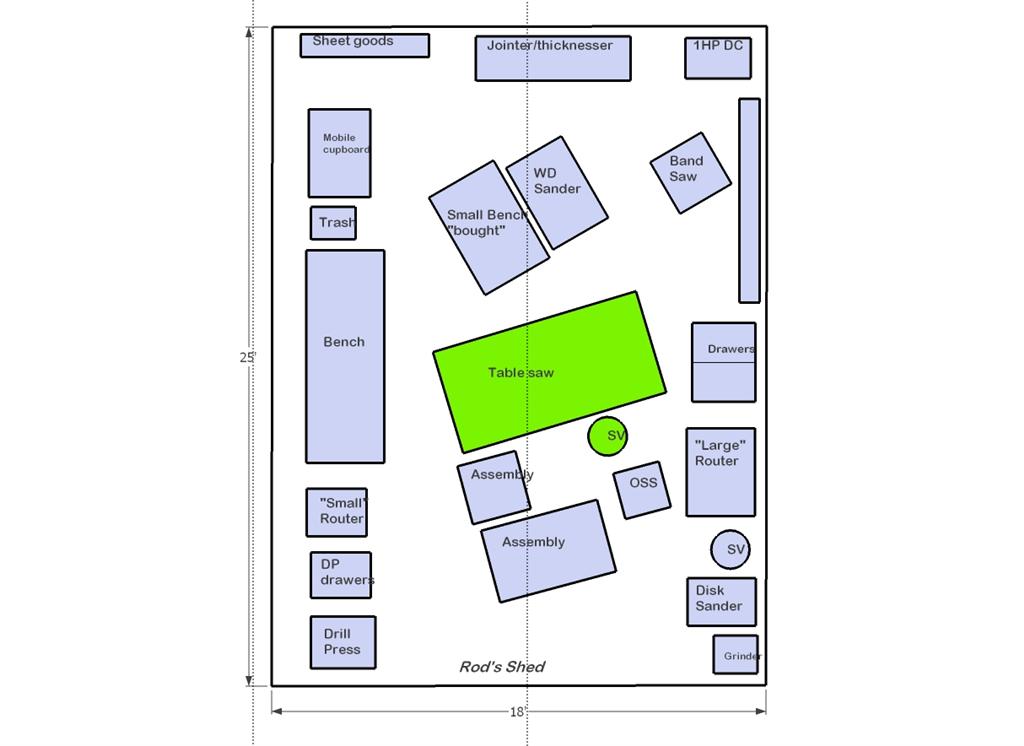

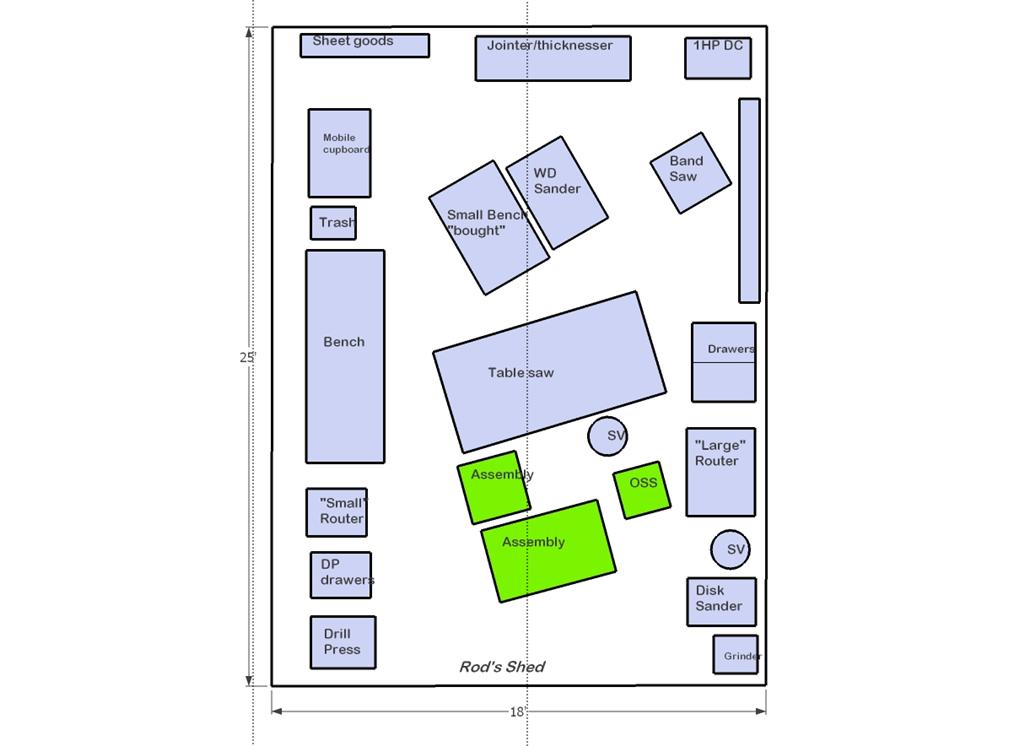

    Edit - Added floor plan - suggestion from Loring - thanks
    Last edited by Thom2; 04-28-2007, 08:56 PM.
    Downunder ... 1" = 25.4mm
  • RodKirby
    Veteran Member
    • Dec 2002
    • 3136
    • Melbourne, Victoria, Australia.
    • Mao Shan TSC-10RAS

    #2
    Kirby's Shop Tour

    Click image for larger version

Name:	ks02Plan.jpg
Views:	2
Size:	38.1 KB
ID:	781054

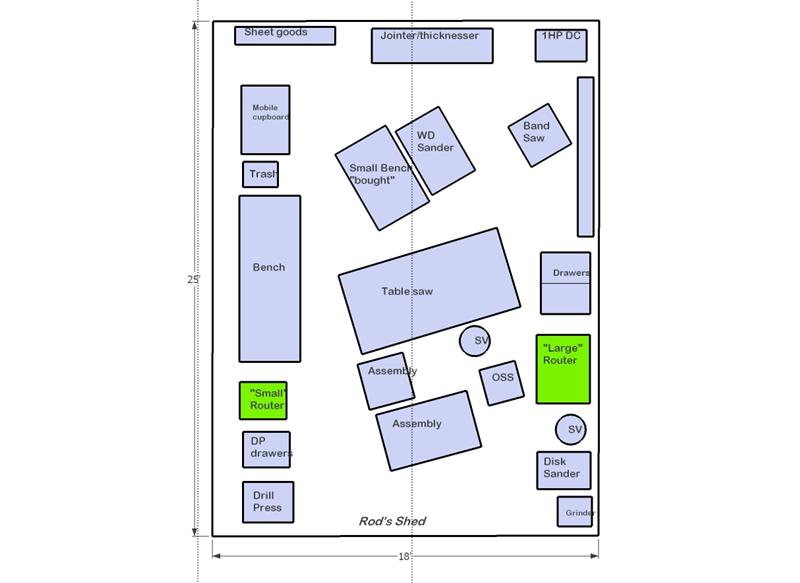

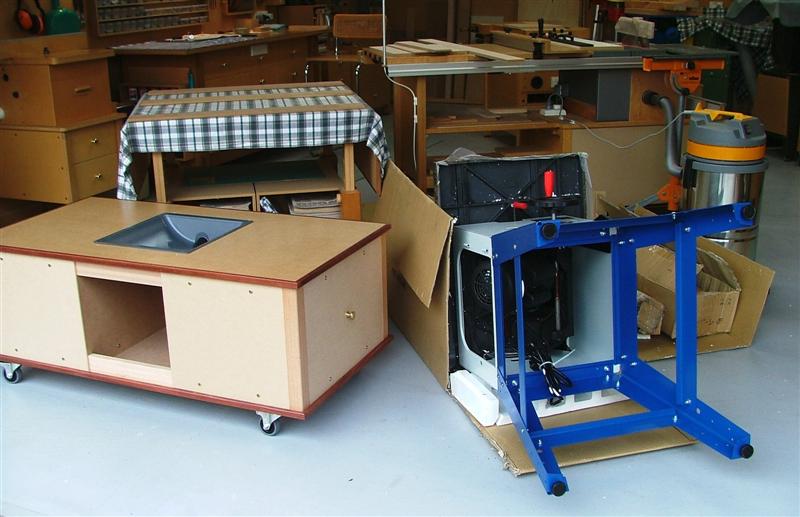

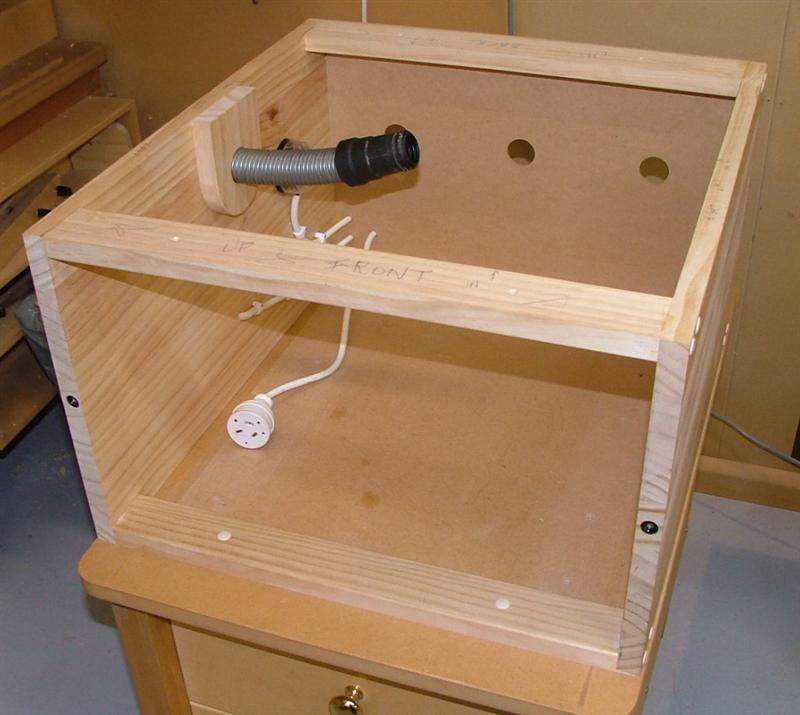

    Small Router Table - WIP
    Click image for larger version

Name:	newrtblwip.jpg
Views:	2
Size:	63.1 KB
ID:	781060Click image for larger version

Name:	tritondc1.jpg
Views:	2
Size:	62.9 KB
ID:	781061

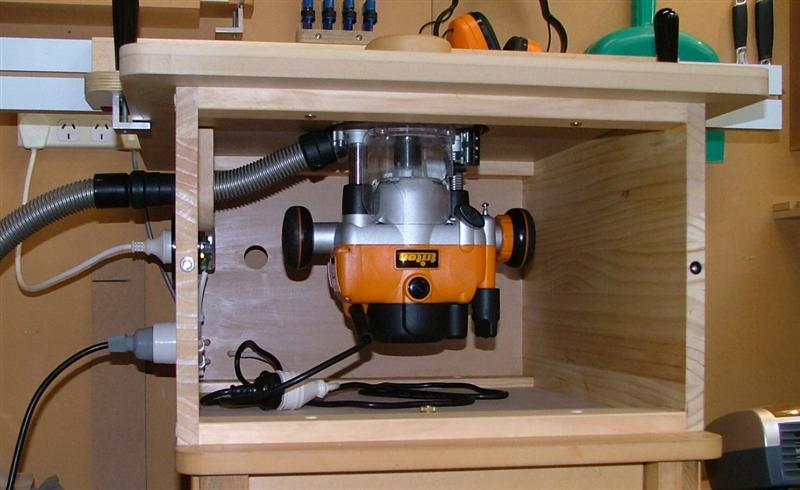

    I’ve decided to post these together – they are fundamentally the same.
    “S” = Small router/table, “L” = Large router/table. Paired Pics below show S on the left, L on the right.

    Router: S=Triton 2HP, L= Triton 3-1/4HP Both ½”, above table bit change.

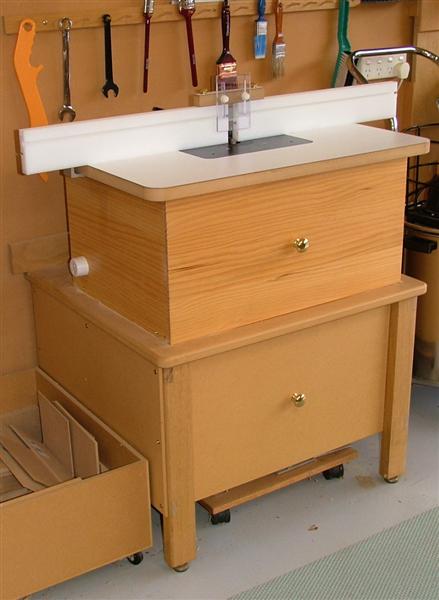

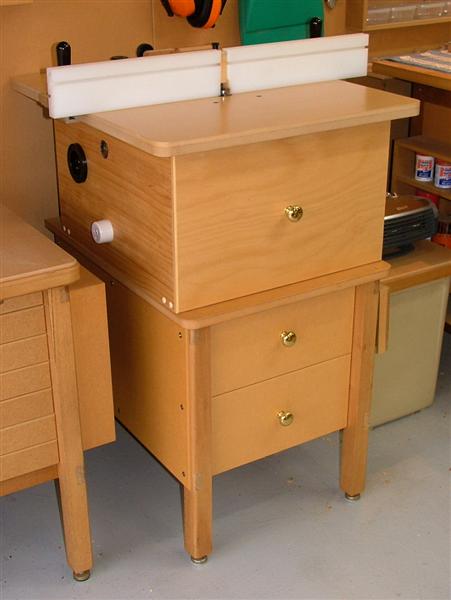

    The tables are simply ¾” clear pine boxes with magnet caught fronts. Side entry Power-in socket, Router and Shopvac connection on/off together. Side entry Shopvac port.

    S table = 23” wide x 28”deep laminated MDF – 3/8” on 5/8”, no insert, router bolted directly on top MDF layer (hole cut in lower MDF layer to fit the base). Normally has a 1/8” roundover bit loaded.

    L table = 30” wide x 22” deep 1” MDF, laminate top and bottom, Phenolic plate + inserts (Woodhaven). Normally has a 1”dia. upcut spiral bit to handle all my rabbeting stuff.

    Click image for larger version

Name:	srt.jpg
Views:	2
Size:	34.7 KB
ID:	781052Click image for larger version

Name:	lrt.jpg
Views:	2
Size:	38.2 KB
ID:	781053

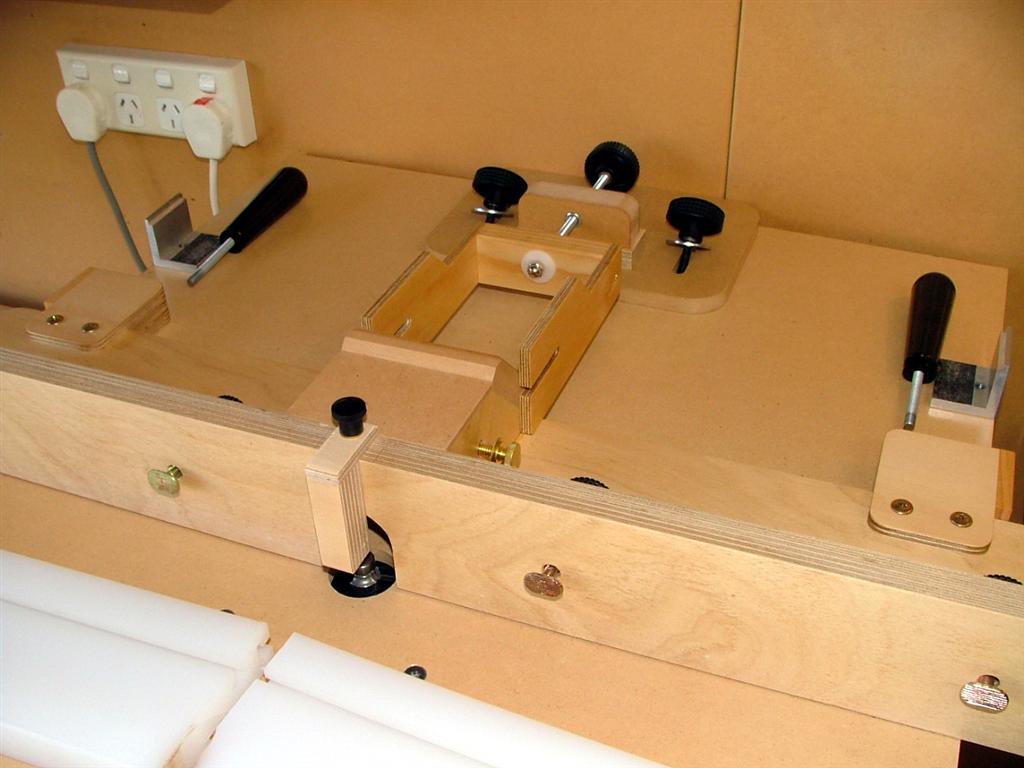

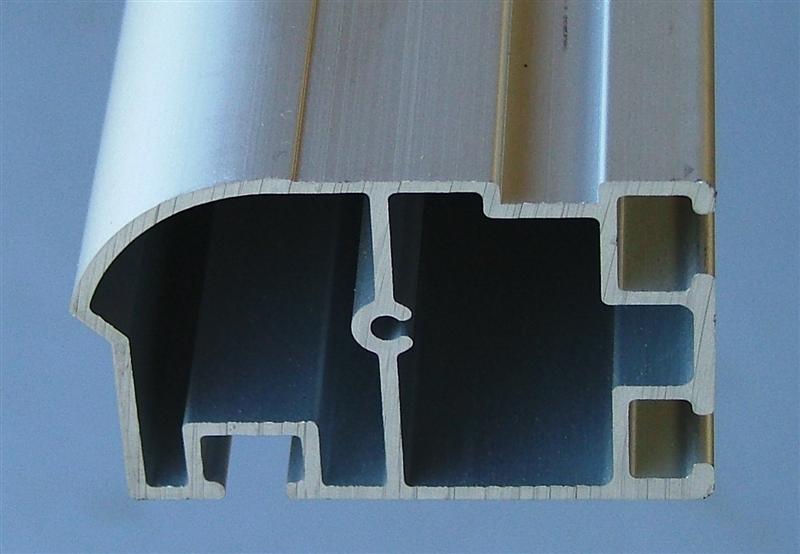

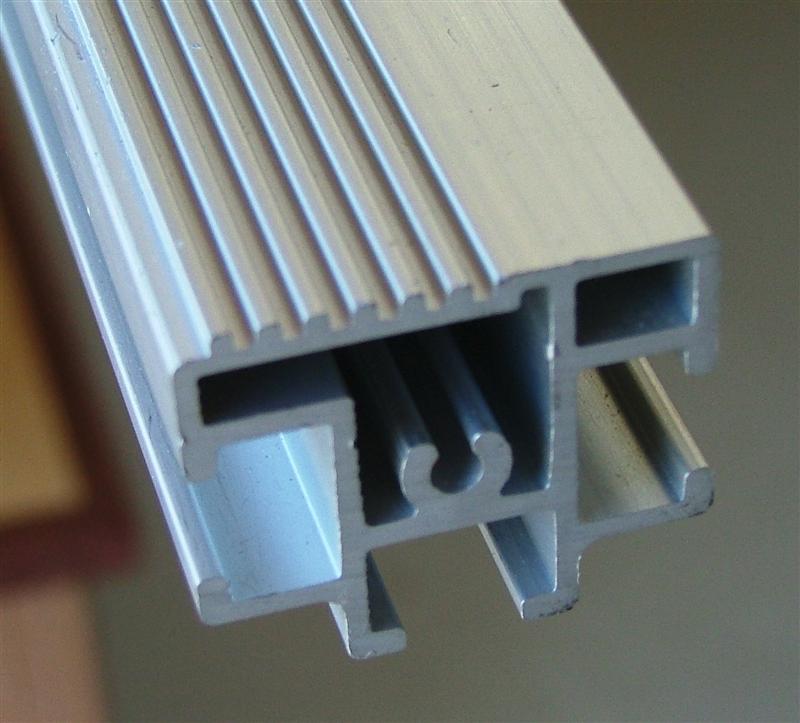

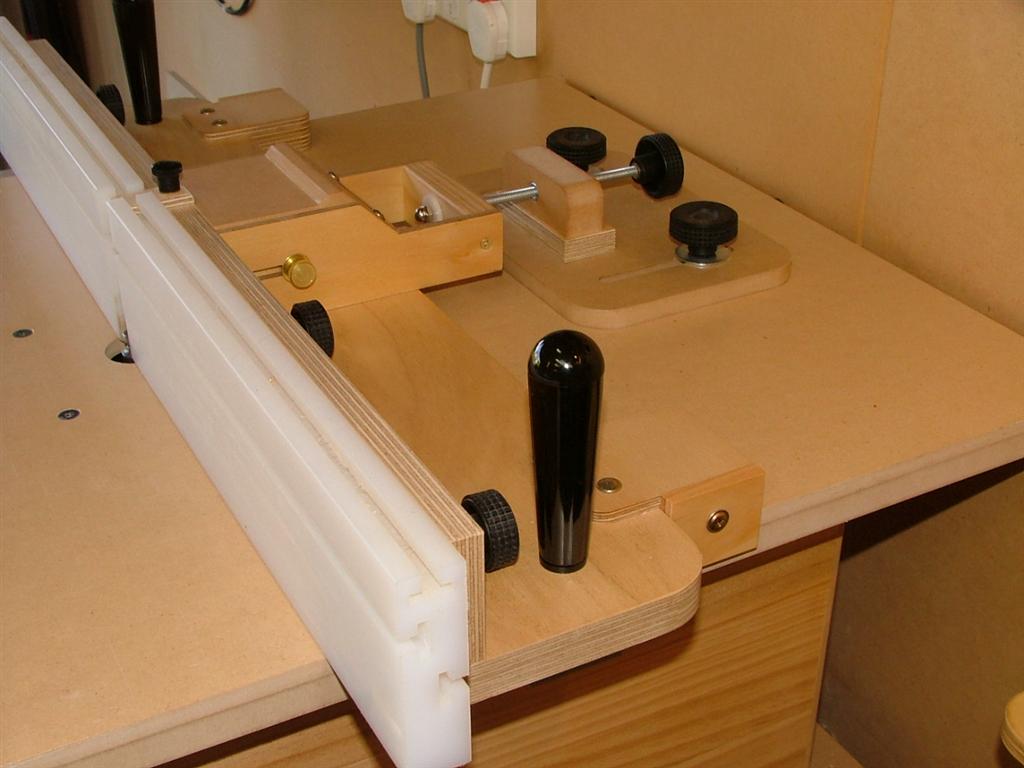

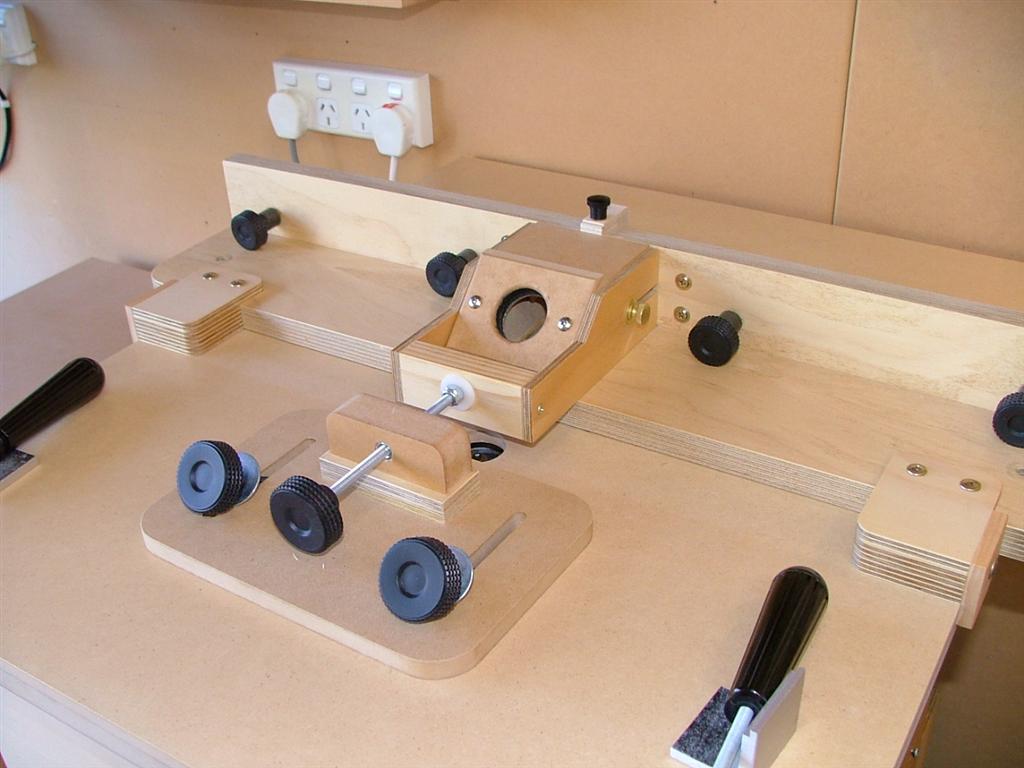

    Fences: Split UHMWPE with a slot for rear mounting and jig slots top and front.
    The micro-adjusts look complicated but really are not – indispensible IMHO. Both based on an idea from Pat Warner. Side clamps are from Woodhaven.

    L fence began its life on a smaller Woodhaven table. When I made the larger table, I had to extend the ¼” aluminum angle, so it looks rather messy – but it works!

    Click image for larger version

Name:	sfence.jpg
Views:	2
Size:	53.9 KB
ID:	781055
    Click image for larger version

Name:	lfence.jpg
Views:	2
Size:	50.0 KB
ID:	781056Click image for larger version

Name:	fprofile.jpg
Views:	2
Size:	20.6 KB
ID:	781057
    Click image for larger version

Name:	sfrear.jpg
Views:	2
Size:	61.5 KB
ID:	781058Click image for larger version

Name:	lfrear.jpg
Views:	2
Size:	45.4 KB
ID:	781059
    Last edited by Thom2; 04-28-2007, 09:03 PM.
    Downunder ... 1" = 25.4mm

    Comment

    • RodKirby
      Veteran Member
      • Dec 2002
      • 3136
      • Melbourne, Victoria, Australia.
      • Mao Shan TSC-10RAS

      #3
      Kirby's Shop Tour

      As requested:

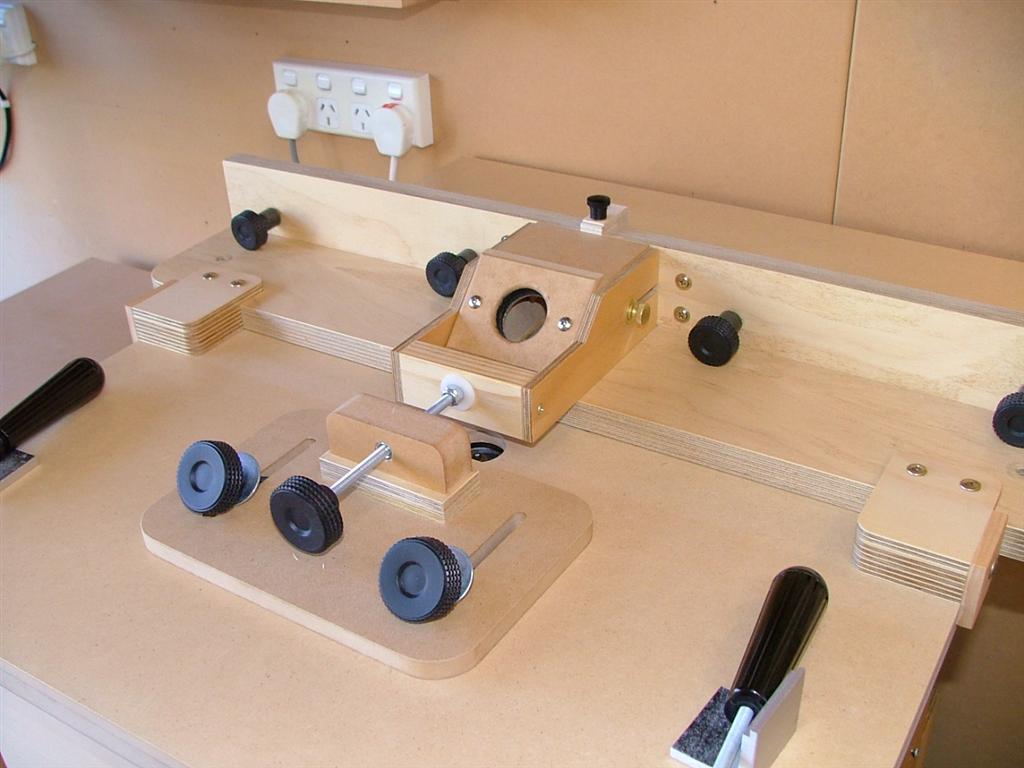

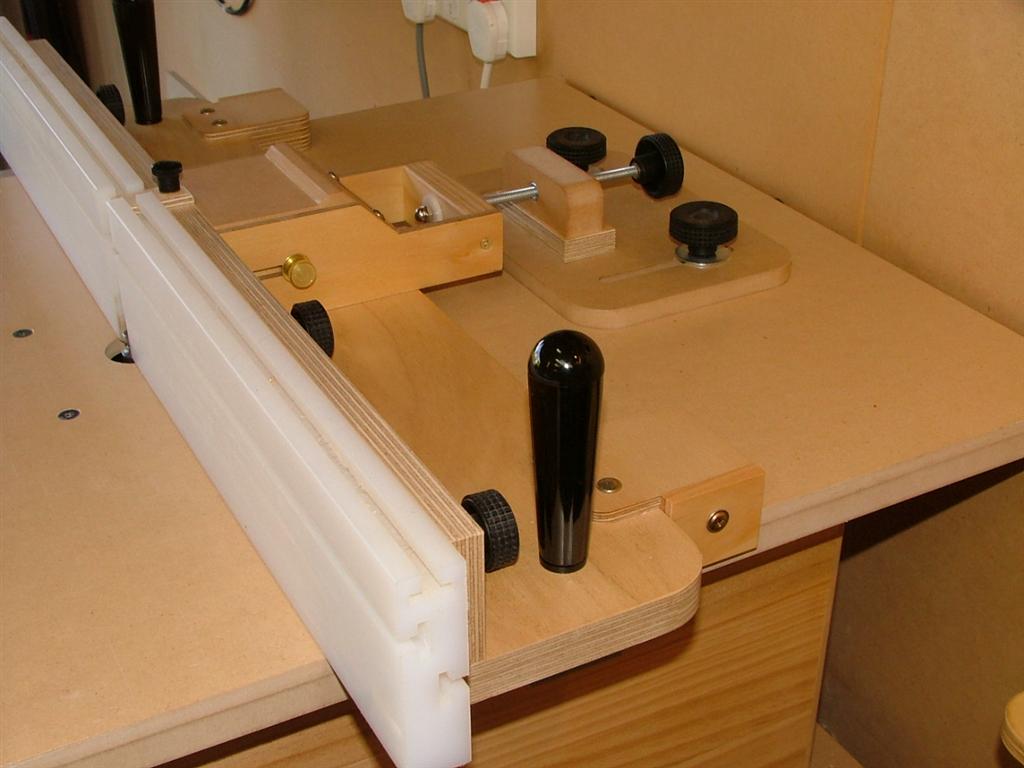

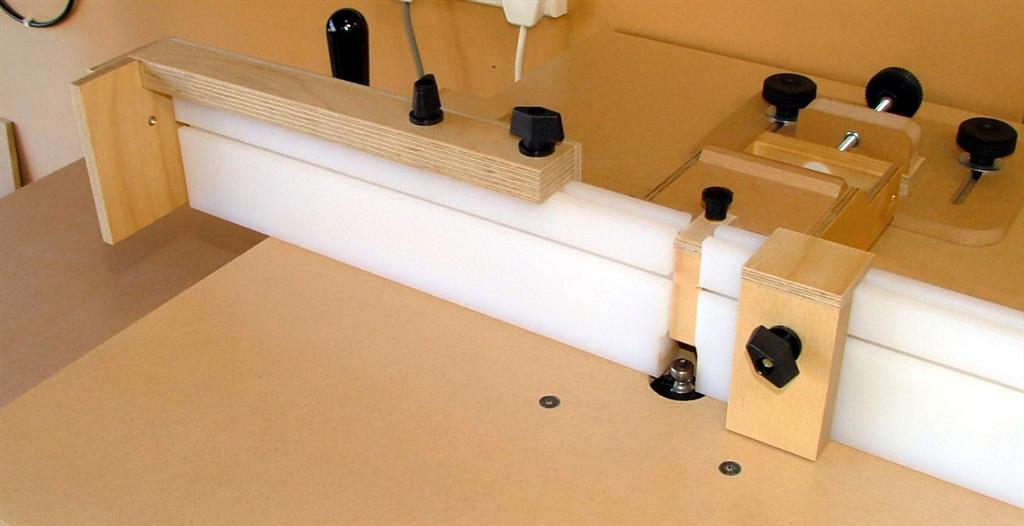

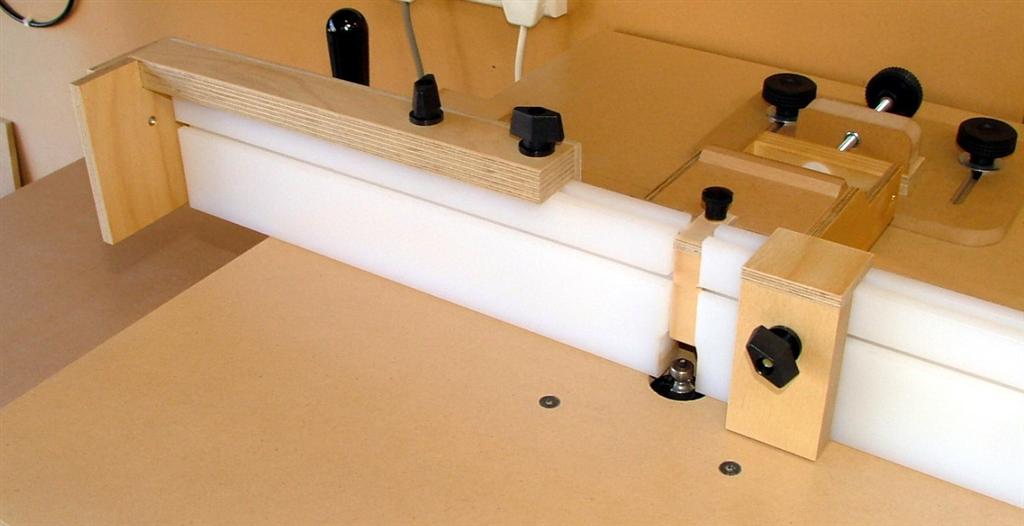

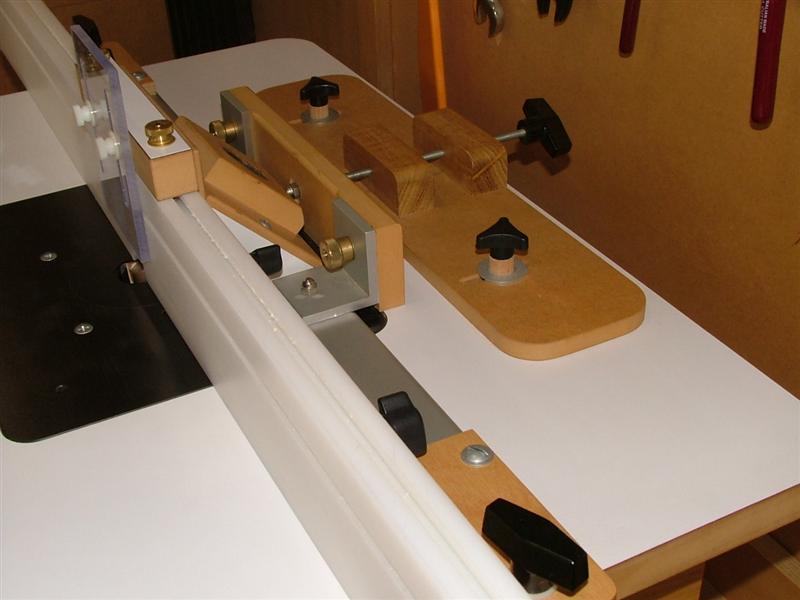

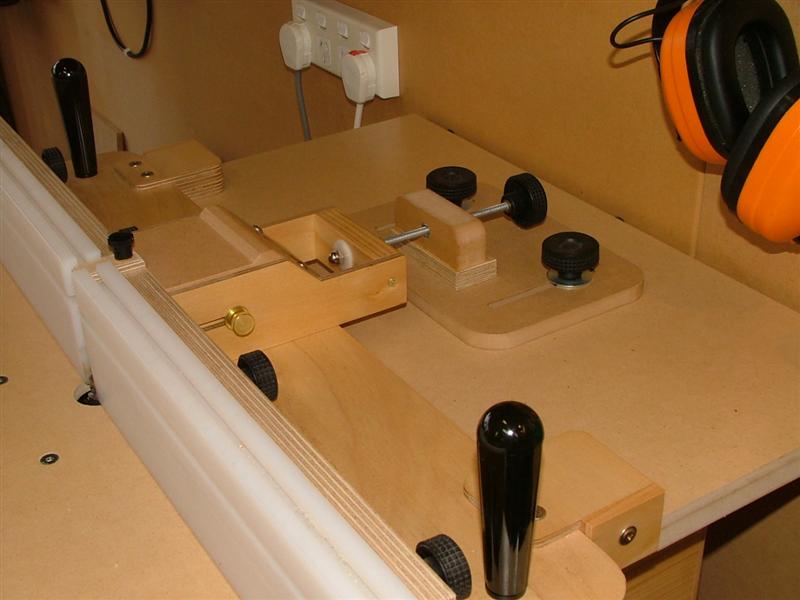

      This is my normal setup (Small Router Table fence), 1/4" Roundover bit.

      Click image for larger version

Name:	rfnormal.jpg
Views:	2
Size:	75.5 KB
ID:	790478

      This is an "exploded" view. Micro-adjust disconnected - can be removed to allow more space between the fence and the bit. The plywood "hook" over the fence front is simply to block the gap between the fence faces to aid DC. I also attached guides on each side of the base, to keep the fence from swinging during micro adjust.

      Click image for larger version

Name:	rfbits.jpg
Views:	2
Size:	80.9 KB
ID:	790479

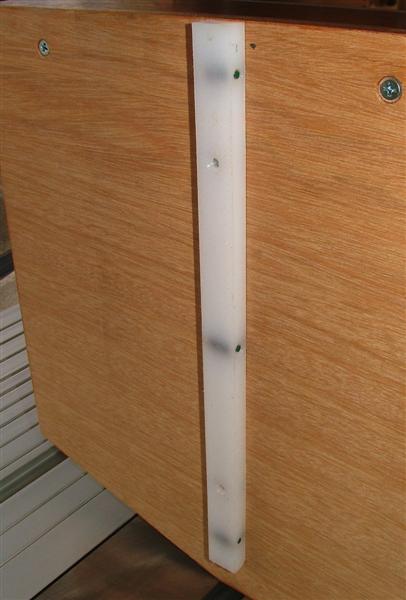

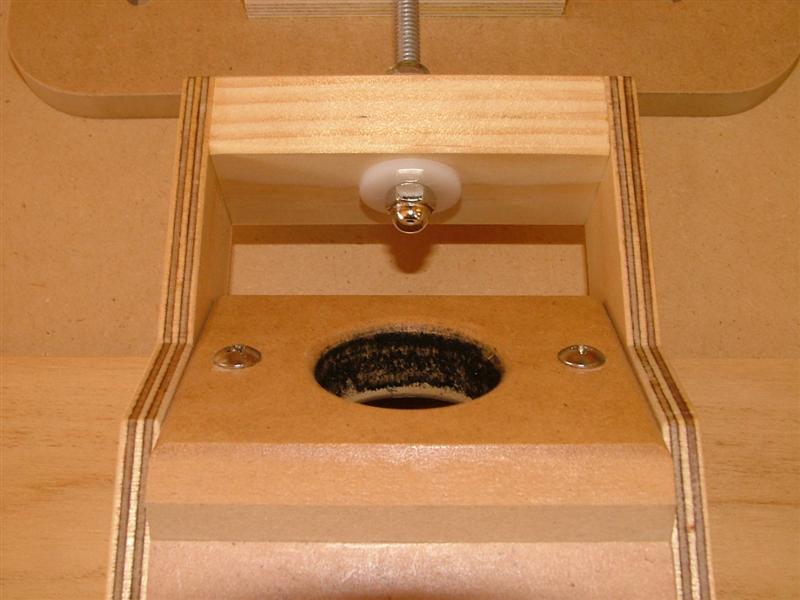

      Rear view: Micro-adjust now attached. Screws on the fence front (alongside the DC port), are only cosmetic - two on each side where I had a temporary DC port - yeah I know, but the holes looked ugly!

      Click image for larger version

Name:	rfrear.jpg
Views:	2
Size:	82.8 KB
ID:	790480

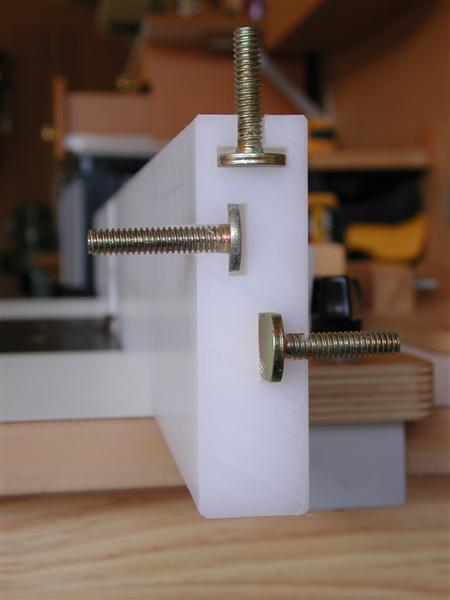

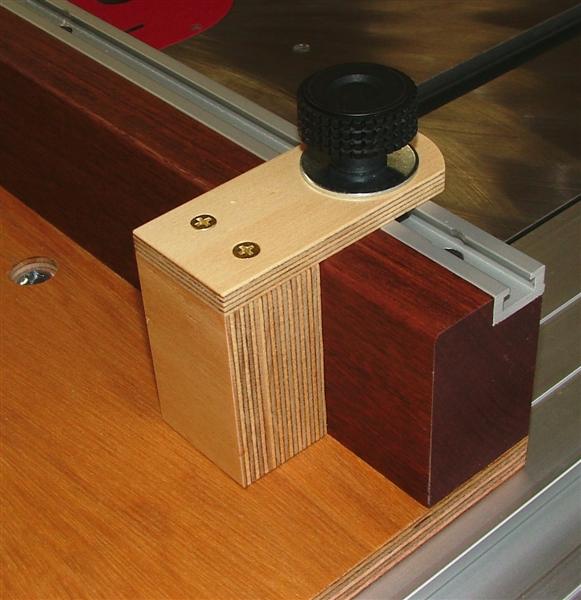

      Example of the stops I regularly use (in pairs). The left one is mounted in the top slot and gives me an extendable stop. The right one is what I call a regular stop, mounted in the front slot.

      Click image for larger version

Name:	rfstops.jpg
Views:	2
Size:	54.2 KB
ID:	790481

      BTW I have posted larger pics than I normally do - please let me know if this gives anyone a problem.
      Attached Files
      Downunder ... 1" = 25.4mm

      Comment

      • RodKirby
        Veteran Member
        • Dec 2002
        • 3136
        • Melbourne, Victoria, Australia.
        • Mao Shan TSC-10RAS

        #4
        Kirby's Shop Tour

        I wont include many comments now - I suspect there will be a few questions I'll pick as we go...

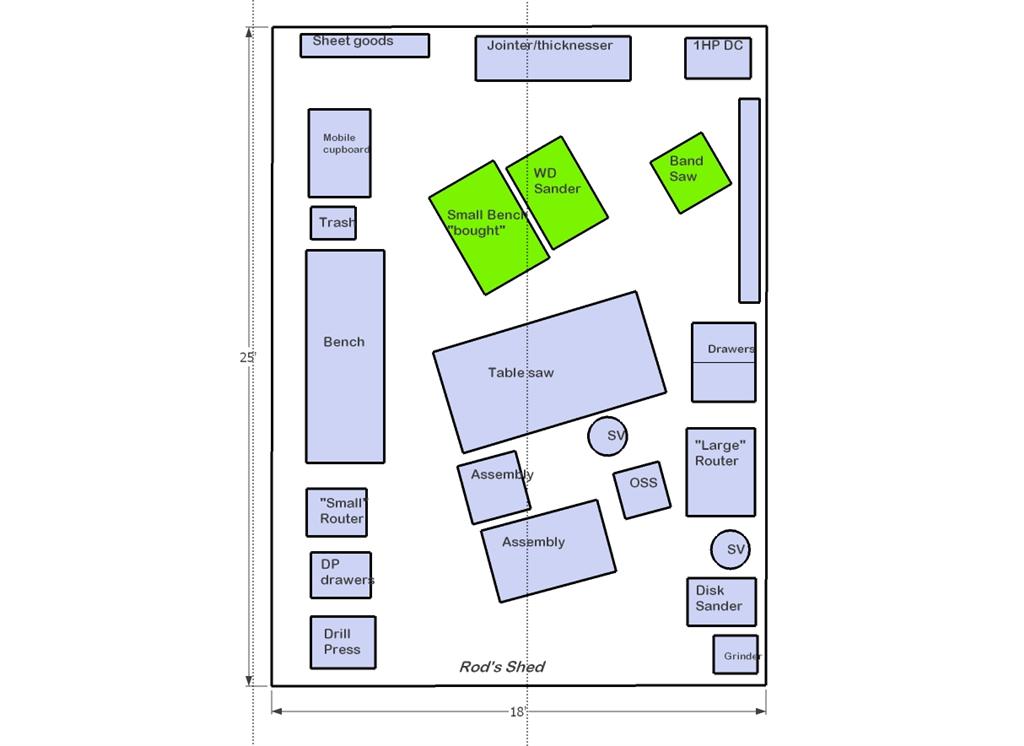

        Click image for larger version

Name:	ks03plan.jpg
Views:	2
Size:	56.0 KB
ID:	790483

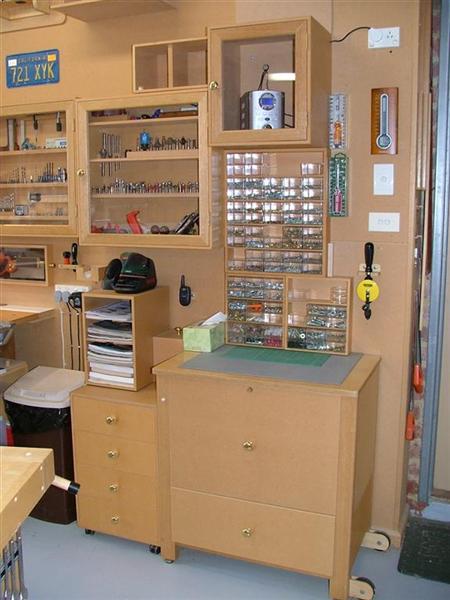

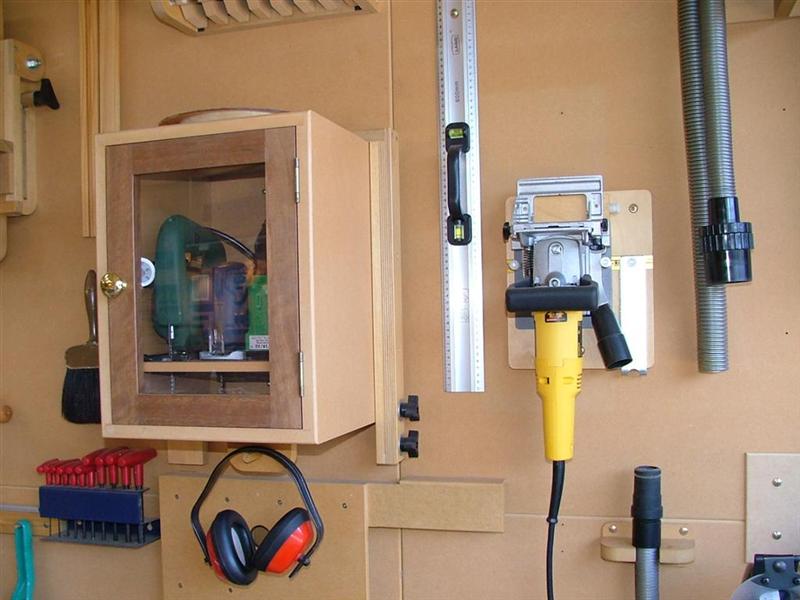

        Here we go...

        Click image for larger version

Name:	ks0301.jpg
Views:	3
Size:	81.8 KB
ID:	790484Click image for larger version

Name:	ks0302.jpg
Views:	2
Size:	78.2 KB
ID:	790485
        Click image for larger version

Name:	ks0303.jpg
Views:	2
Size:	81.9 KB
ID:	790486Click image for larger version

Name:	ks0304.jpg
Views:	2
Size:	83.0 KB
ID:	790487

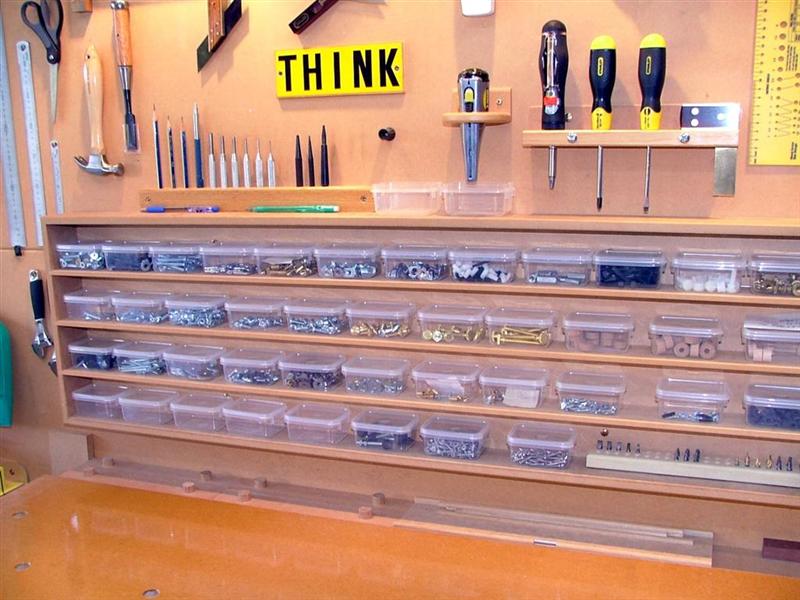

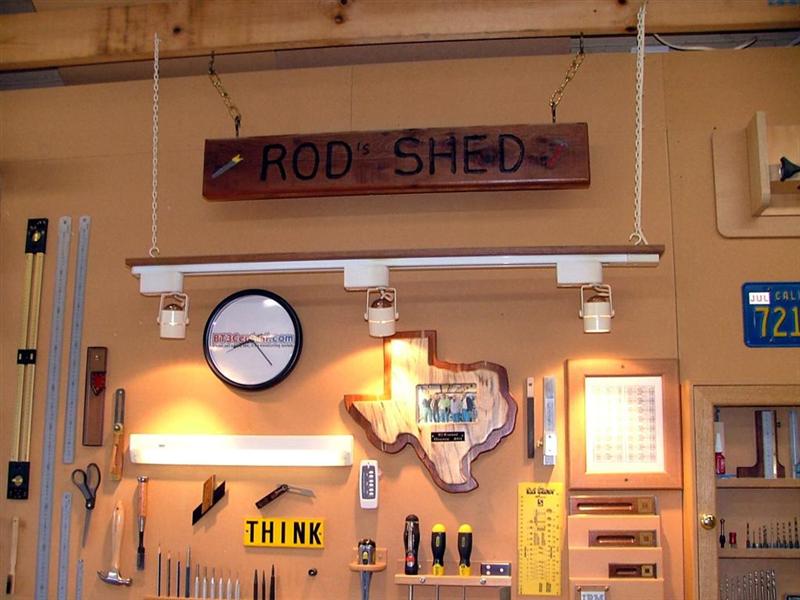

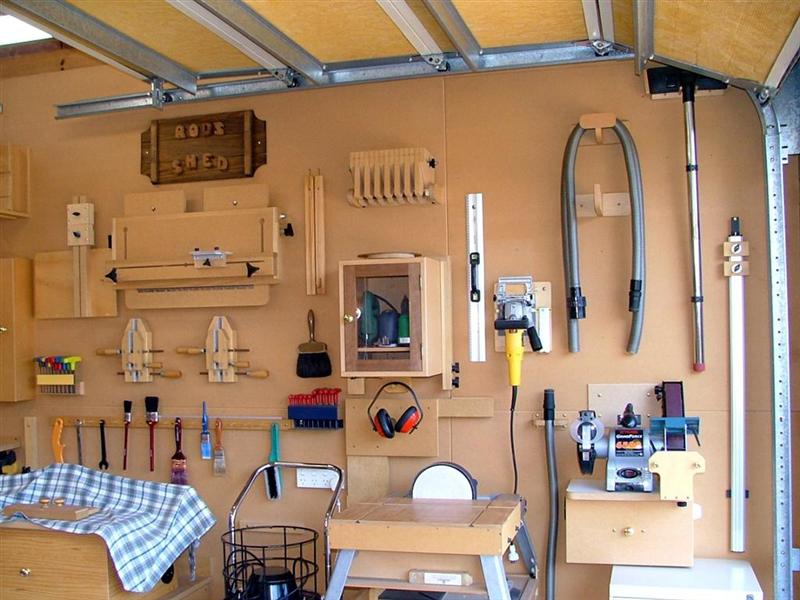

        Forum member "Rainshadow" (Randy Atkinson), very kindly made the sign and sent it to me some years ago - been a while since I've seen a post from him

        Click image for larger version

Name:	ks0305.jpg
Views:	2
Size:	48.4 KB
ID:	790488Click image for larger version

Name:	ks0306.jpg
Views:	2
Size:	75.8 KB
ID:	790489

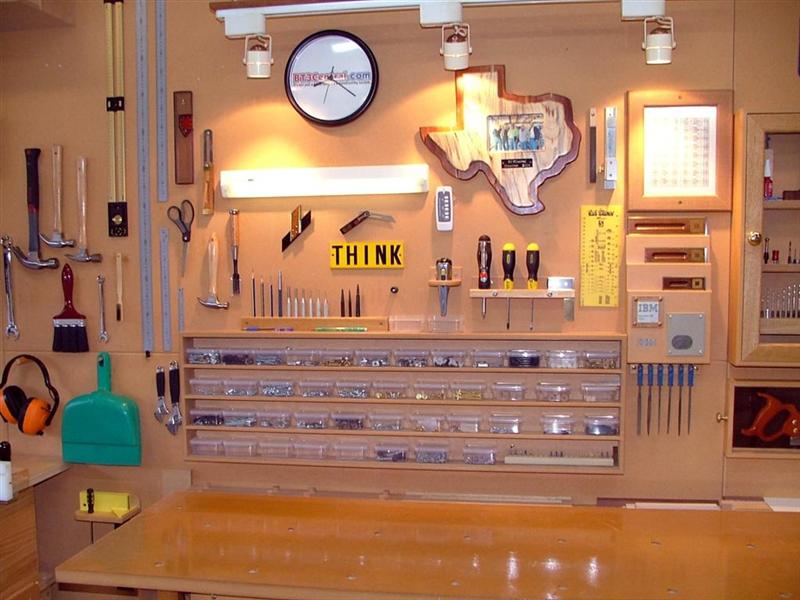

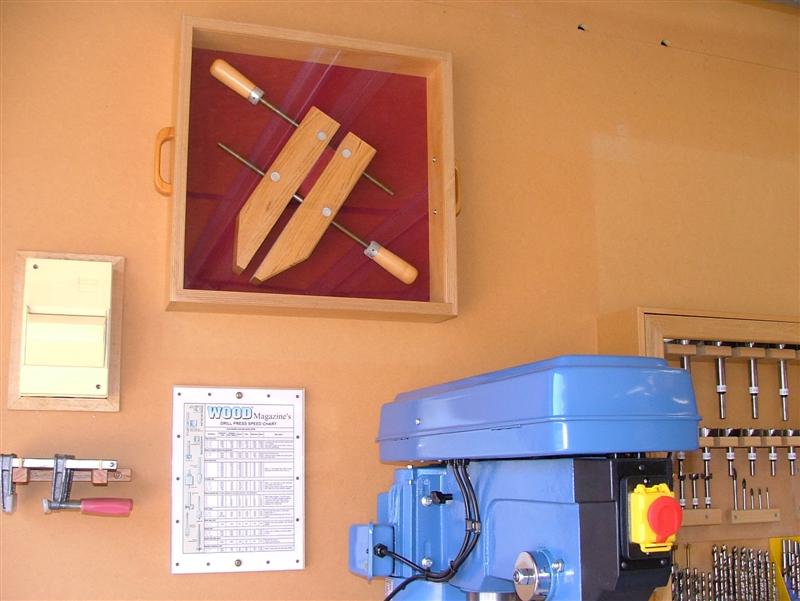

        The beautiful frame Pappy presented to me in Houston in 2004 - Don, Pappy, Jim, Kirby, and Loring - thanks agin guys

        Click image for larger version

Name:	ks0308.jpg
Views:	2
Size:	68.2 KB
ID:	790490

        Closer:

        Click image for larger version

Name:	ks0307.jpg
Views:	2
Size:	91.1 KB
ID:	790491Click image for larger version

Name:	ks0309.jpg
Views:	2
Size:	66.1 KB
ID:	790492
        Attached Files
        Downunder ... 1" = 25.4mm

        Comment

        • RodKirby
          Veteran Member
          • Dec 2002
          • 3136
          • Melbourne, Victoria, Australia.
          • Mao Shan TSC-10RAS

          #5
          Kirby's Shop Tour

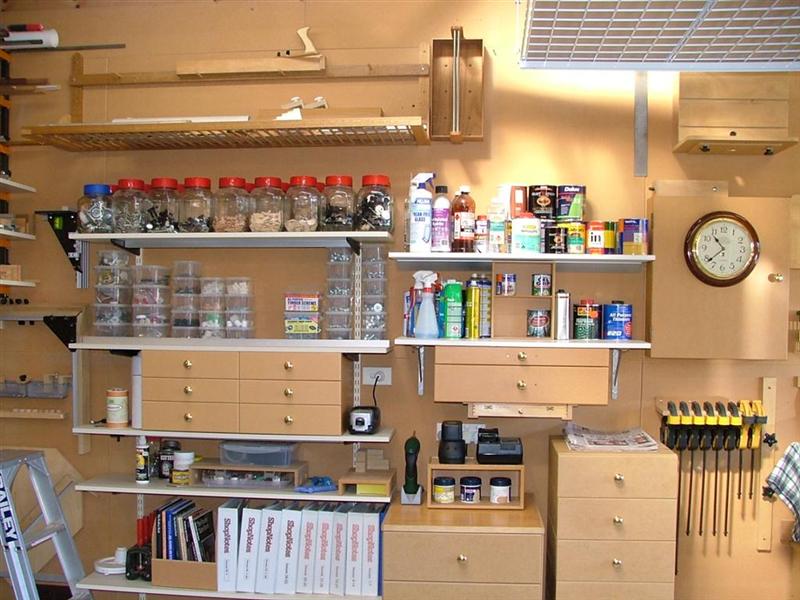

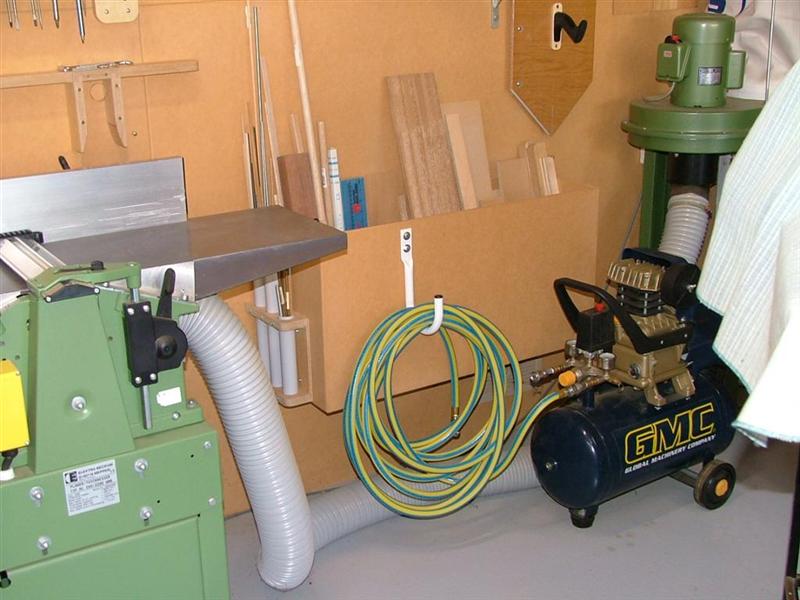

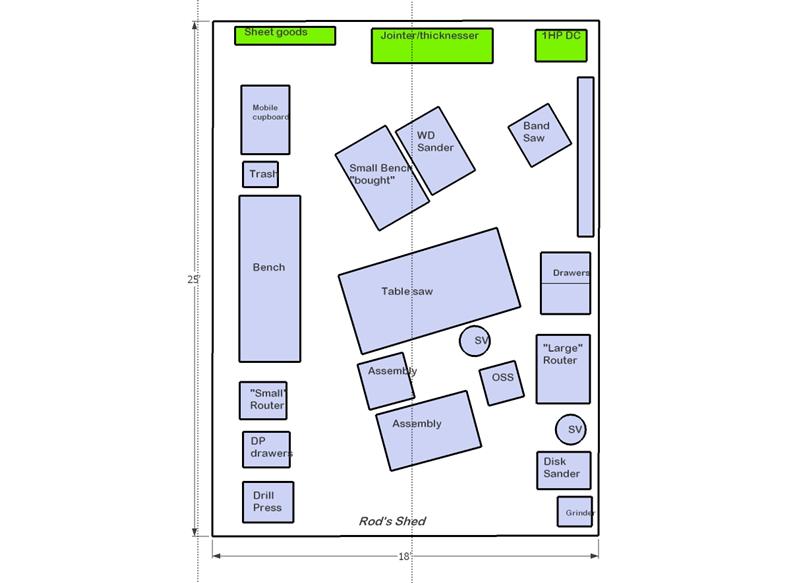

          These pics were a bit difficult to take - couldn't get back far enough.

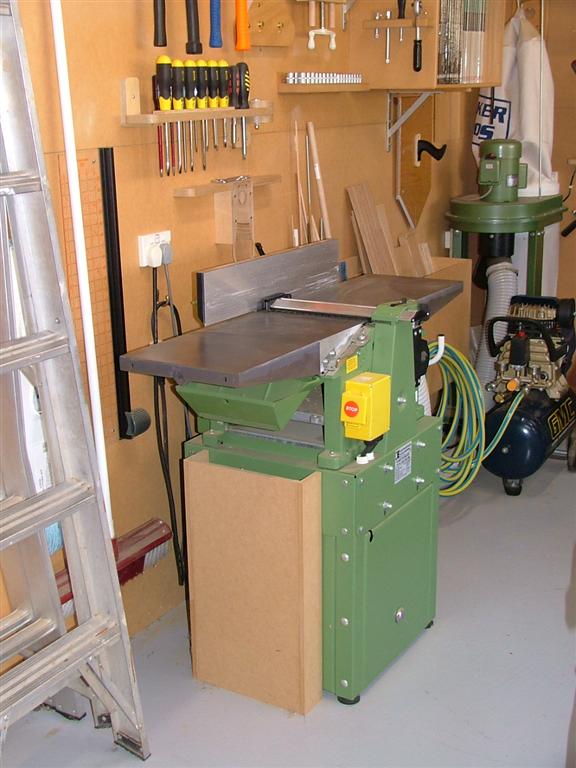

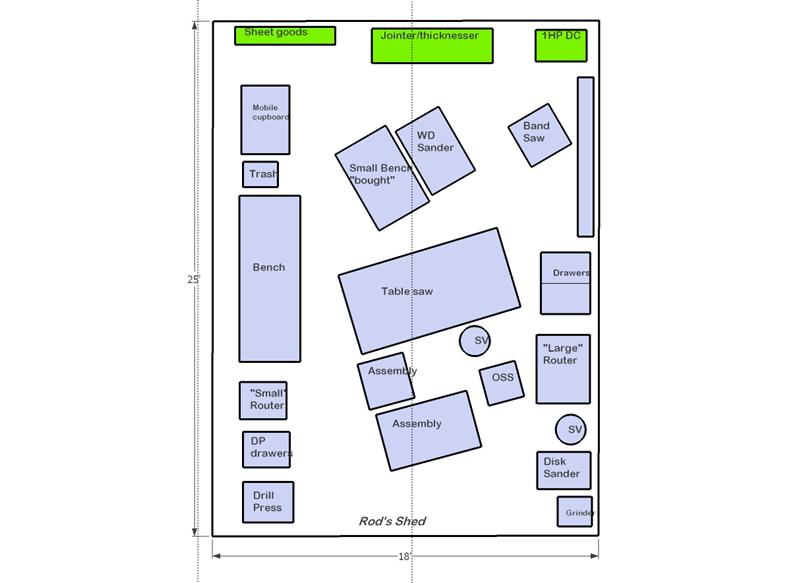

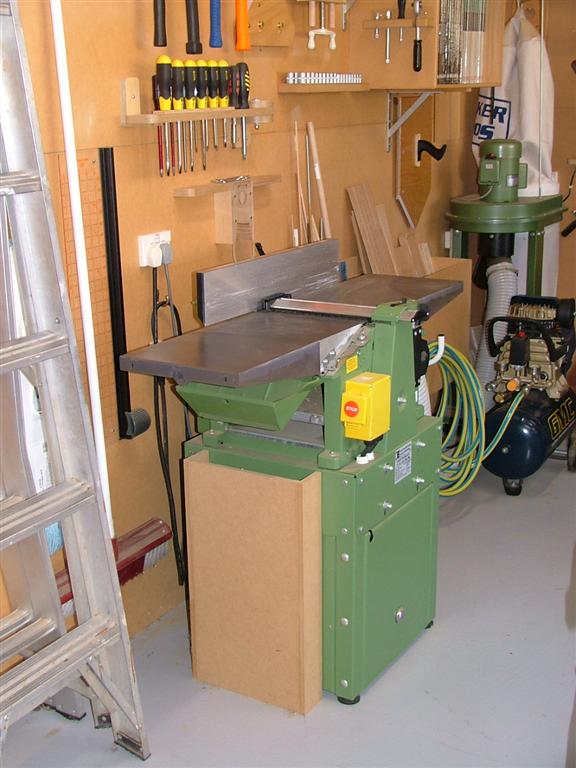

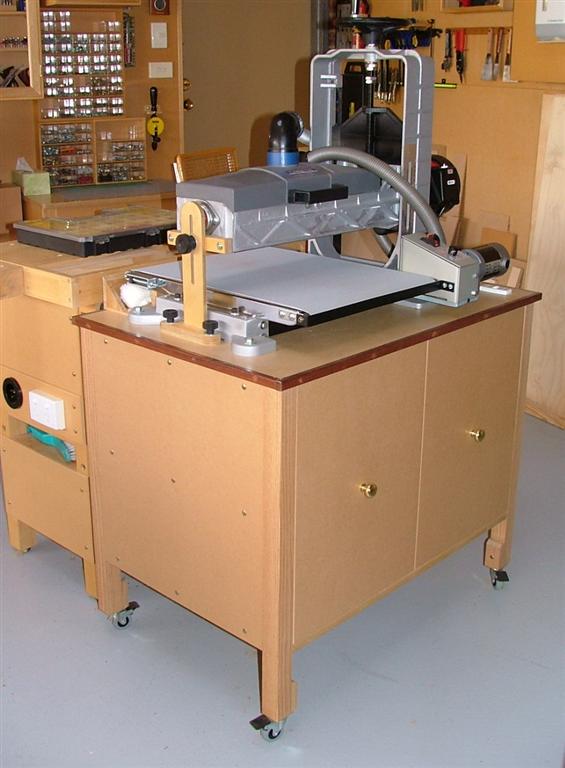

          The jointer/thicknesser is a 10" Elektra-Beckum. A luxury item for me - I've only used it about 10 times in 12 years - but essential at the time.

          Click image for larger version

Name:	ks04Plan.jpg
Views:	2
Size:	38.3 KB
ID:	790520

          Click image for larger version

Name:	ks0401.jpg
Views:	2
Size:	51.5 KB
ID:	790521Click image for larger version

Name:	ks0402.jpg
Views:	2
Size:	69.5 KB
ID:	790522
          Click image for larger version

Name:	ks0403.jpg
Views:	2
Size:	71.4 KB
ID:	790523Click image for larger version

Name:	ks0404.jpg
Views:	2
Size:	71.7 KB
ID:	790524
          Click image for larger version

Name:	ks0405.jpg
Views:	2
Size:	74.1 KB
ID:	790525Click image for larger version

Name:	ks0406.jpg
Views:	2
Size:	79.5 KB
ID:	790526
          Attached Files
          Downunder ... 1" = 25.4mm

          Comment

          • RodKirby
            Veteran Member
            • Dec 2002
            • 3136
            • Melbourne, Victoria, Australia.
            • Mao Shan TSC-10RAS

            #6
            Kirby's Shop Tour

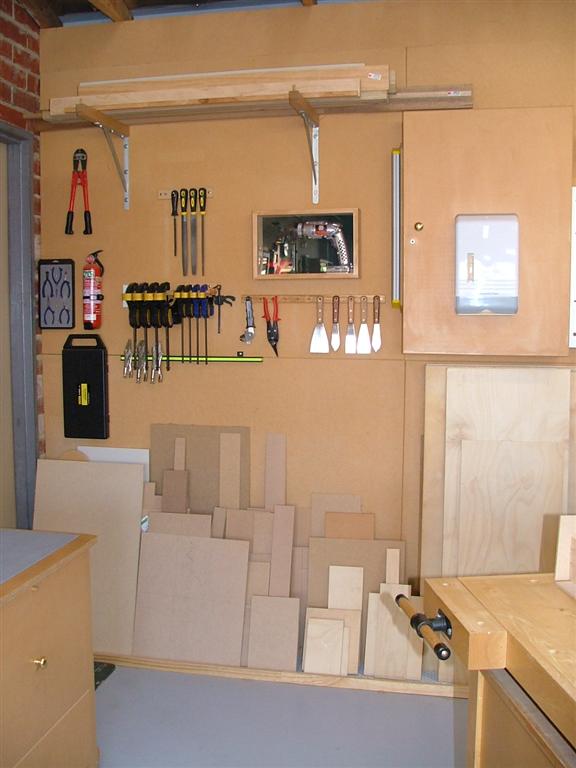

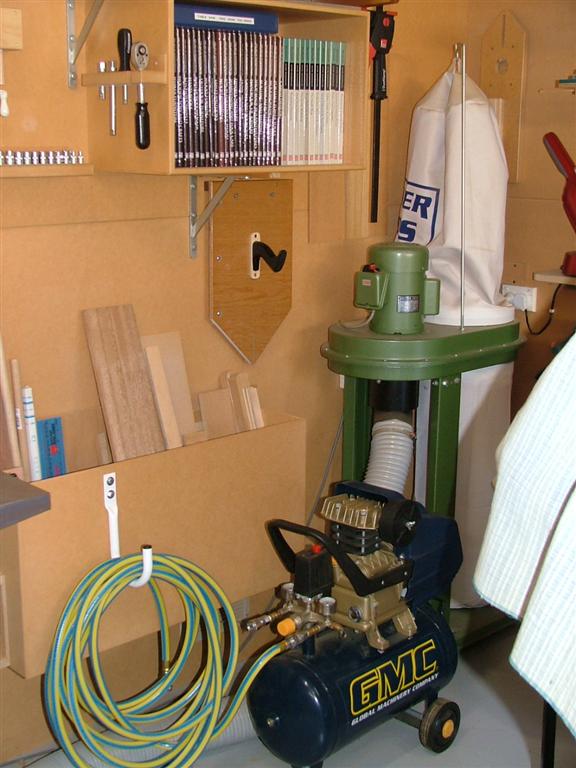

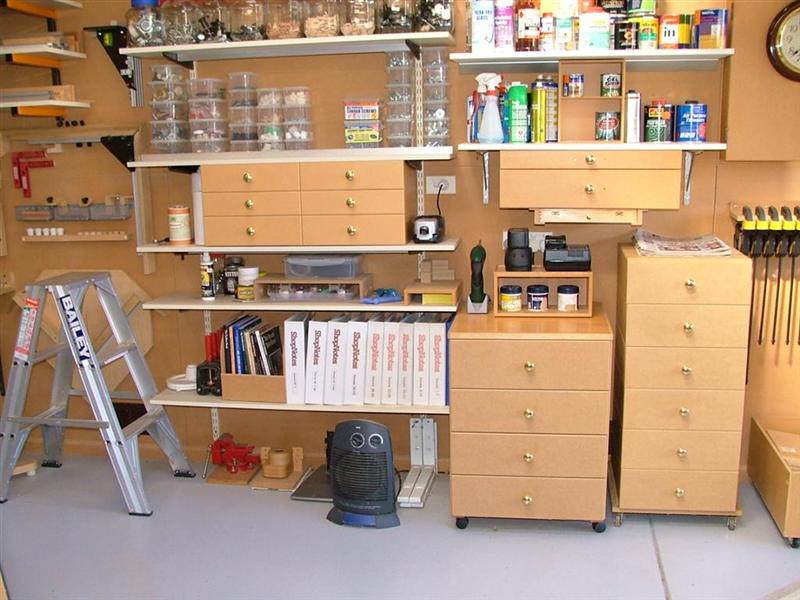

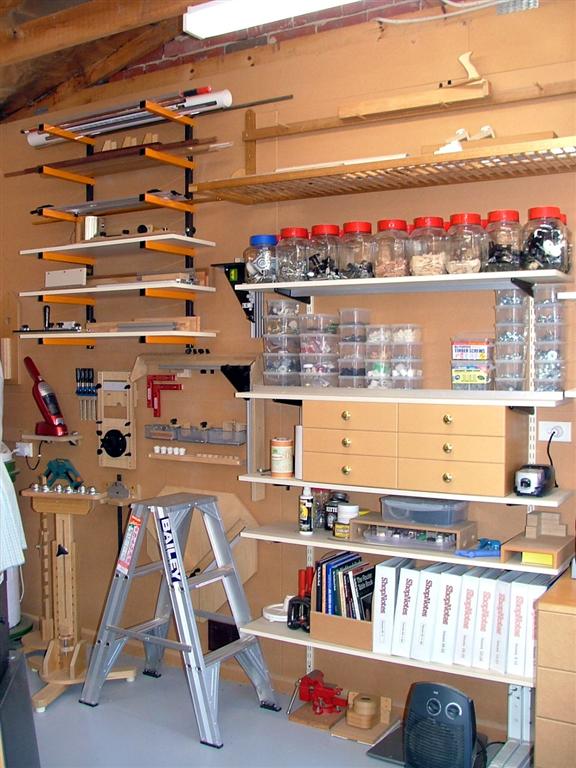

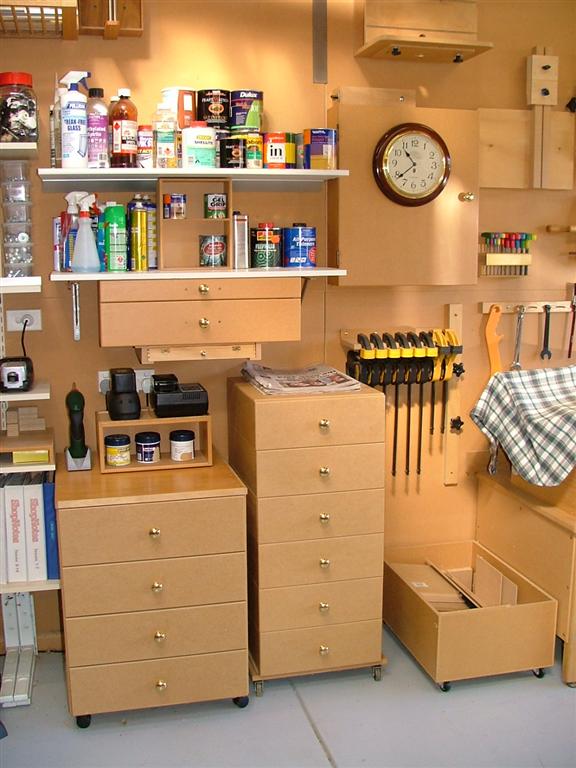

            Stuff everywhere

            Click image for larger version

Name:	ks05Plan.jpg
Views:	2
Size:	55.8 KB
ID:	790527

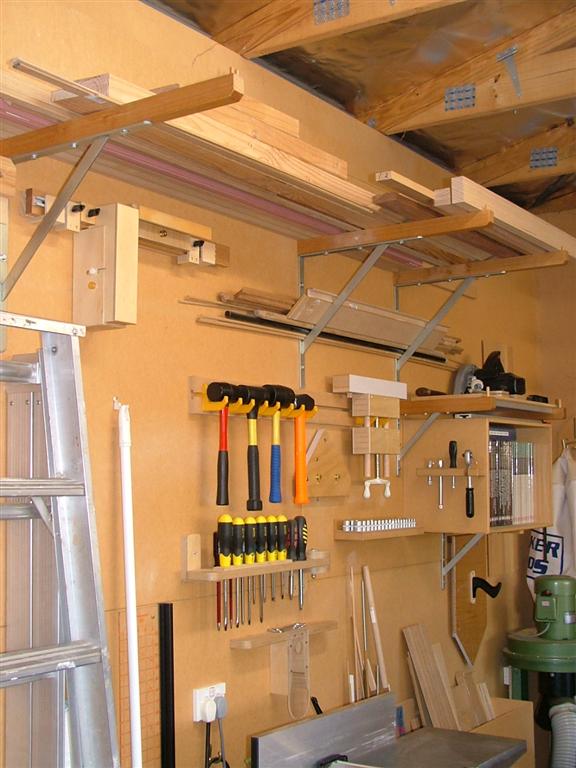

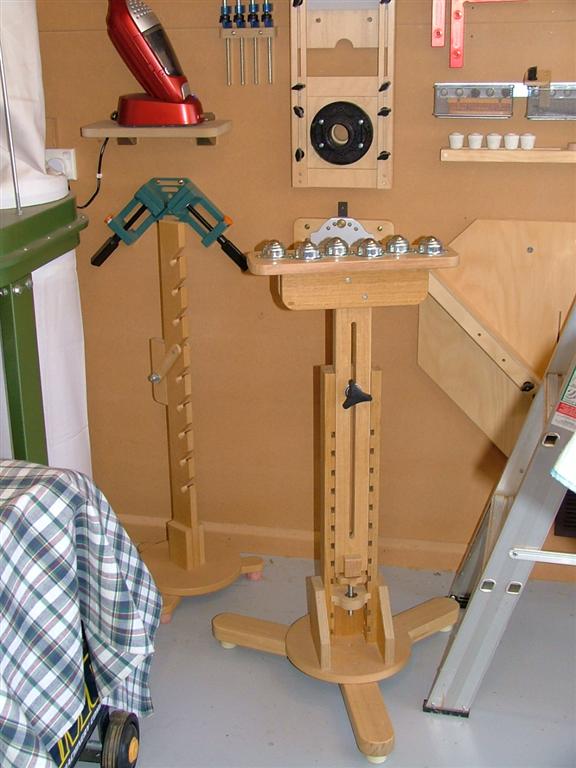

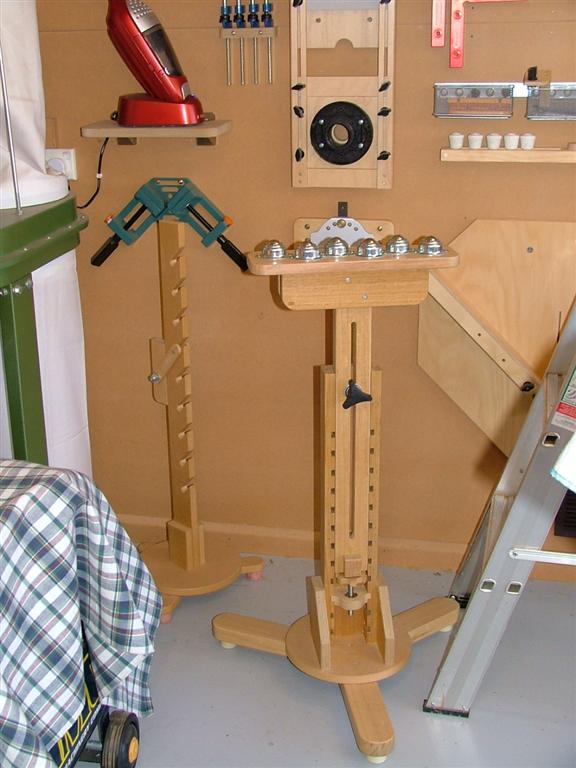

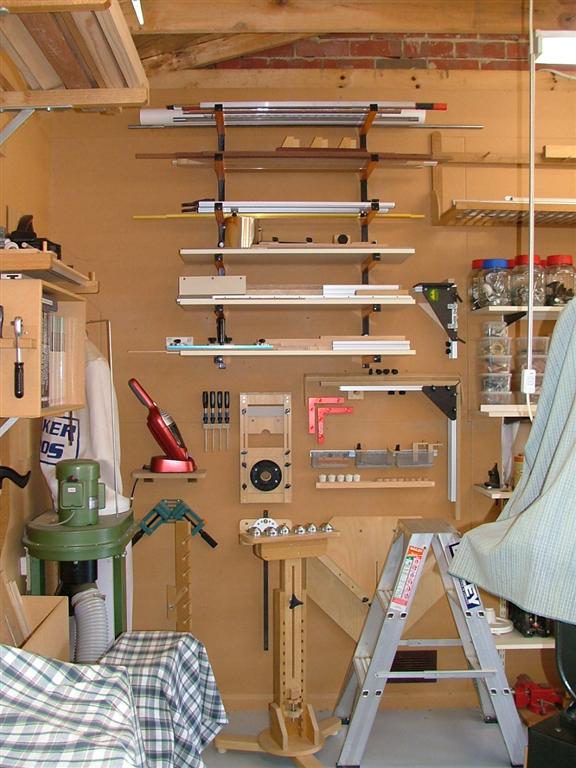

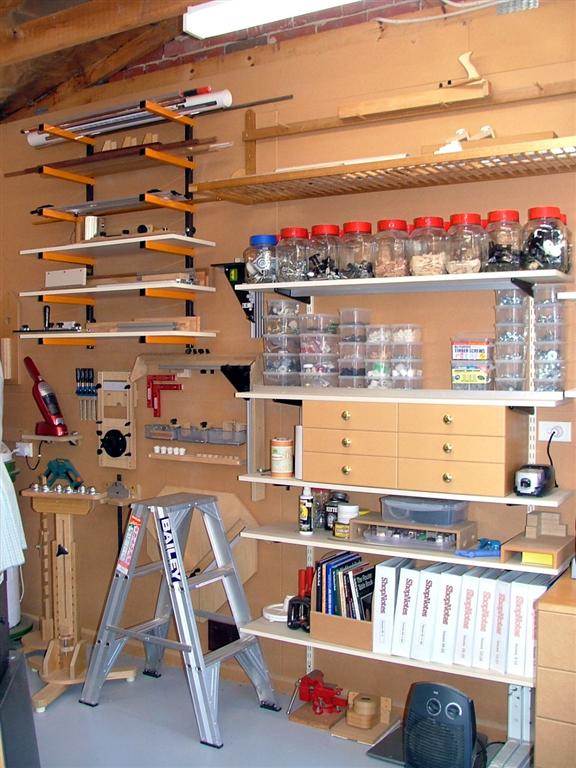

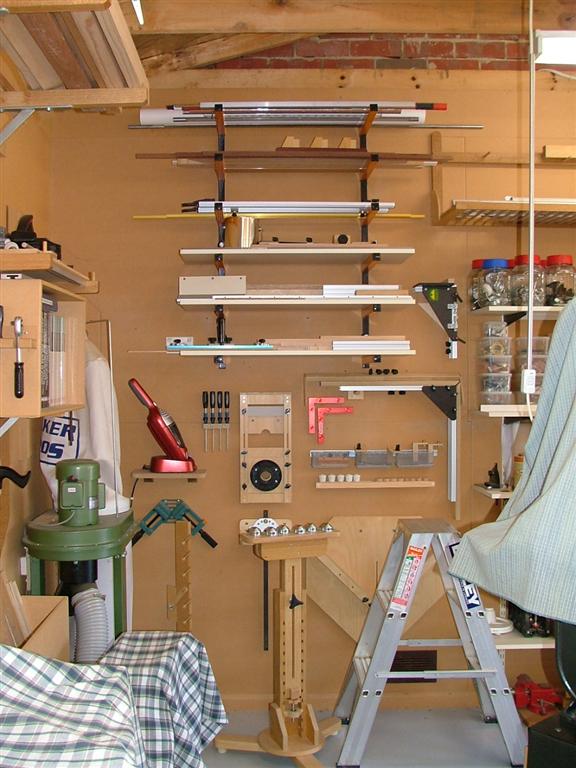

            The roller stand is from "Jigs and Fixtures” by Nick Engler, published by Rodale Press (He's my hero!)

            Click image for larger version

Name:	ks0501.jpg
Views:	2
Size:	64.1 KB
ID:	790528Click image for larger version

Name:	ks0502.jpg
Views:	2
Size:	80.1 KB
ID:	790529
            Click image for larger version

Name:	ks0503.jpg
Views:	2
Size:	90.0 KB
ID:	790530Click image for larger version

Name:	ks0504.jpg
Views:	2
Size:	85.8 KB
ID:	790531
            Click image for larger version

Name:	ks0505.jpg
Views:	2
Size:	90.6 KB
ID:	790532Click image for larger version

Name:	ks0506.jpg
Views:	2
Size:	73.2 KB
ID:	790533
            Attached Files
            Downunder ... 1" = 25.4mm

            Comment

            • RodKirby
              Veteran Member
              • Dec 2002
              • 3136
              • Melbourne, Victoria, Australia.
              • Mao Shan TSC-10RAS

              #7
              Kirby's Shop Tour

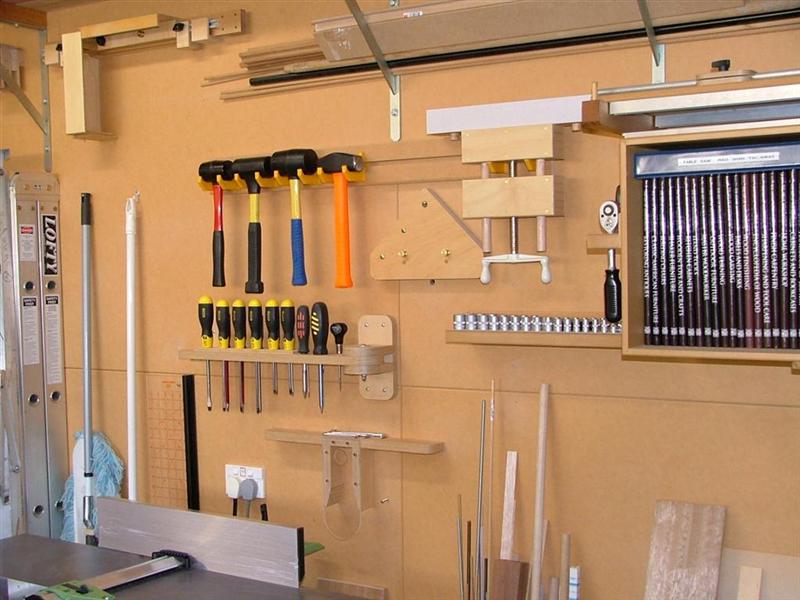

              This completes the "around the walls" tour.

              Click image for larger version

Name:	ks06Plan.jpg
Views:	2
Size:	55.7 KB
ID:	790534

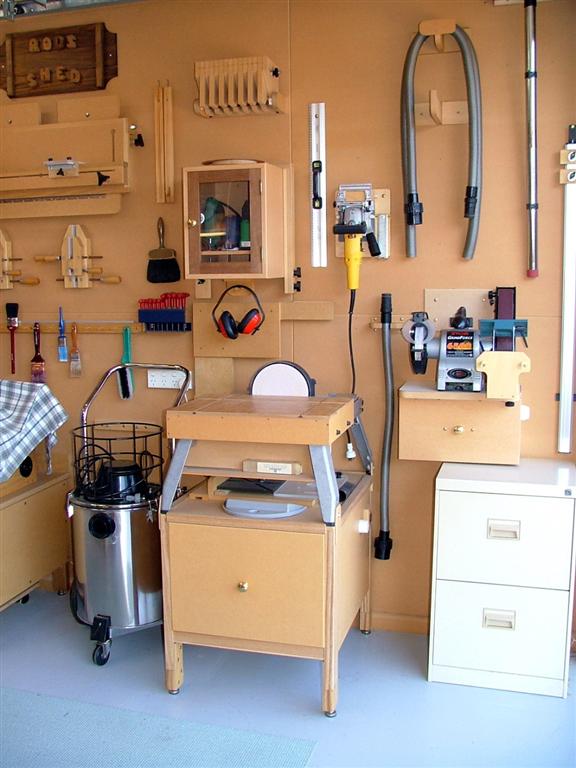

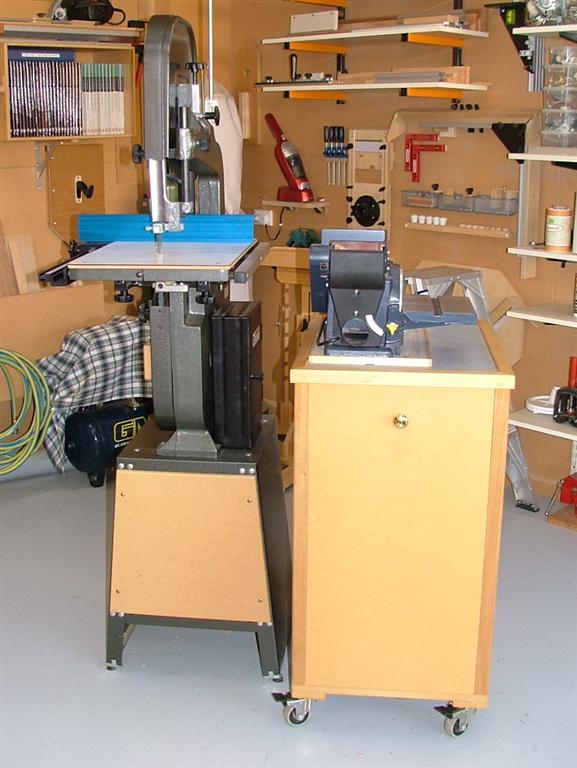

              This is the "Shopvac" that follows me around - DP, router tables, BS.

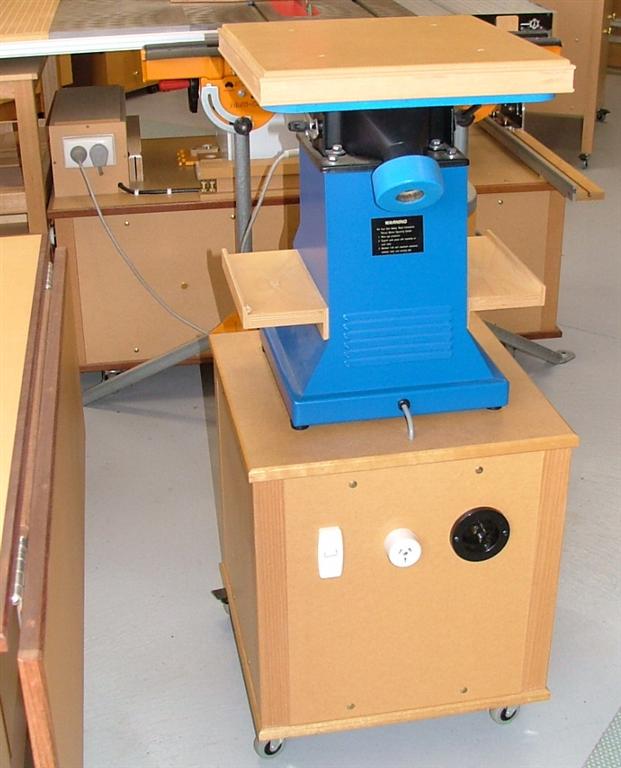

              The Disk sander is a Festo that LOML bought me as a B'day gift - a gazillion years ago

              Click image for larger version

Name:	ks0601.jpg
Views:	2
Size:	68.9 KB
ID:	790535Click image for larger version

Name:	ks0602.jpg
Views:	2
Size:	89.1 KB
ID:	790536
              Click image for larger version

Name:	ks0603.jpg
Views:	2
Size:	78.8 KB
ID:	790537Click image for larger version

Name:	ks0604.jpg
Views:	2
Size:	67.9 KB
ID:	790538
              Attached Files
              Downunder ... 1" = 25.4mm

              Comment

              • RodKirby
                Veteran Member
                • Dec 2002
                • 3136
                • Melbourne, Victoria, Australia.
                • Mao Shan TSC-10RAS

                #8
                Kirby's Shop Tour

                And now on to the stuff in the middle of the Shed...

                Click image for larger version

Name:	ks07Plan.jpg
Views:	2
Size:	56.0 KB
ID:	790545

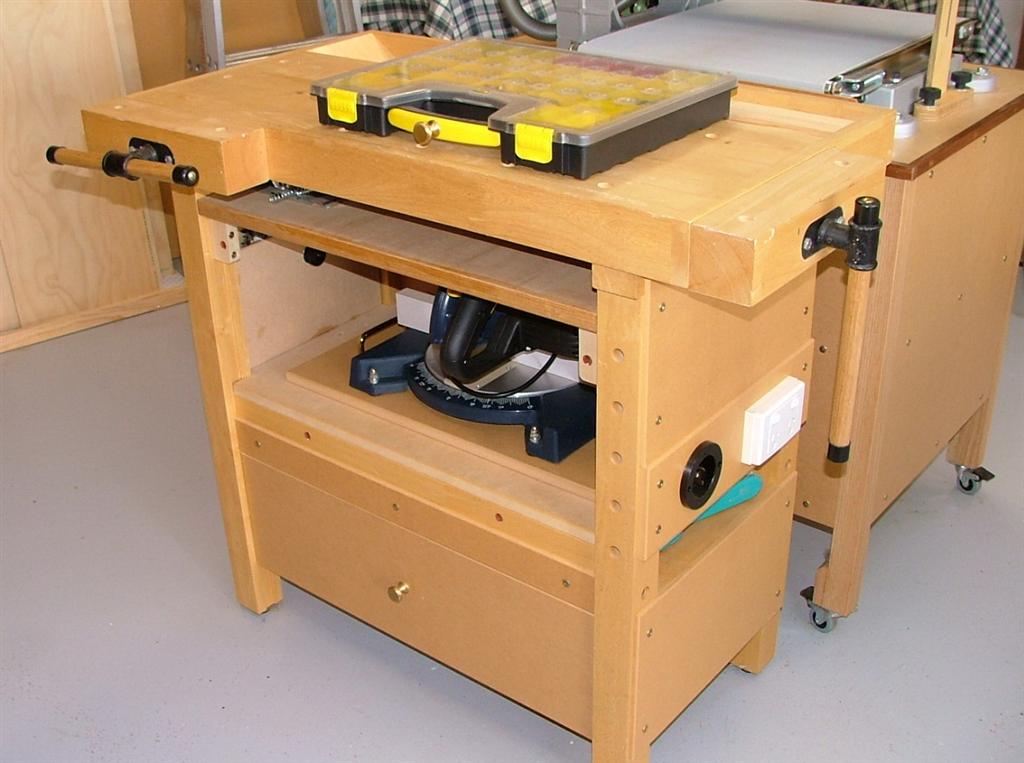

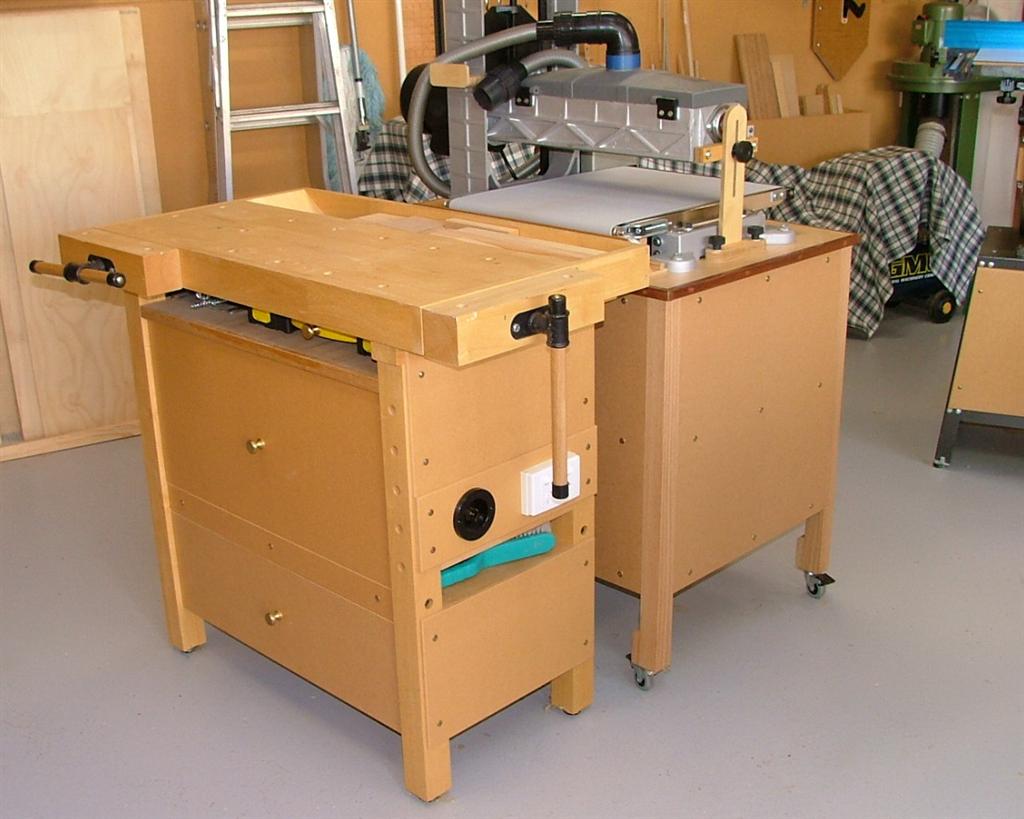

                The small bench is the only "wood" item I didn't make. At the time I moved from the old garage into the new Shed, this happened to come on sale for (about) US$100! I couldn't even buy the vises for that. I enclosed it all and added a shelf/door etc.

                It ended up being an ideal home for my CMS (only for cutting aluminum).

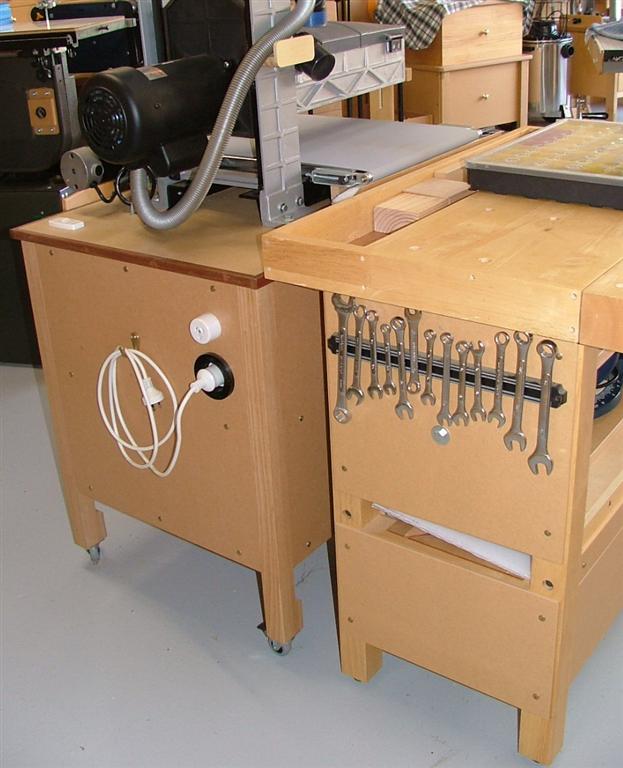

                BTW Wherever you see cabinets wired, the black receptacle is Power-in (from an extension lead). The white socket is to plug in the Shopvac. It gives me a single on/off switch to both the tool and the Shopvac.

                Click image for larger version

Name:	ks0701.jpg
Views:	2
Size:	96.4 KB
ID:	790546Click image for larger version

Name:	ks0706.jpg
Views:	2
Size:	59.6 KB
ID:	790547
                Click image for larger version

Name:	ks0703.jpg
Views:	2
Size:	92.5 KB
ID:	790548Click image for larger version

Name:	ks0705.jpg
Views:	2
Size:	68.8 KB
ID:	790549

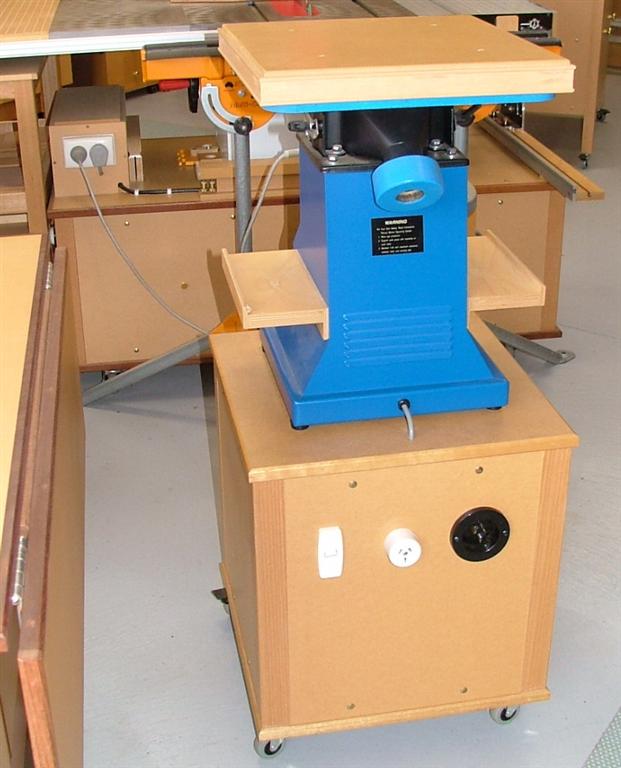

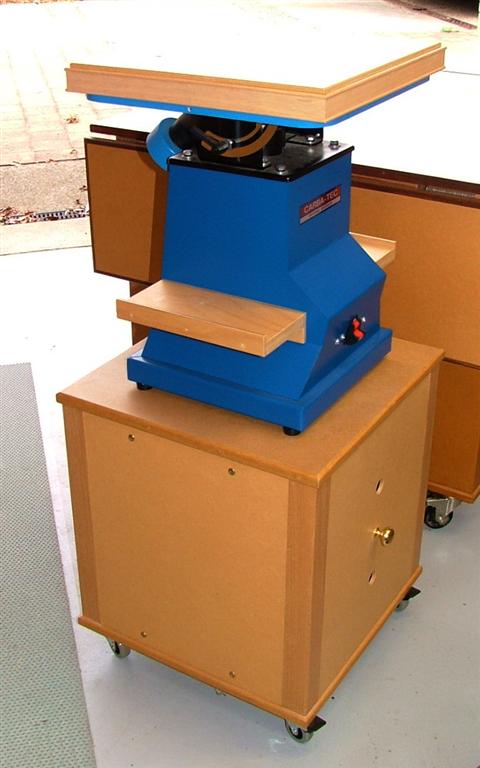

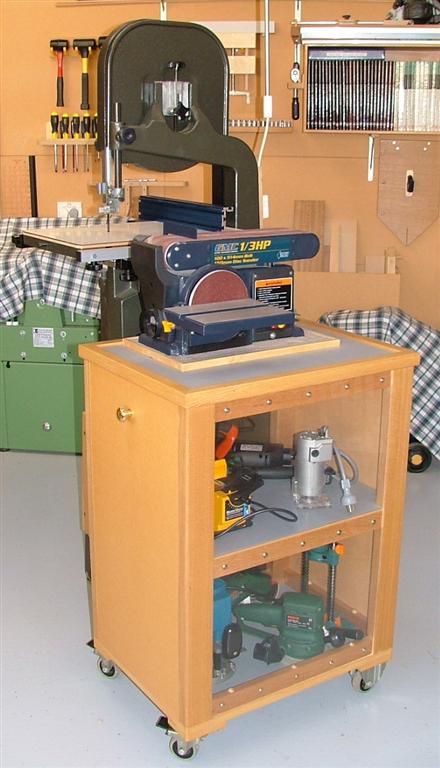

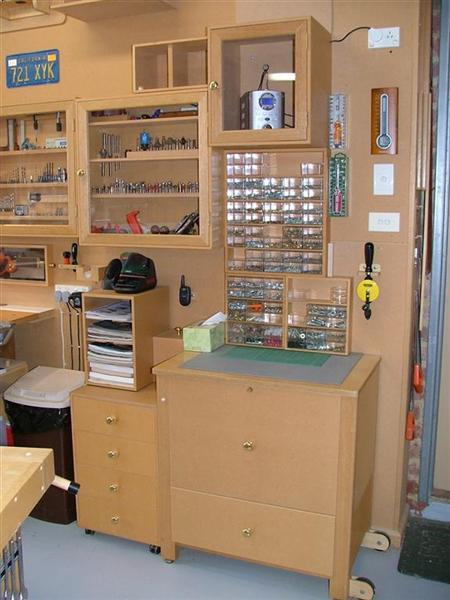

                This cabinet has 1/8" clear acrylic sides and (obviously), gets moved when I use the Bandsaw (blue Kreg fence).
                Click image for larger version

Name:	ks0702.jpg
Views:	2
Size:	71.5 KB
ID:	790550Click image for larger version

Name:	ks0704.jpg
Views:	2
Size:	59.4 KB
ID:	790551
                Attached Files
                Downunder ... 1" = 25.4mm

                Comment

                • RodKirby
                  Veteran Member
                  • Dec 2002
                  • 3136
                  • Melbourne, Victoria, Australia.
                  • Mao Shan TSC-10RAS

                  #9
                  Kirby's Shop Tour

                  Click image for larger version

Name:	ks08Plan.jpg
Views:	2
Size:	55.9 KB
ID:	790554

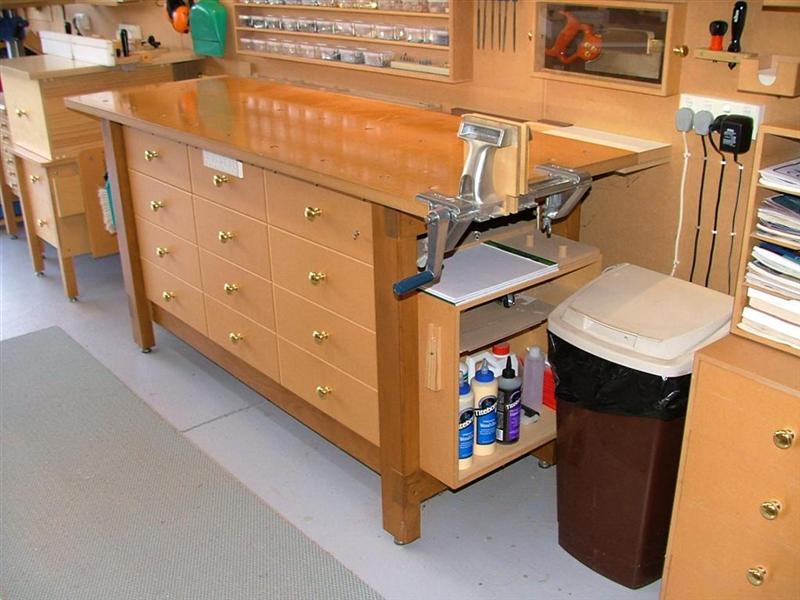

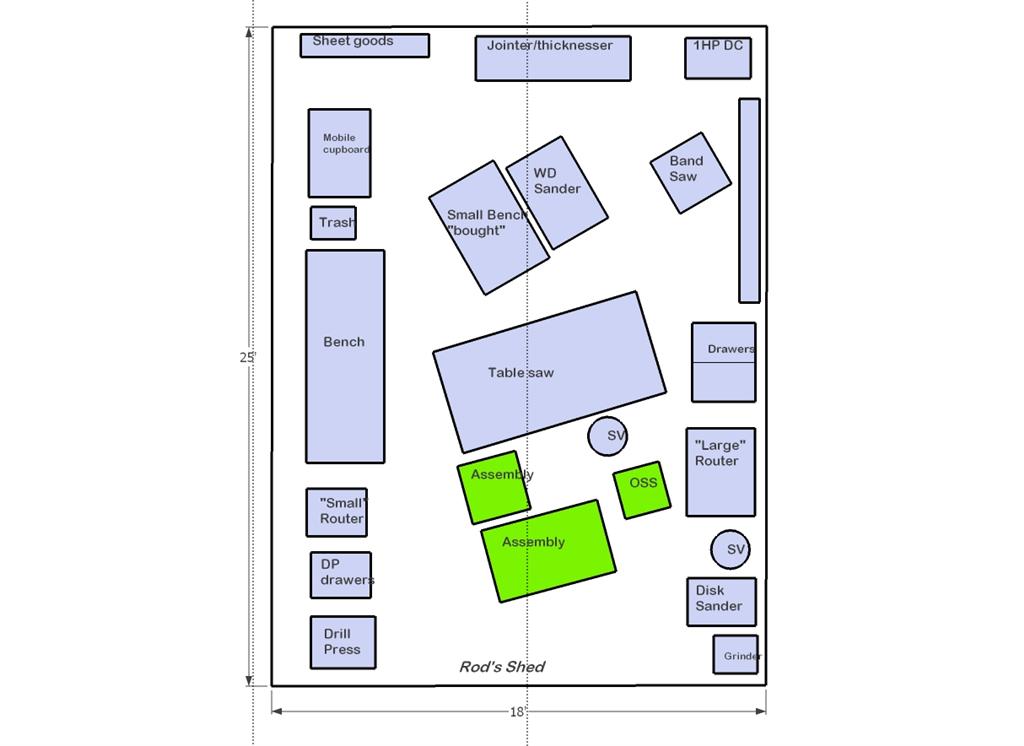

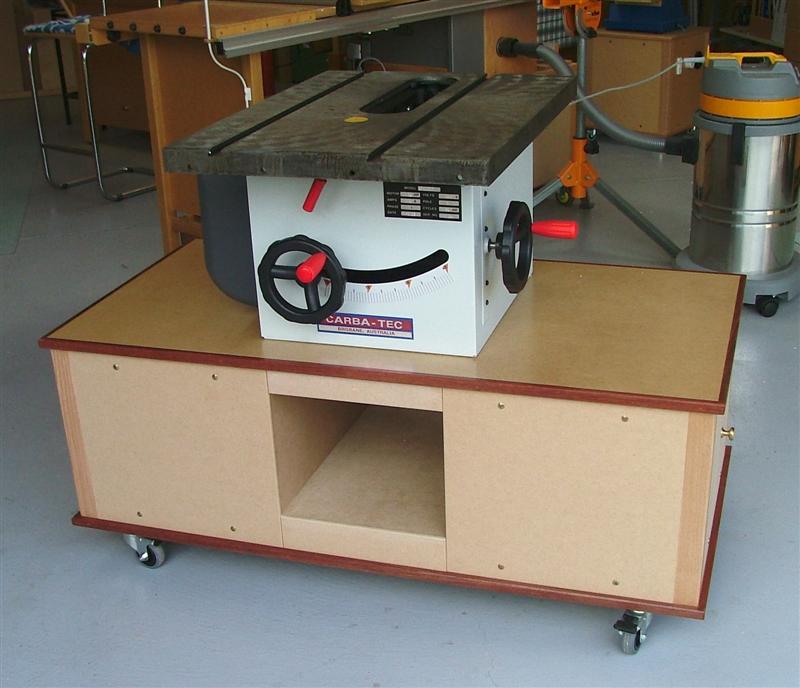

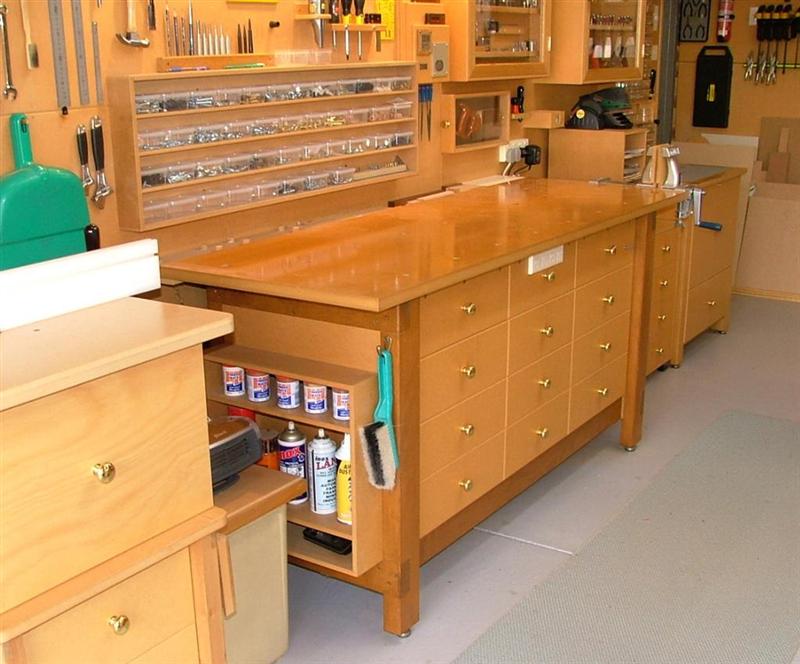

                  Where it all comes together:

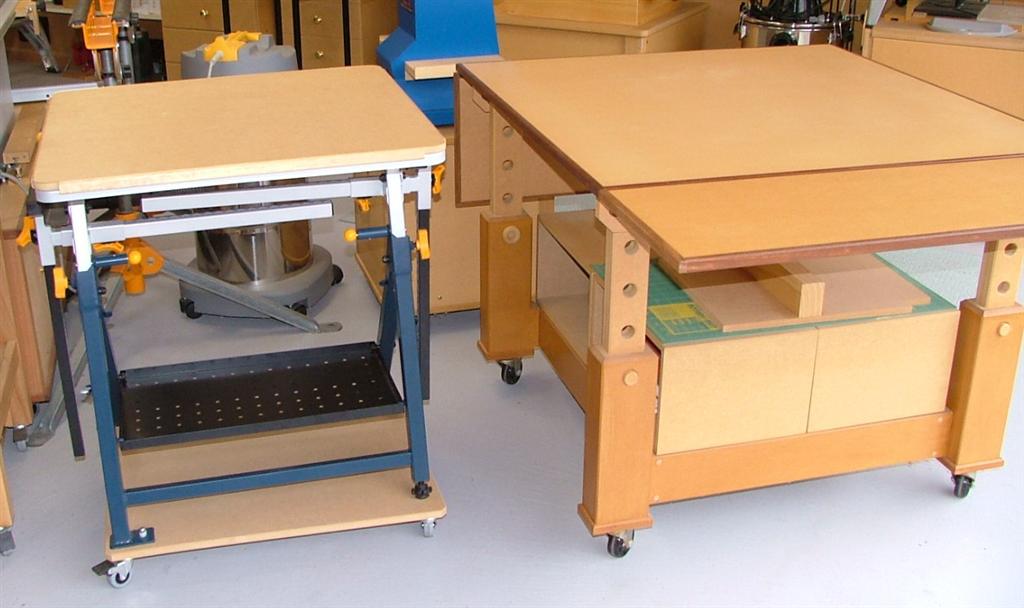

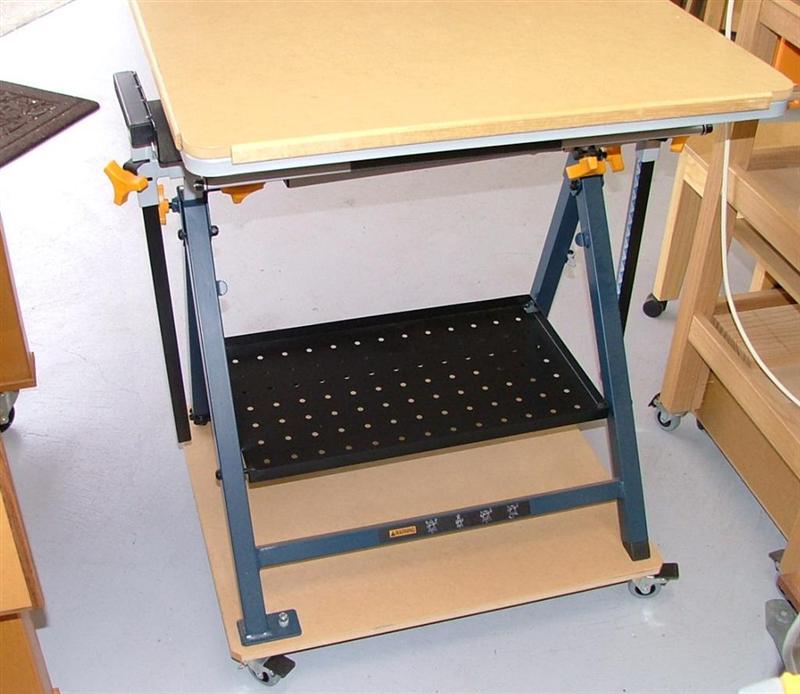

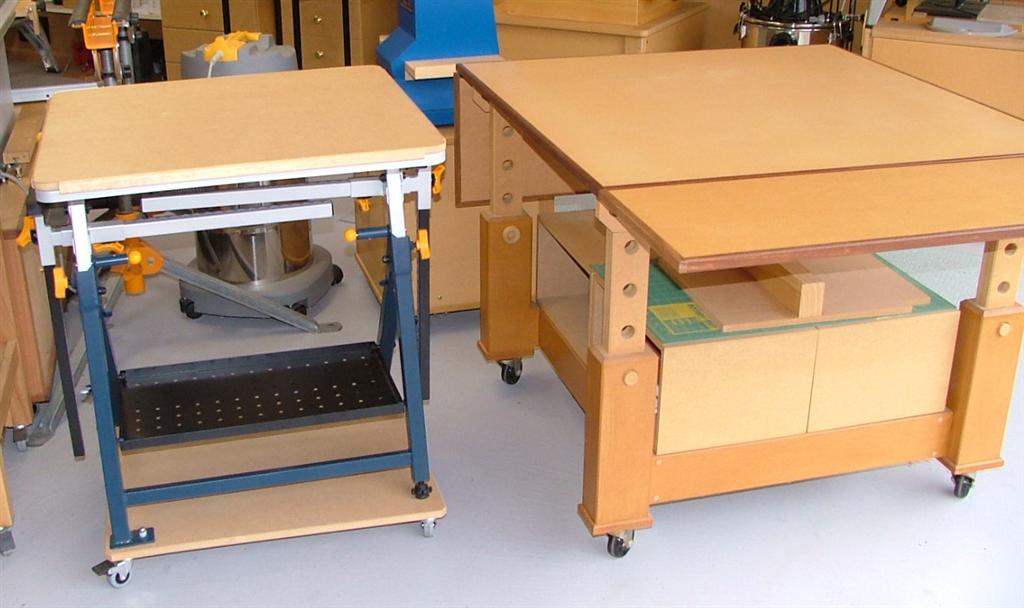

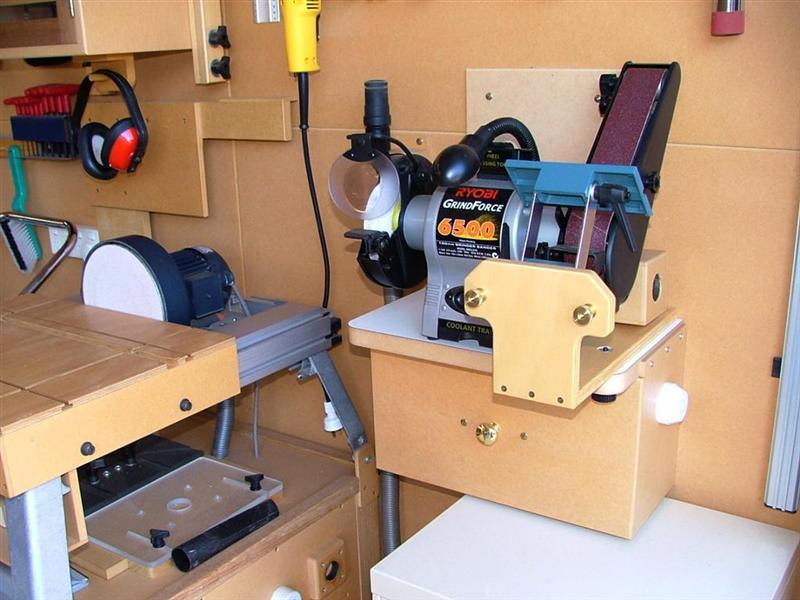

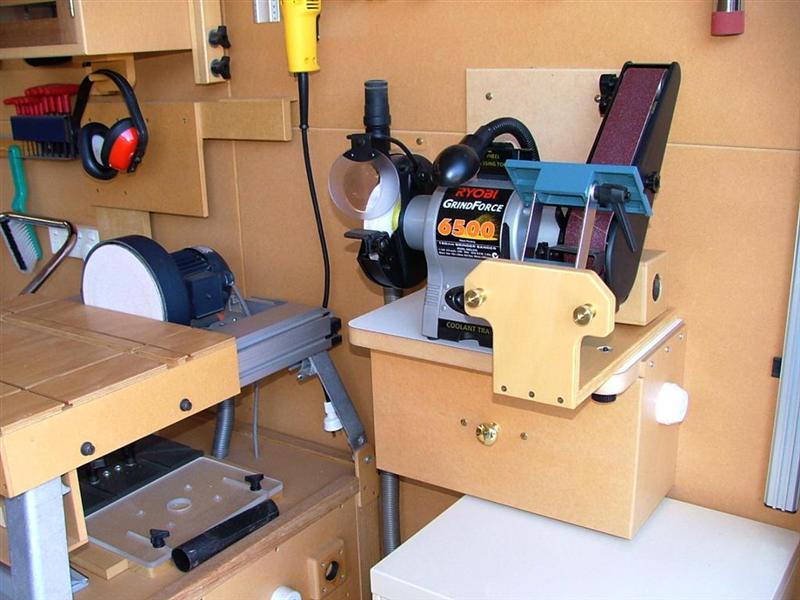

                  The Ryobi one on the left was on sale at our last WW Show - about US$30 Didn't need it but couldn't pass it up

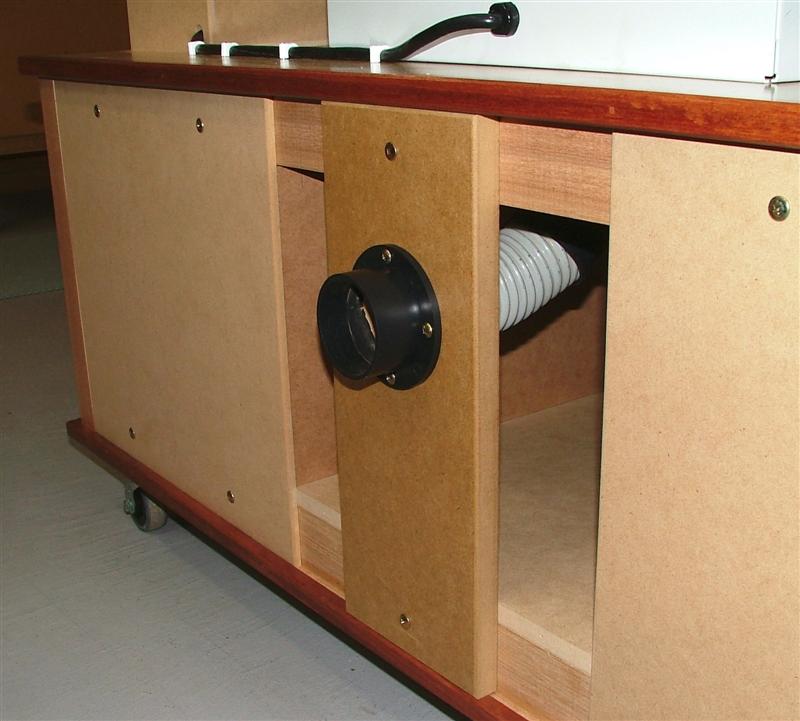

                  My base (needed to be moveable), and top (don't like bare metal surfaces -other than the Table saw).

                  Click image for larger version

Name:	ks0801.jpg
Views:	2
Size:	78.2 KB
ID:	790555Click image for larger version

Name:	ks0803.jpg
Views:	2
Size:	73.3 KB
ID:	790556

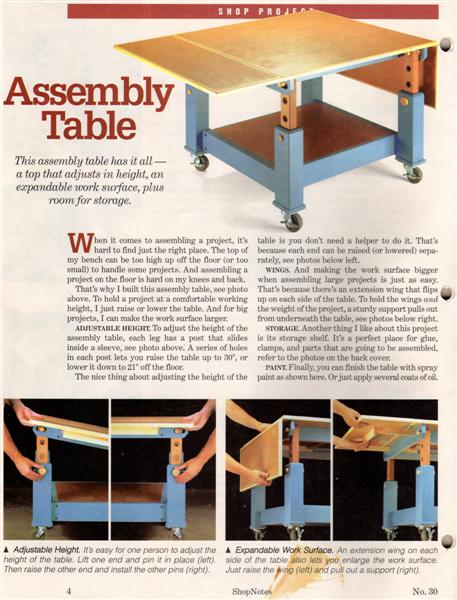

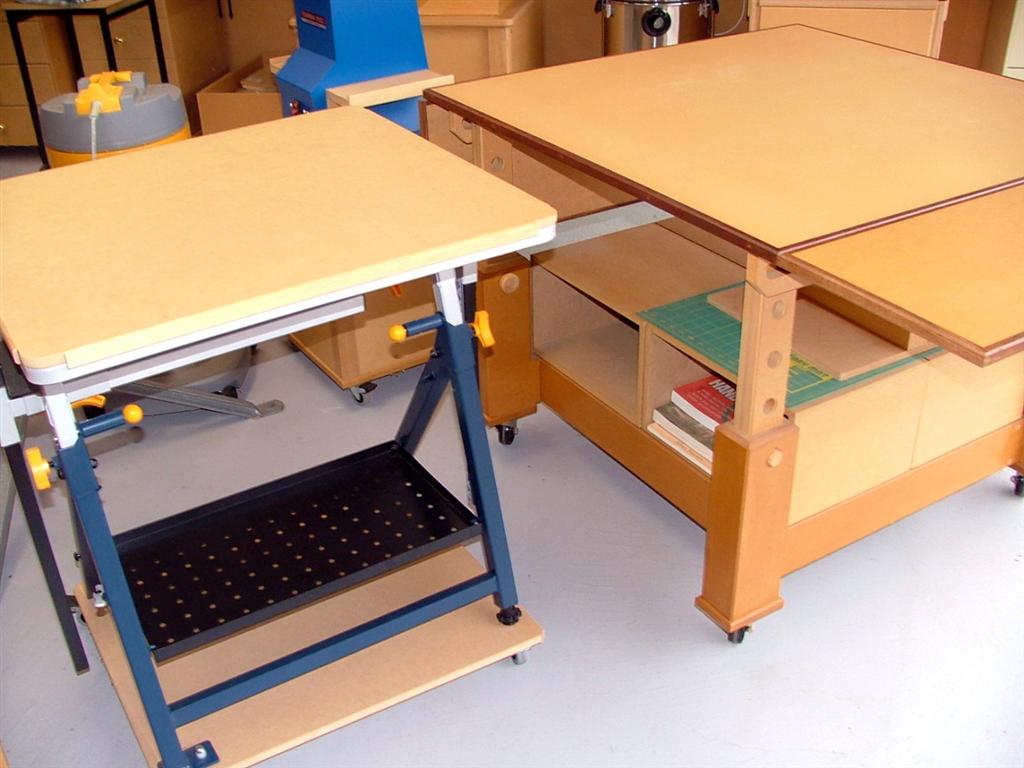

                  The one on the right is from ShopNotes #30. VERY useful - the height adjustment makes it very versatile - has even been used for Quilting activities - at reasonable rental rates of course Worth the 4 days it took to build. 95% 3/4" MDF - so there!

                  Click image for larger version

Name:	ks0802.jpg
Views:	2
Size:	91.4 KB
ID:	790557Click image for larger version

Name:	AssTbl0001.jpg
Views:	2
Size:	57.6 KB
ID:	790558


                  I made the top for this because it doesn't get much use - but great when needed! An Oz badged JET I think (?). The blue donut is my version of a DC adapter (MDF of course! laminated 2 x 3/4").

                  Click image for larger version

Name:	ks0804.jpg
Views:	2
Size:	62.8 KB
ID:	790559Click image for larger version

Name:	ks0805.jpg
Views:	2
Size:	47.9 KB
ID:	790560
                  Attached Files
                  Downunder ... 1" = 25.4mm

                  Comment

                  • RodKirby
                    Veteran Member
                    • Dec 2002
                    • 3136
                    • Melbourne, Victoria, Australia.
                    • Mao Shan TSC-10RAS

                    #10
                    Kirby's Shop Tour

                    The heart of the Shed...

                    Click image for larger version

Name:	ks09Plan.jpg
Views:	2
Size:	55.9 KB
ID:	790562

                    BEWARE - you are now entering the Darkside

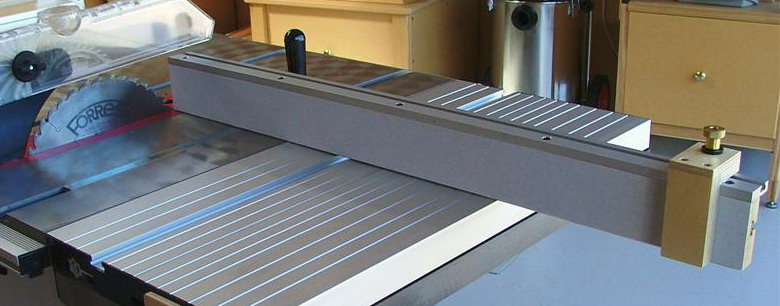

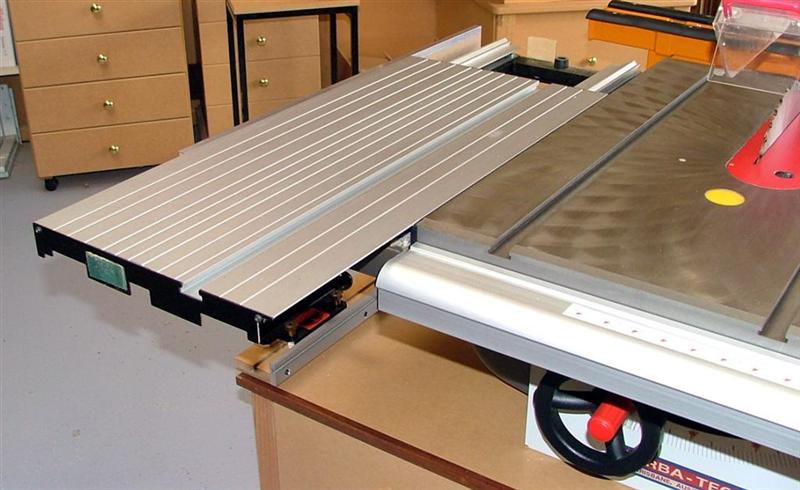

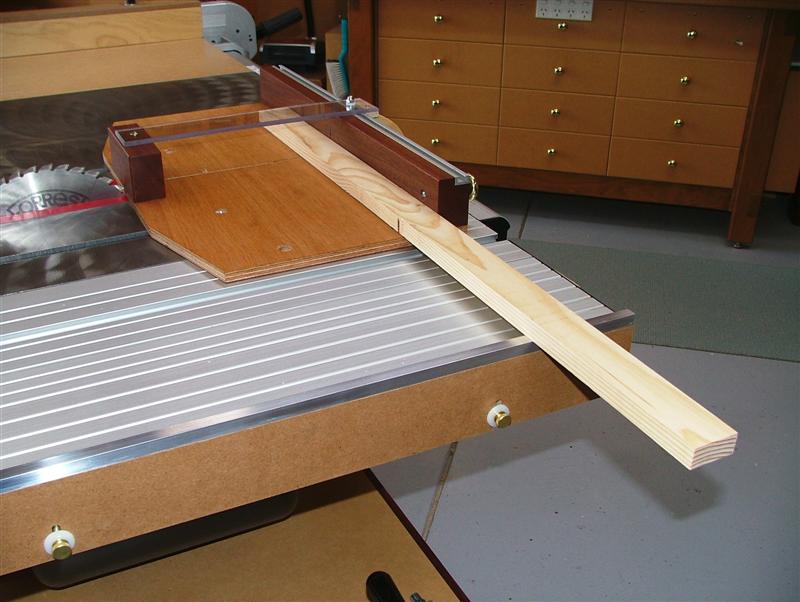

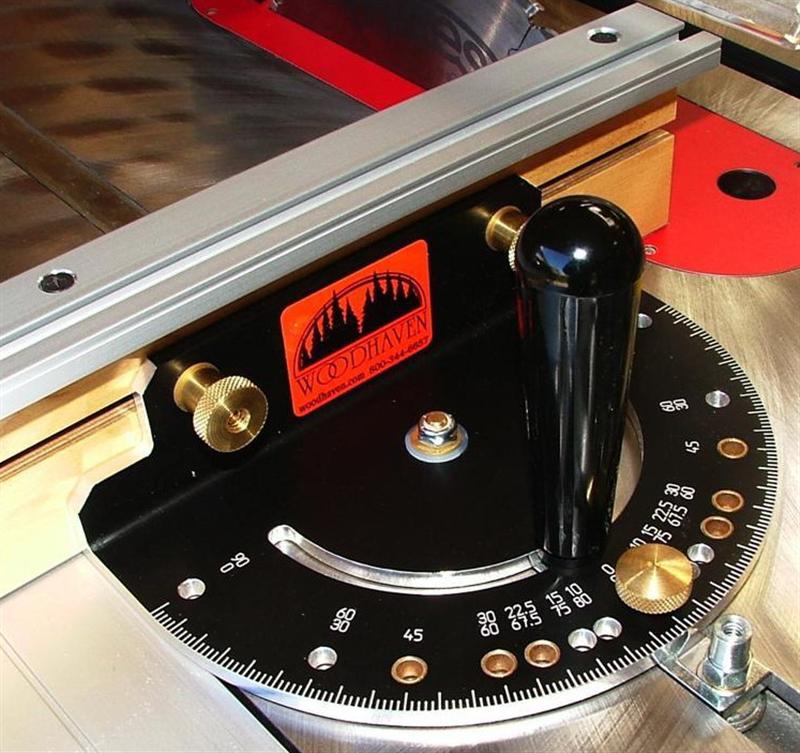

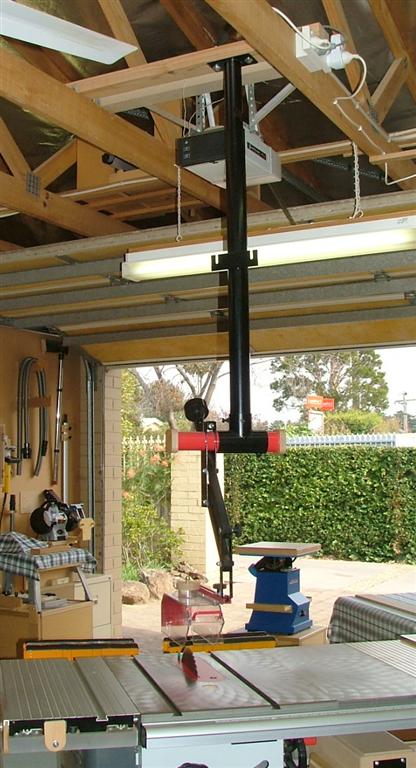

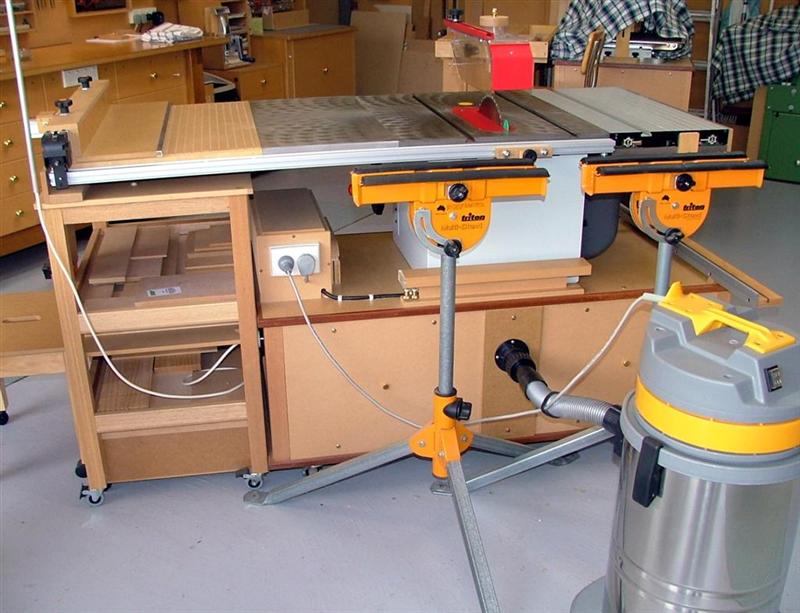

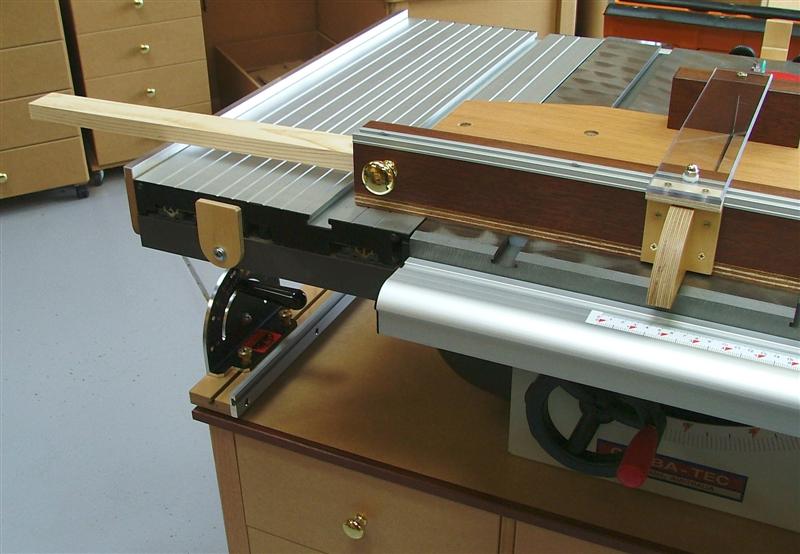

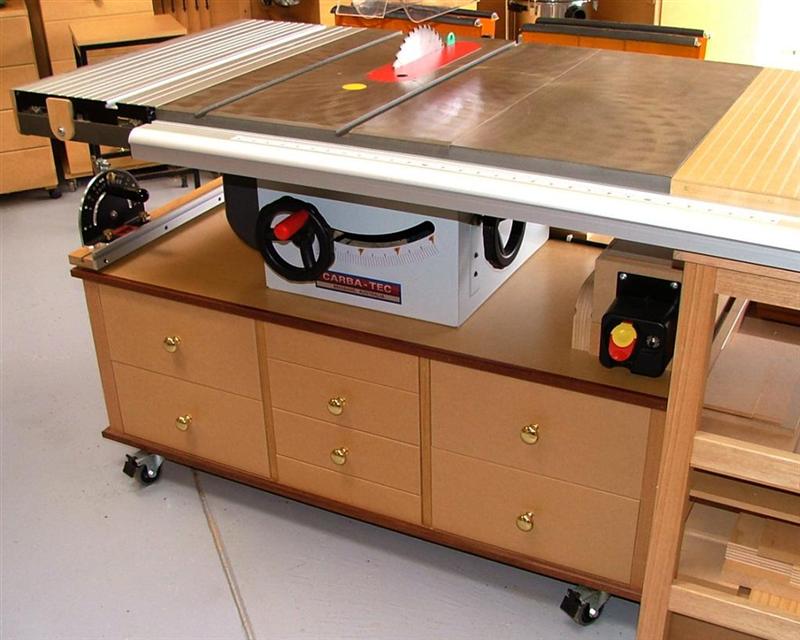

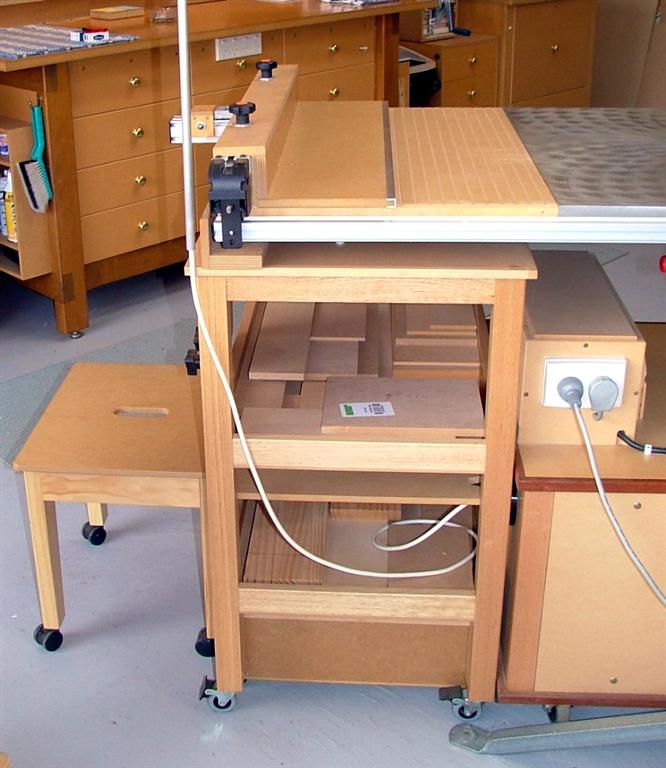

                    Explanation: Back in August 2005, I was feeling uncomfortable that my trusty BT3000 would be a REAL problem if I had any motor issues - parts etc. no longer available in Oz (240V 50Hz). The BT3100 had just been relaeased in Oz and I got a chance to see it at a WW show. Unfortunately (?) it was displayed alongside what you see below. They were both the "same" price No contest - the BT3100 looked like a toy alongside this. The kicker was the SMT

                    Click image for larger version

Name:	ks0901.jpg
Views:	3
Size:	78.6 KB
ID:	790563Click image for larger version

Name:	ks0902.jpg
Views:	1
Size:	69.5 KB
ID:	790564

                    This "Shopvac" is dedicated to the saw. NOTE: The mobile offcut "cart" does not support anything - it just slides under the saw table.

                    Click image for larger version

Name:	ks0903.jpg
Views:	2
Size:	86.8 KB
ID:	790565Click image for larger version

Name:	ks0904.jpg
Views:	2
Size:	75.4 KB
ID:	790566

                    Here are some pics of it all coming together:

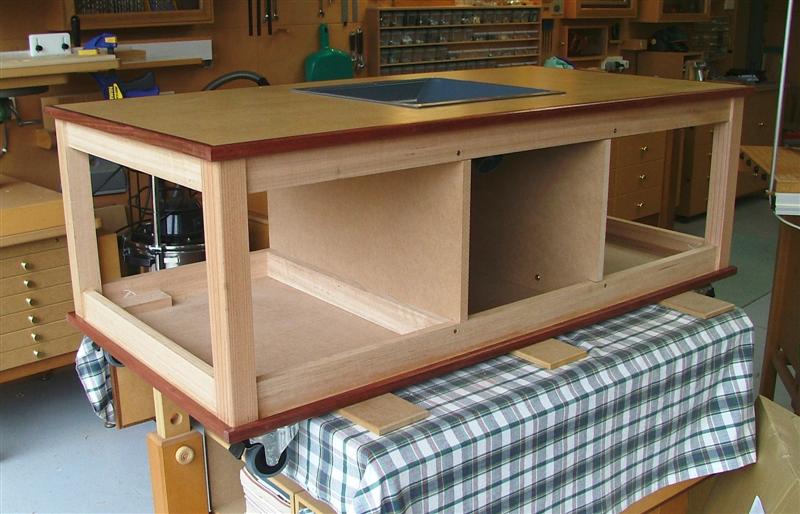

                    Base in progress. Saw attached to the OEM base for "lifting up".
                    I had 2 hefty friends lift it over to the new base while I aligned it with the bolt holes (I actually got them right!).

                    Click image for larger version

Name:	nsb1.jpg
Views:	2
Size:	68.7 KB
ID:	790567Click image for larger version

Name:	nsb2.jpg
Views:	1
Size:	60.1 KB
ID:	790568

                    DC connection:

                    Click image for larger version

Name:	dcport.jpg
Views:	1
Size:	61.1 KB
ID:	790569Click image for larger version

Name:	nsb3.jpg
Views:	2
Size:	61.0 KB
ID:	790570

                    Miscellaneous:

                    Front and rear rails:
                    Click image for larger version

Name:	frontrail.jpg
Views:	1
Size:	41.2 KB
ID:	790571Click image for larger version

Name:	rearrail.jpg
Views:	1
Size:	56.6 KB
ID:	790572

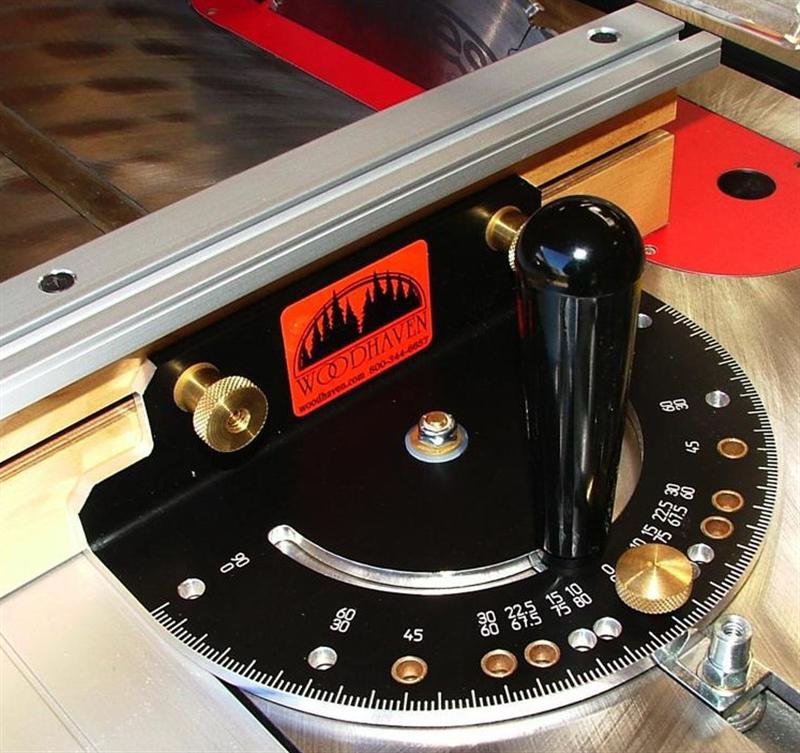

                    Love that Woodhaven Miter fence
                    Click image for larger version

Name:	mfence1.jpg
Views:	2
Size:	72.2 KB
ID:	790573Click image for larger version

Name:	mfence2.jpg
Views:	2
Size:	93.1 KB
ID:	790574

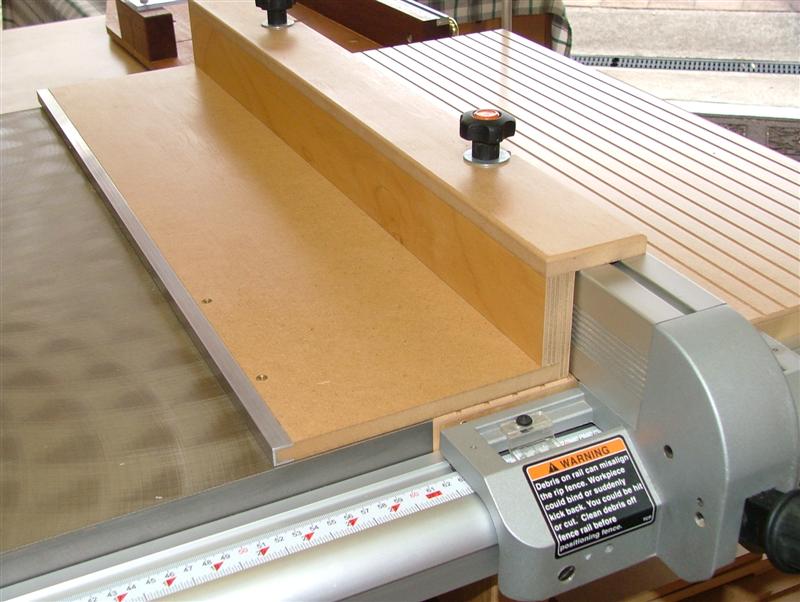

                    Sorry about the clutter in the pic on the right - just wanted to show you how I setup the overhead guard.
                    Click image for larger version

Name:	rfadd1.jpg
Views:	2
Size:	77.4 KB
ID:	790575Click image for larger version

Name:	ks0905.jpg
Views:	2
Size:	75.1 KB
ID:	790576
                    Attached Files
                    Last edited by RodKirby; 12-06-2008, 04:27 PM.
                    Downunder ... 1" = 25.4mm

                    Comment

                    • RodKirby
                      Veteran Member
                      • Dec 2002
                      • 3136
                      • Melbourne, Victoria, Australia.
                      • Mao Shan TSC-10RAS

                      #11
                      Kirby's Shop Tour

                      Mainly for my Darkside friends:

                      This started out to be a "trial" sled. I wasn't sure what I wanted/needed on my new TS. After 18 months, it has done all I've needed, so it stays as is

                      I seem to cut a lot of "smaller" stuff, and I find it difficult to exactly align a pencil mark to the blade - can't get over the top to see.

                      With the sled, I just move it towards me and align to the saw kerf

                      Note travel stop.

                      Click image for larger version

Name:	xsled01.jpg
Views:	1
Size:	75.1 KB
ID:	790577Click image for larger version

Name:	xsled02.jpg
Views:	1
Size:	68.3 KB
ID:	790578

                      Guard is 1/4" Lexan

                      Click image for larger version

Name:	xsled03.jpg
Views:	1
Size:	76.6 KB
ID:	790579Click image for larger version

Name:	xsled05.jpg
Views:	1
Size:	57.3 KB
ID:	790580

                      Support for the longer stuff:

                      Click image for larger version

Name:	xsled06.jpg
Views:	1
Size:	59.1 KB
ID:	790581Click image for larger version

Name:	xsled07.jpg
Views:	1
Size:	62.3 KB
ID:	790582

                      Length stops - for either side of the blade

                      Click image for larger version

Name:	xstop1.jpg
Views:	1
Size:	45.9 KB
ID:	790583Click image for larger version

Name:	xstop2.jpg
Views:	1
Size:	81.7 KB
ID:	790584

                      Two UHMWPE runners - 1/4-20 grubscrews for alignment

                      Click image for larger version

Name:	xsled04.jpg
Views:	2
Size:	30.4 KB
ID:	790585
                      Last edited by RodKirby; 12-06-2008, 04:27 PM.
                      Downunder ... 1" = 25.4mm

                      Comment

                      • GrosBoB

                        #12
                        Kirby's Shop

                        Congratulations for your shop,the storage cabinets and the many jigs you've built. Eveything is fantastic, interesting and very instructional ! The shop is clear, neat and very attractive ! It looks professional and is for sure a place where it is joyful to work. Keep on the good work.

                        Comment

                        • worm2003
                          Handtools only
                          • Sep 2008
                          • 1

                          #13
                          Nice work Kirby. That is one great looking shop. As a jigs and fixture man myself I must say that you did a great job on everything. Would love to have more details and/or how to on some of thos jigs.

                          Comment

                          • Larrysch
                            Forum Newbie
                            • Dec 2008
                            • 20
                            • Idaho
                            • Ridgid

                            #14
                            Holly Cow - what a shop - that is really something to be proud of - and my kind of a shop - nice and clean. Very well done and you should pat yourself on the back for a job "Well done".
                            (PS - you need to contact Wood Magazine and put that in their "American's best shops" for 2009.)
                            Larry

                            "I do not remember my mistakes - my wife does that for me"

                            Comment

                            • dbhost
                              Slow and steady
                              • Apr 2008
                              • 9332
                              • League City, Texas
                              • Ryobi BT3100

                              #15
                              Originally posted by Larrysch
                              Holly Cow - what a shop - that is really something to be proud of - and my kind of a shop - nice and clean. Very well done and you should pat yourself on the back for a job "Well done".
                              (PS - you need to contact Wood Magazine and put that in their "American's best shops" for 2009.)
                              Larry, Rod Kirby is one of our good mates from down under. I don't think he'd qualify for best shops in America... He might want to submit to The Wood Whisperer Shop Of The Week...
                              Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

                              Comment

                              Working...
