  • capncarl
    Veteran Member
    • Jan 2007
    • 3578
    • Leesburg Georgia USA
    • SawStop CTS

    #16
    Do the blanks need to be a slick finish 3/4 or can they be a rough saw cut? Maybe larger than 3/4?

    Comment

    • leehljp
      Just me
      • Dec 2002
      • 8476
      • Tunica, MS
      • BT3000/3100

      #17
      Originally posted by capncarl
      Do the blanks need to be a slick finish 3/4 or can they be a rough saw cut? Maybe larger than 3/4?
      Usually 3/4 x 3/4 is the overall smallest. They can be 5/8 and I have even done 1/2 inch on slimlines. It is very tedious in drilling the 1/2 inch. Rough sawn on most 3/4 works OK. A lot depend on 1. how rough the cuts are and 2. the specific pen parts size. For instance a "Cigar" pen is hefty and a rough cut 3/4" might have scratch marks that will take it down to just under 5/8 before all the saw marks are clear. This makes it for a tight fit on the Cigar. However there is one more element that is more important: Drilling. We can force drill a quick hole in a 2x4 and nothing will happen. However when carefully drilling a 3/4" square blank, the integrity of the blank is compromised by thin walls; the thinner the wall, the more knots or nice looking irregular grain, or the more scratches from saw marks, the more likely a blowout will occur. There are clamps to hold the blank straight AND more specifically keep the blank from blowing out but clamping the walls of the blank as it is being drilled.

      I, and many pen turners will drill on the lathe; everything is lined up from beginning to the end. In some cases, I will wrap string around the blank (now people wrap gauze around the blanks) and then put CA (super glue) to reinforce the walls of the blank and then drill it. Once drilled, the gauze or string is turned off. In the photo shown here, the black stripes (some form of plastic) placed in the holly groves made for a weakest point in the blank. I wrapped it with string and CAed the stuffings out of it, then drilled and turned it. If I had not wrapped string around it, it would have just blown apart during the drilling or turning. The same concept happens on very grainy blanks and blank with knots, or thin ones or ones with deep scratches from rough cuts. I doubt your idea of rough cut is not nearly as deep as a sawmill rough cut though, which would be disastrous on a 3/4" blank.
      Last edited by leehljp; 03-21-2019, 08:29 AM.
      Hank Lee

      Experience is what you get when you don't get what you wanted!

      Comment

      • capncarl
        Veteran Member
        • Jan 2007
        • 3578
        • Leesburg Georgia USA
        • SawStop CTS

        #18
        I had rather cut the blanks on my band saw, which will leave some saw marks. If I have a new, sharp blade not so many marks. Using the table saw is not as appealing, though I donít have a problem cutting them with it. Since I replaced my Delta band saw last year with a Rikon Iíve not used the table saw near as much.
        I think a lot of the wood in my cove cut box is Ambrosia Maple and Chinaberry and should make for some nice pens.

        Comment

        • durango dude
          Senior Member
          • Mar 2011
          • 934
          • a thousand or so feet above insanity
          • 50s vintage Craftsman Contractor Saw

          #19
          So far - I'm turning slimline pens.
          For what I'm doing ------- the presence of a good center hole is much more important than anything else.

          Rough cut is fine ------ after all, you'll turn it all away.

          I think Ambrosia would make a pretty nice pen, as long as it doesn't have lots of worm holes.

          Comment

          • capncarl
            Veteran Member
            • Jan 2007
            • 3578
            • Leesburg Georgia USA
            • SawStop CTS

            #20
            I was surprised, out of 2, 5 gallon buckets full of cut offs, these were the little arch piece I cut out of the 2 long aprons on my Tiny tables, I was only able to get about a dozen pen blanks. Most of the arch pieces thick part was less than 3/4Ē. I cut up some more drops and wound up with about 50 blanks. Iíll save and cut pen blanks out of the rest of my drops later. I just have to get this mess cleaned up!

            Comment

            • durango dude
              Senior Member
              • Mar 2011
              • 934
              • a thousand or so feet above insanity
              • 50s vintage Craftsman Contractor Saw

              #21
              sent message

              Comment

              • durango dude
                Senior Member
                • Mar 2011
                • 934
                • a thousand or so feet above insanity
                • 50s vintage Craftsman Contractor Saw

                #22

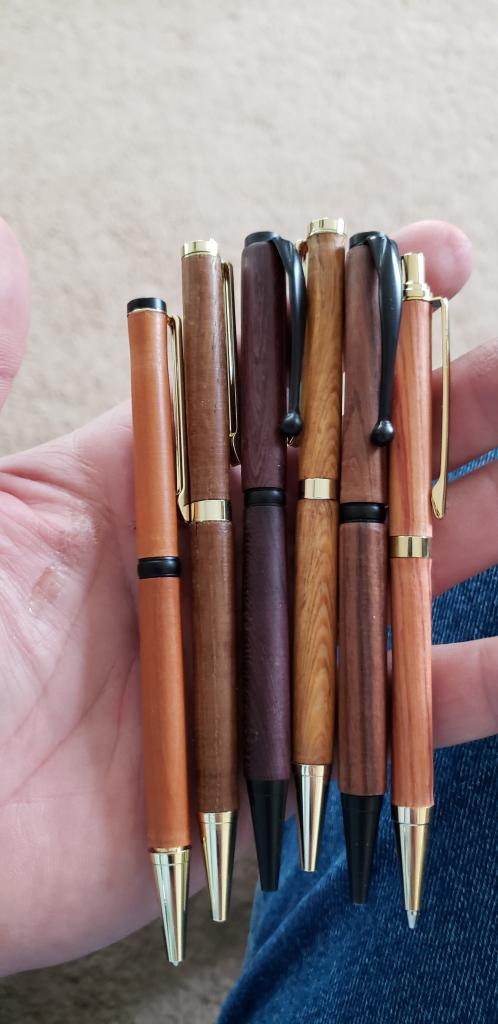

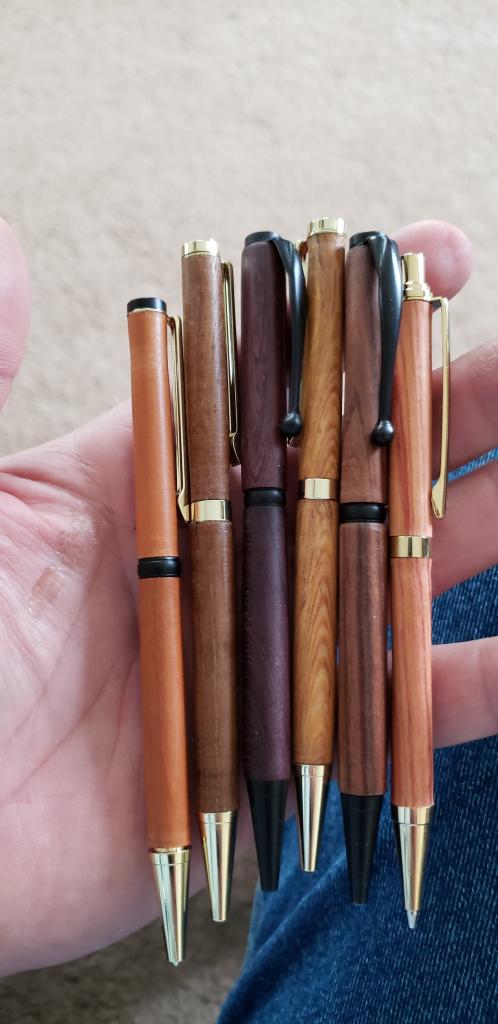

                I may have a habit . Click image for larger version

Name:	20190421_174348.jpg
Views:	526
Size:	56.7 KB
ID:	836525
                Attached Files

                Comment

                • Bill in Buena Park
                  Veteran Member
                  • Nov 2007
                  • 1865
                  • Buena Park, CA
                  • CM 21829

                  #23
                  Nice job on those! There is a 12 step program to deal with your habit, step one is to free yourself of those insidious pen blanks, let me send you my address....
                  Bill in Buena Park

                  Comment

                  • durango dude
                    Senior Member
                    • Mar 2011
                    • 934
                    • a thousand or so feet above insanity
                    • 50s vintage Craftsman Contractor Saw

                    #24
                    Yup - the slope is slippery ------ just ordered a Nova chuck.

                    Comment

                    • capncarl
                      Veteran Member
                      • Jan 2007
                      • 3578
                      • Leesburg Georgia USA
                      • SawStop CTS

                      #25
                      Durango dude, now that you have ordered a nova chuck, Woodcraft just had a sale on nova 4 piece chuck set for $113.
                      Click image for larger version

Name:	7F616595-11D5-4390-A86C-EAAD86C12962.jpeg
Views:	262
Size:	83.5 KB
ID:	836788

                      Comment

                      • Doctor Jeff
                        Forum Newbie
                        • Mar 2016
                        • 36
                        • Omaha NE
                        • Sawstop contractor saw 2016

                        #26
                        Nice! Love the wood grain. I made some knives using bocote scales...very beautiful wood grain and pattern.

                        Comment

                        • GrumpyDad
                          Established Member
                          • Jul 2020
                          • 165
                          • Midwest
                          • Ryobi BT3100, BT3000, Sawstop PCS

                          #27
                          I have some cabinet shops around me that throw away "rolls" of banded scraps that are 8 to 10 foot long. Each banded group is probably 3 foot thick...all hardwoods. I commonly go there and pick out scraps.

                          Last edited by GrumpyDad; 10-23-2020, 07:46 PM.
                          Harumpf!
                          GrumpyDad

                          Comment
