CNC arrived

Collapse
This topic is closed.
X
X

  • Time
  • Show
Clear All
new posts

  • atgcpaul
    commented on 's reply
    This link talks a little about using the composite brads in a standard PC air nailer. The author indicates that lower PSI was needed to shoot the nails without having them break in hardwood and no adjustment was needed for softwood like pine.

    Polymer Nails for CNC Workholding: As many of you running a CNC router probably already know - work holding can be a royal pain!  We have three differently-sized ShopBots at our TechShop location here in San Francisco, all three with their own unique limitations when it comes to…

  • LCHIEN
    replied
    I just looked up 18 ga. composite brads.
    Anco specifies a $250 brad nailer must be used with their nails.
    Senco speficies a $221 brad nailer must be used with their nails.
    Senco says the nailer is exclusively for composite brads so you can't fire steel brads.

    Not clear on interchangeability between brands, but it definitely sounds like you need a special and costly nailer that can't be used for anything else.
    And they are not cheap... 1" 18 ga costs $20+ for 2000 brads.

    Leave a comment:


  • jussi
    replied
    Originally posted by atgcpaul
    It's very impressive. Above you said the cutting size was 48x32. How did you get to 80" for this piece? BTW, I can't find the difference in height you mentioned.

    I learned this weekend that there are composite Brad nails you can use to hold down workpieces to the spoil board and they can be routed through. It's unrelated to your post, but thought it was a cool idea.
    sorry I mis typed. The piece is 30” tall. Wow I didn’t know about composite nails. That’s interesting and I’ll have to look into it. I wonder if they’re stable enough to go through hardwood though. Honestly clamping (for me anyways) is kind of a pain. Since many times anywhere you place the clamps will interfere with the path of the router. In which case I usually go with the blue tape method.

    Leave a comment:


  • atgcpaul
    replied
    It's very impressive. Above you said the cutting size was 48x32. How did you get to 80" for this piece? BTW, I can't find the difference in height you mentioned.

    I learned this weekend that there are composite Brad nails you can use to hold down workpieces to the spoil board and they can be routed through. It's unrelated to your post, but thought it was a cool idea.

    Leave a comment:


  • jussi
    replied
    There was some sanding but not as much as I anticipated. Most of it was actually sanding the flat spots outside the carving. Honestly I was surprised at how smooth it came off the machine. But then again I was doing a 4% passover using a 1/16" tapered ball nose bit. When I paused the machine for the night (didn't think my neighbors would appreciate a router running all night) and start again the next morning the depth would drop between 1/64 to 1/32 so it developed a small ledge which I had to sand and blend the 2 surfaces together. You can still see a bit of it because I didn't realize I didn't sand enough till I put on the finish.

    It's around 18" wide by 80" tall and just under 2" thick

    Leave a comment:


  • atgcpaul
    commented on 's reply
    Is that finish straight off the machine or did you do some sanding?

    What's the scale of that piece? The detail of the rosary beads is incredible.

  • jussi
    replied

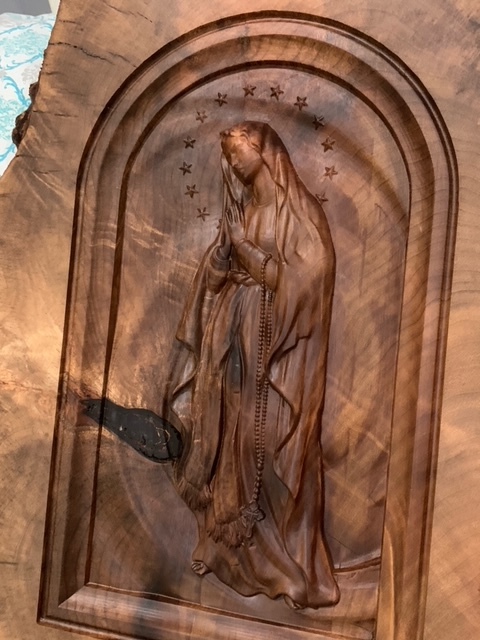

    Haven't gotten as much time on the cnc as I would like but here is my first 3D carving. The design isn't mine. No where near that talented. Took a mere 28 hours. Not including the first screwed up attempt which took 14 hours.
    Attached Files

    Leave a comment:


  • jussi
    replied
    Here it is finally installed. It's from Onefinity. Journeyman model with their QCW frame. 48 x 32 cutting capacity. I bought an aftermarket screen and dust collection. Both of which I'm very happy with especially the DC. I flattened the spoilboard which makes ALOT of dust if there's no DC (damhik) and it got 95% of the dust. So far all I've done is flatten the spoilboard put in a grid and added some numbers. As you can see I had to re do the numbers because I screwed up with alignment. Plus when I did the dog holes I forgot to put diameter instead of radius for the hole size and the first 2 holes came out twice as big. Oh well it is a SPOIL board. Otherwise dead on accurate as you can see from the woodpecker square. It's what you expect from a cnc but it still surprised me.
    Attached Files

    Leave a comment:


  • capncarl
    commented on 's reply
    That would be a great idea, sharing the outfeed table/assembly table with the CNN! Except we all know that every time it’s needed for the other purpose the table would be full of clutter that would have to be piled somewhere else. I thought about making a cable “elevator” that would lift a CNC off my outfeed/assembly table and pull it up to the ceiling or partially into the attic, They do take up a lot of shop space.
    Last edited by capncarl; 01-09-2022, 12:36 AM.

  • mpc
    replied
    One of the woodworking magazines had an article showing a CNC support cart that doubled as the table saw outfeed table. Basically the CNC was put on a shelf below the table top; the top was mounted on hinges if I remember correctly. It was within the last year or two I think... That table top could serve as an assembly table or some other table if you don't need another outfeed table.

    mpc

    Leave a comment:


  • atgcpaul
    replied
    Ooh, nice. Looking forward to seeing what you will do with it

    Is it open on opposite ends so you can push a long board through?

    Leave a comment:


  • jussi
    replied
    Originally posted by LCHIEN
    How large a workpiece can handle?

    Whats the area required for the machine?
    Cutting area is 48 x 32. Floor space is a whopping 70 x 48. I've seen a couple of designs that attach the table to the wall and allow it to pivot up. The company that makes my cnc also has a similar version they sell. I'd rather not do that and for now I'll just put it on casters and see how well I can still move around in the shop.

    Leave a comment:


  • dbhost
    replied
    One of the guys at my church has a nice CNC rig. Love what he can do with the thing. Terrified of how much space it takes up in his shop. However he's in one of the newer homes in our area, with a 2 car garage sized for Suburbans, not Toyota Corollas.... And it's a 2 story so he doesn't share space with his wife in there...

    I'd love to be able to use one. Not sure I would want to try to squeeze one in my current small shop...

    Leave a comment:


  • LCHIEN
    replied
    How large a workpiece can handle?

    Whats the area required for the machine?

    Leave a comment:


  • jussi
    replied
    It’s just the router for now but has an option of putting on a laser head. Which I plan to do in the future but probably not anytime soon.

    I knew the dimensions before buying but realization dawned yesterday as I was making space for it.

    Leave a comment:
