    New shop building is complete

    This is my 1000th post.
    It took almost two years, but the shop building is now complete. Had a bit of a hectic winter and spring. My mom had a stroke on New year's eve and after two months at Mayo clinic, three months months in a nursing home getting additional physical therapy, and a month living with my sister and continued therapy, she's now back at home with my dad and they are doing quite well for 87 and 90 year olds.

    The previous thread on the shop build is here:

    The mason finished his part of the new garage Saturday morning. Here's the progress thus far. https://www.sawdustzone.org/filedata/fetch?photoid=821771&type=sma

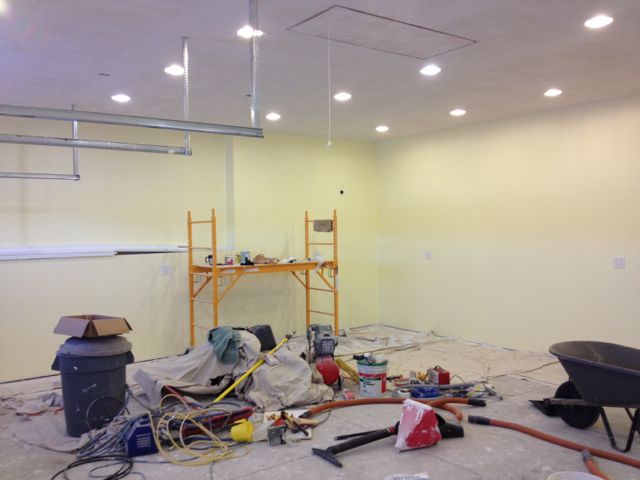

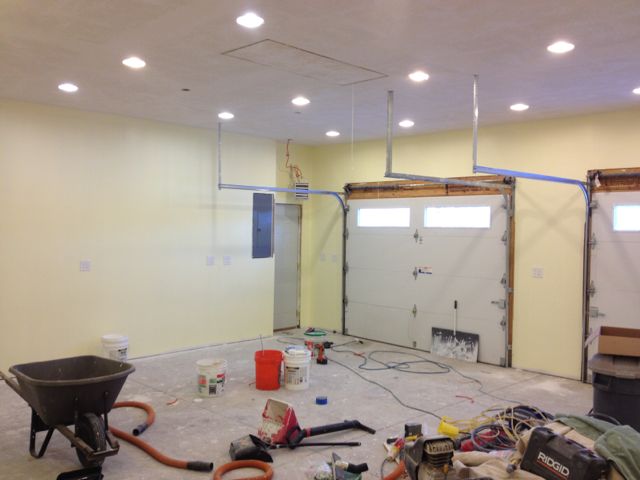

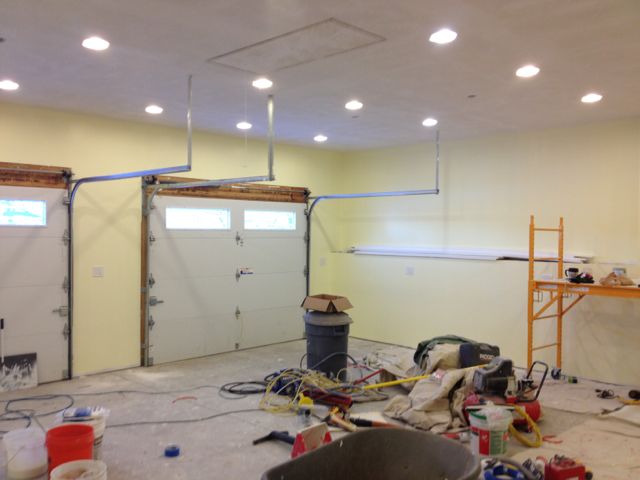

    Sheetrock was finished on November 30, 2012 and the first three pictures were taken on December 31st after the mudding and taping on the walls and ceiling were complete, the ceiling was textured, I still need more practice at that, and the walls painted.







    I've started moving my tools in last weekend and here are a bunch of photos that were taken today. Nothing is hooked up yet and I still need to figure out dust collection

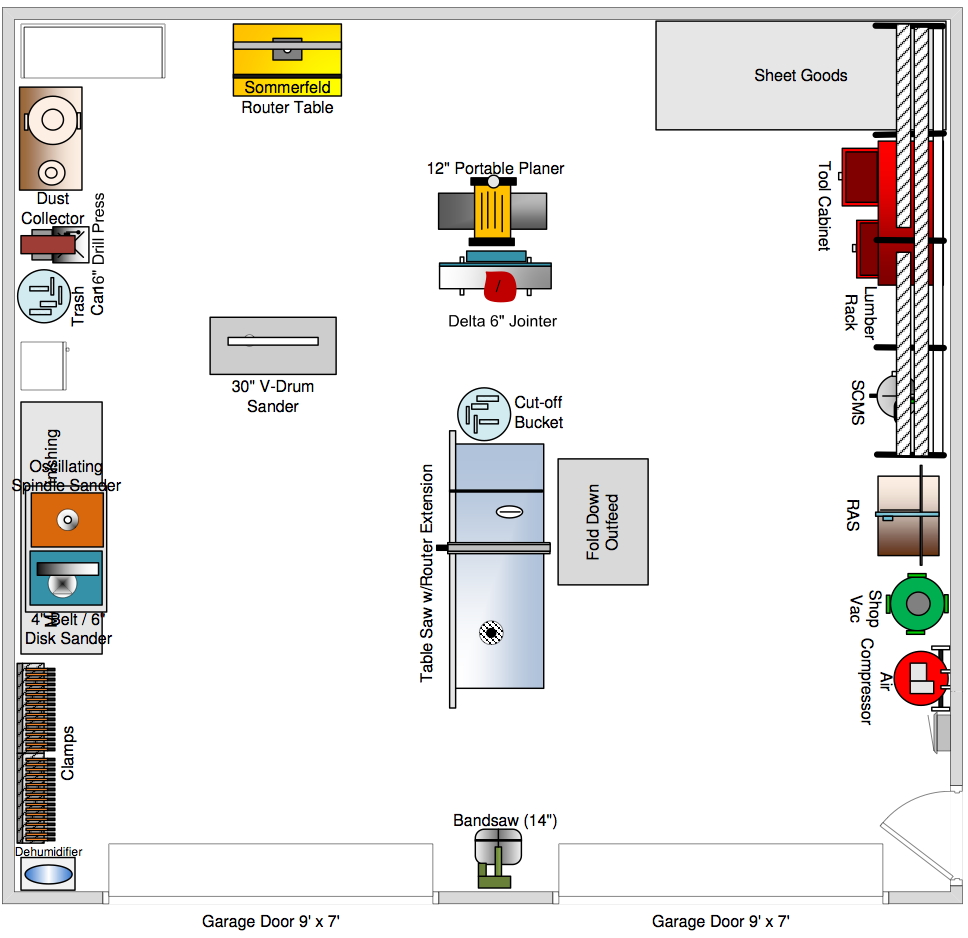

    Layout

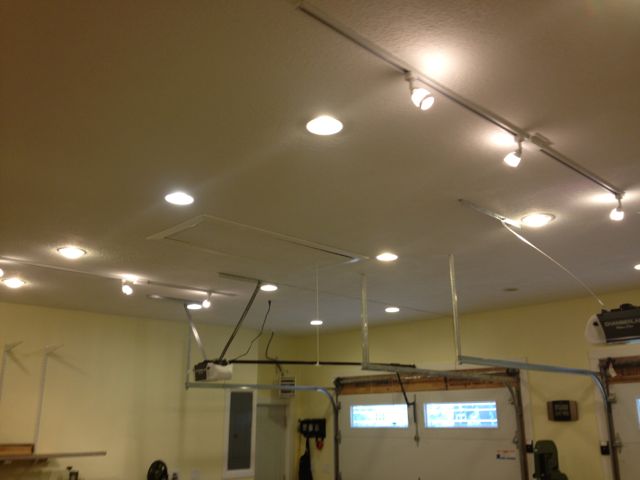

    Lighting

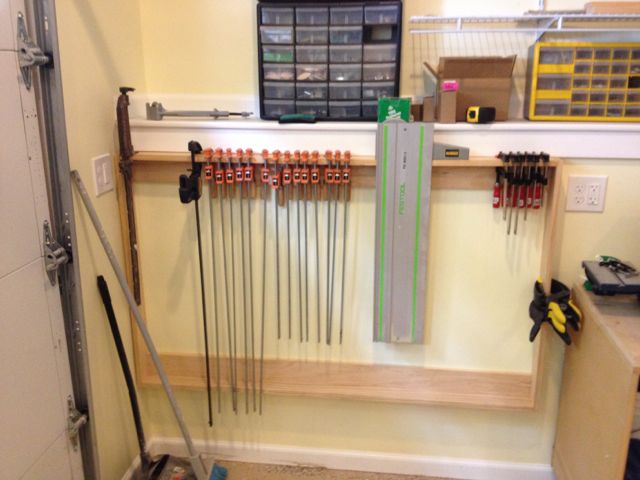

    Clamp Rack


    Ultimate tool stand which has been in progress for a decade.

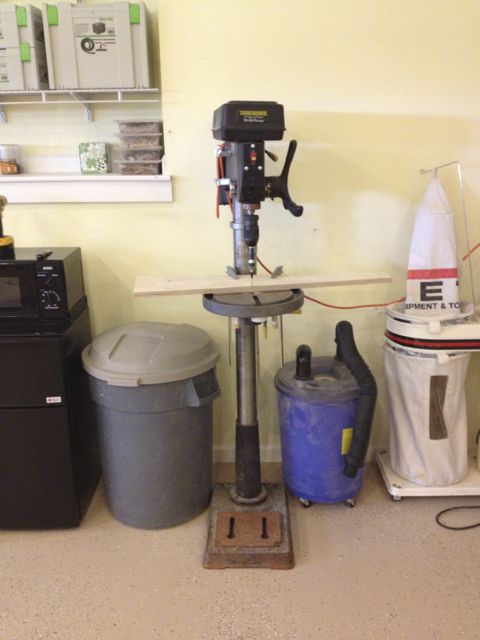

    Drill Press, needs some rust abatement

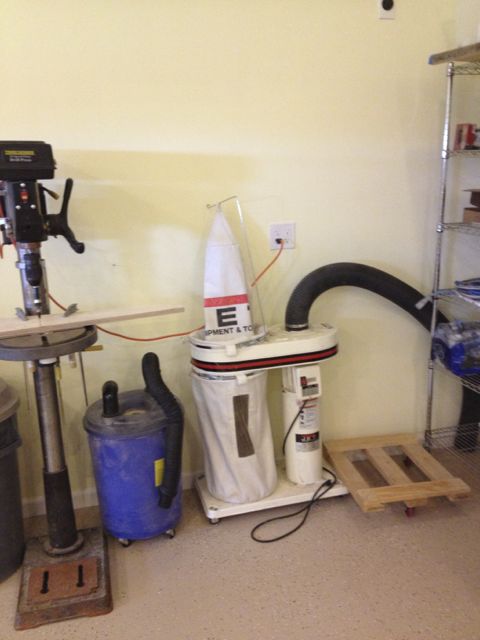

    Dust Collector, this is on the list to be upgraded

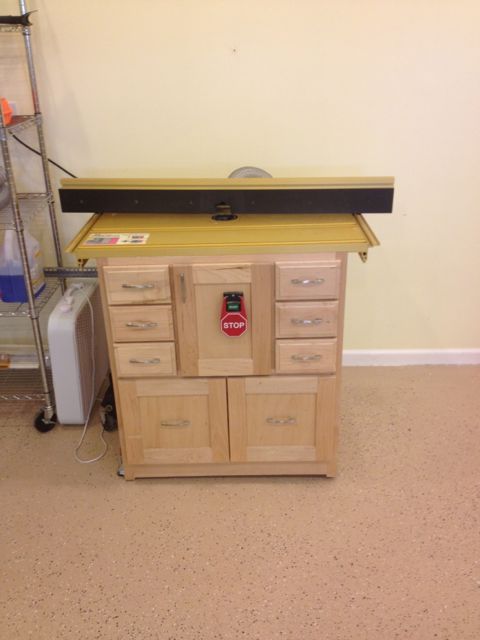

    Router Table

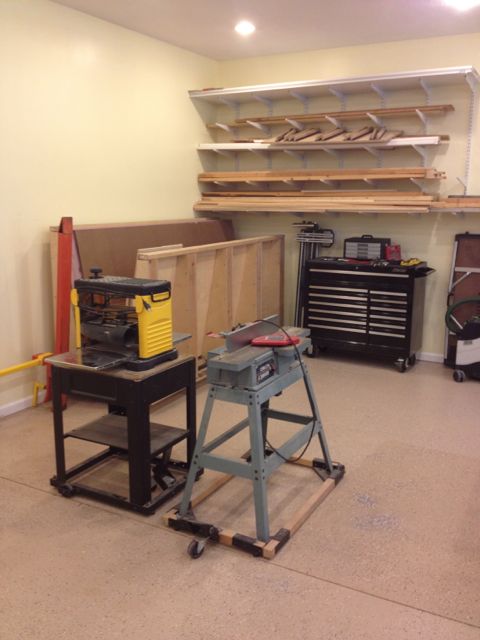

    Planer and Jointer

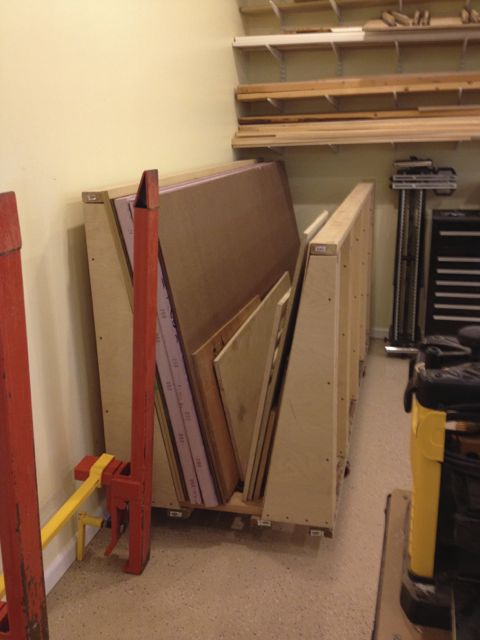

    Sheet Goods storage

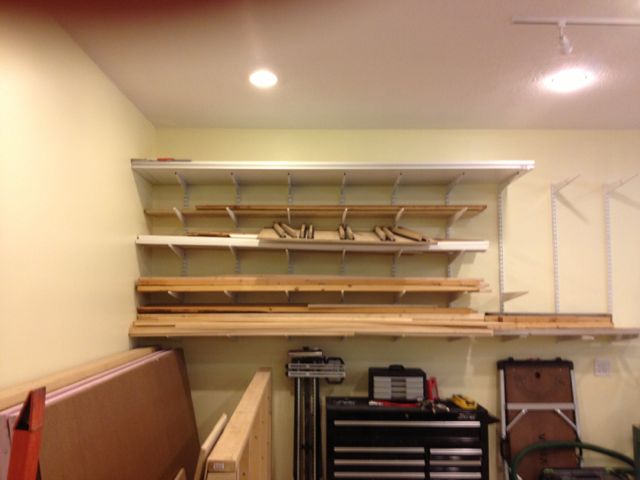

    Lumber Rack

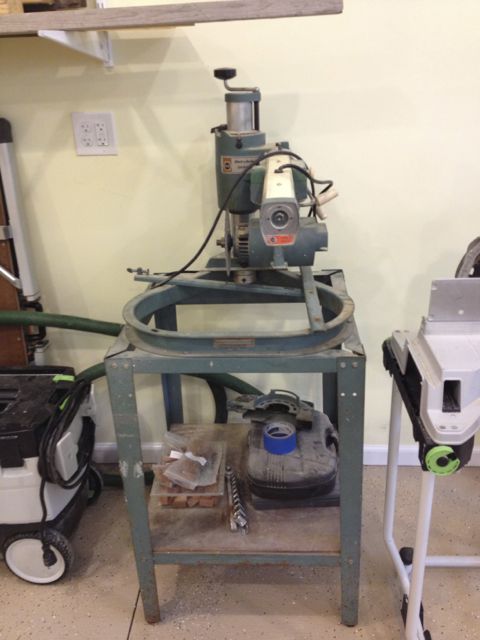

    My dad's old Dewalt Black and Decker RAS which needs alot of work

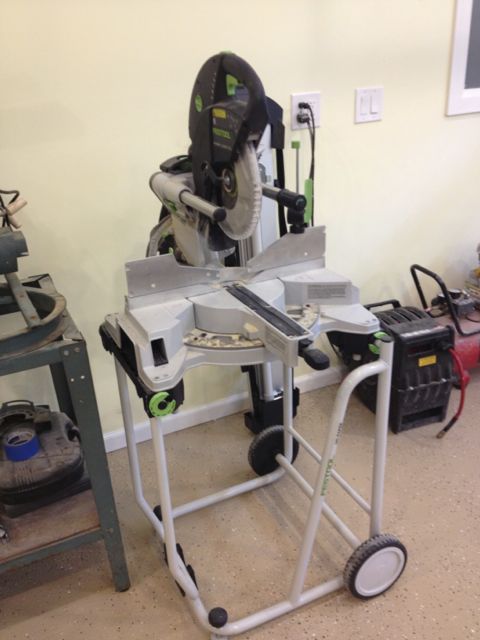

    The Kapex

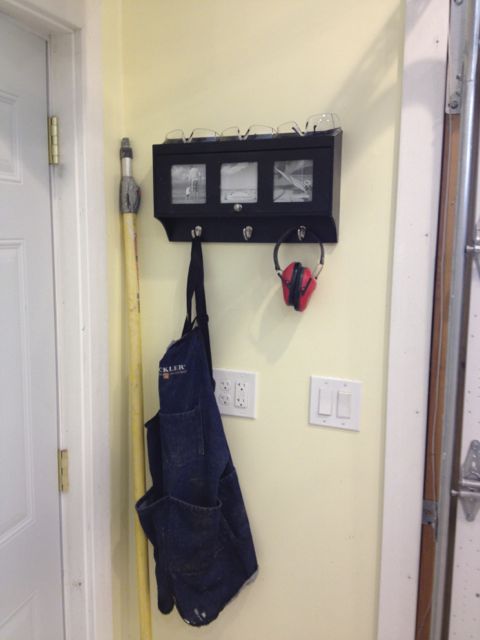

    Safety gear

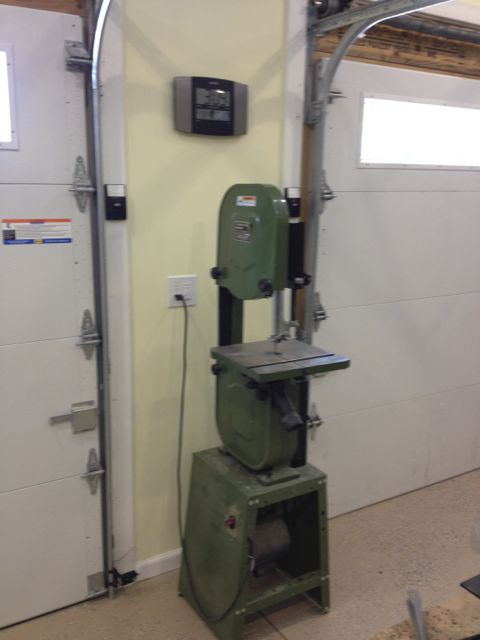

    And my Band Saw

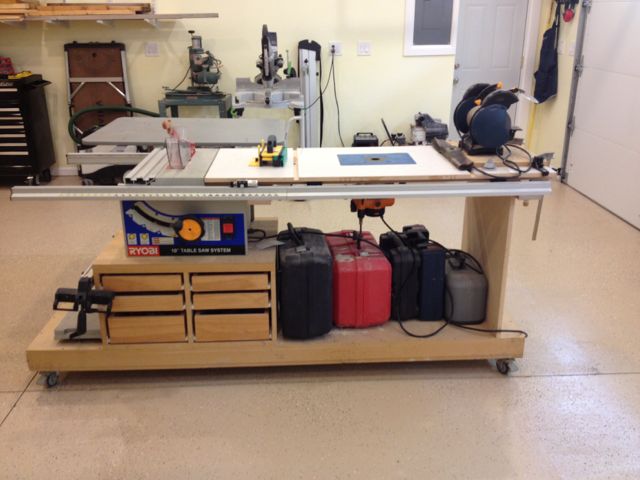

    My BT3100 with a wide table kit and router table

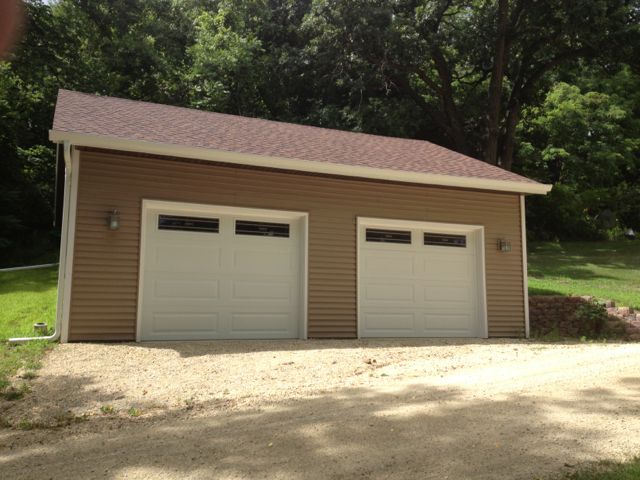

    Finally, the exterior with the lights on it.
    Last edited by twistsol; 07-29-2013, 12:21 AM.
    Chr's
    __________
    An ethical man knows the right thing to do.
    A moral man does it.
  • LCHIEN
    Internet Fact Checker
    • Dec 2002
    • 20977
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2
    great shop space. Kapex = "Capital Expenditure" = Festool CMS?

    Size, looks like about 25' x 25'? 625 Sq ft?
    Last edited by LCHIEN; 07-29-2013, 12:56 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment

    • Knottscott
      Veteran Member
      • Dec 2004
      • 3815
      • Rochester, NY.
      • 2008 Shop Fox W1677

      #3
      That's a monumental 1000th post! Congrats....the shop looks great, and I'm jealous as heck!
      Happiness is sort of like wetting your pants....everyone can see it, but only you can feel the warmth.

      Comment

      • thestinker
        Senior Member
        • Oct 2005
        • 613
        • Fort Worth, TX, USA.

        #4
        Super nice!!!
        Awww forget trying to fix it!!!! Lets just drink beer

        Comment

        • atgcpaul
          Veteran Member
          • Aug 2003
          • 4055
          • Maryland
          • Grizzly 1023SLX

          #5
          Very nice! All that light must be great.

          How far do you have to go from the house to get to the shop?

          How will you heat it in the winter?

          Comment

          • Pappy
            The Full Monte
            • Dec 2002
            • 10453
            • San Marcos, TX, USA.
            • BT3000 (x2)

            #6
            Fantastic shop. Looking at the layout diagram, I was also trying to figure out the size.
            Don, aka Pappy,

            Wise men talk because they have something to say,
            Fools because they have to say something.
            Plato

            Comment

            • Bill in Buena Park
              Veteran Member
              • Nov 2007
              • 1865
              • Buena Park, CA
              • CM 21829

              #7
              Sweet shop space. Looks to be about 25x25? Do you plan to run ducting for the dc or keep the dc mobile?
              Bill in Buena Park

              Comment

              • Denco
                Guest
                • Mar 2003
                • 426
                • Coming soon: California
                • BT3100

                #8
                That is a very beautiful shop!
                *****Measure twice, cut once.....rats, back to the lumber yard.*****

                Comment

                • twistsol
                  Veteran Member
                  • Dec 2002
                  • 2901
                  • Cottage Grove, MN, USA.
                  • Ridgid R4512, 2x ShopSmith Mark V 520, 1951 Shopsmith 10ER

                  #9
                  The shop is 25'4" x 24'6" on the inside and 28x26 foundation footprint. 25x25 is about as accurate a guess as you can get without a tape measure.

                  It's about 110' from the back door of the house to the door of the shop.

                  I have a Dayton G73 electric heater. My highest electric bill for the shop was $175 last winter and that was before the attic insulation was in. We also had a much colder than normal winter. I'm guessing around $100 to $150 a month to heat it. It's on its own 200amp service because the panel at the house is full.

                  I do plan on running DC piping and upgrading the dust collector. I put in a 30amp 220v line on the wall in the corner where the DC is so the plan is to get a 2-3 hp cyclone in the future. I'll be relying on the little DC650 and shop vacs for the foreseeable future. Three kids in college is putting a damper on the budget

                  I may have gone overboard on the lighting, but better too much than too little. There are 20 can lights in the ceiling and two eight foot banks of track lighting with spots. I did notice that I have a light out when posting the pictures. My brother in law has my ladders and scaffold so I have no way to change it at the moment.
                  Chr's
                  __________
                  An ethical man knows the right thing to do.
                  A moral man does it.

                  Comment

                  • Cochese
                    Veteran Member
                    • Jun 2010
                    • 1988

                    #10
                    **** of a shop. Be proud.
                    I have a little blog about my shop

                    Comment

                    • BadeMillsap
                      Senior Member
                      • Dec 2005
                      • 868
                      • Bulverde, Texas, USA.
                      • Grizzly G1023SL

                      #11
                      I know the feeling of "new shop pride" and "man I'm glad it's done" very well!!

                      Looks great ... now go work IN the shop instead of ON the shop ... best feeling there is!!
                      "Like an old desperado, I paint the town beige ..." REK
                      Bade Millsap
                      Bulverde, Texas
                      => Bade's Personal Web Log
                      => Bade's Lutherie Web Log

                      Comment

                      • LinuxRandal
                        Veteran Member
                        • Feb 2005
                        • 4889
                        • Independence, MO, USA.
                        • bt3100

                        #12
                        Looks good. I have to ask, how do you like that v drum sander? Were the plans accurate, or did you have to modify them?
                        She couldn't tell the difference between the escape pod, and the bathroom. We had to go back for her.........................Twice.

                        Comment

                        • gsmittle
                          Veteran Member
                          • Aug 2004
                          • 2788
                          • St. Louis, MO, USA.
                          • BT 3100

                          #13
                          Originally posted by twistsol
                          [snip] Three kids in college is putting a damper on the budget
                          [snip]
                          Yeah, that's true!

                          Oh, and YOU SUCK!!!!!

                          g.
                          Smit

                          "Be excellent to each other."
                          Bill & Ted

                          Comment

                          • Black wallnut
                            cycling to health
                            • Jan 2003
                            • 4715
                            • Ellensburg, Wa, USA.
                            • BT3k 1999

                            #14
                            Nice shop! Looking forward to seeing your posts in finished projects.
                            Donate to my Tour de Cure


                            marK in WA and Ryobi Fanatic Association State President

                            Head servant of the forum

                            Comment

                            • jussi
                              Veteran Member
                              • Jan 2007
                              • 2162

                              #15
                              Awesome looking shop.
                              I reject your reality and substitute my own.
