    Another planter stand.

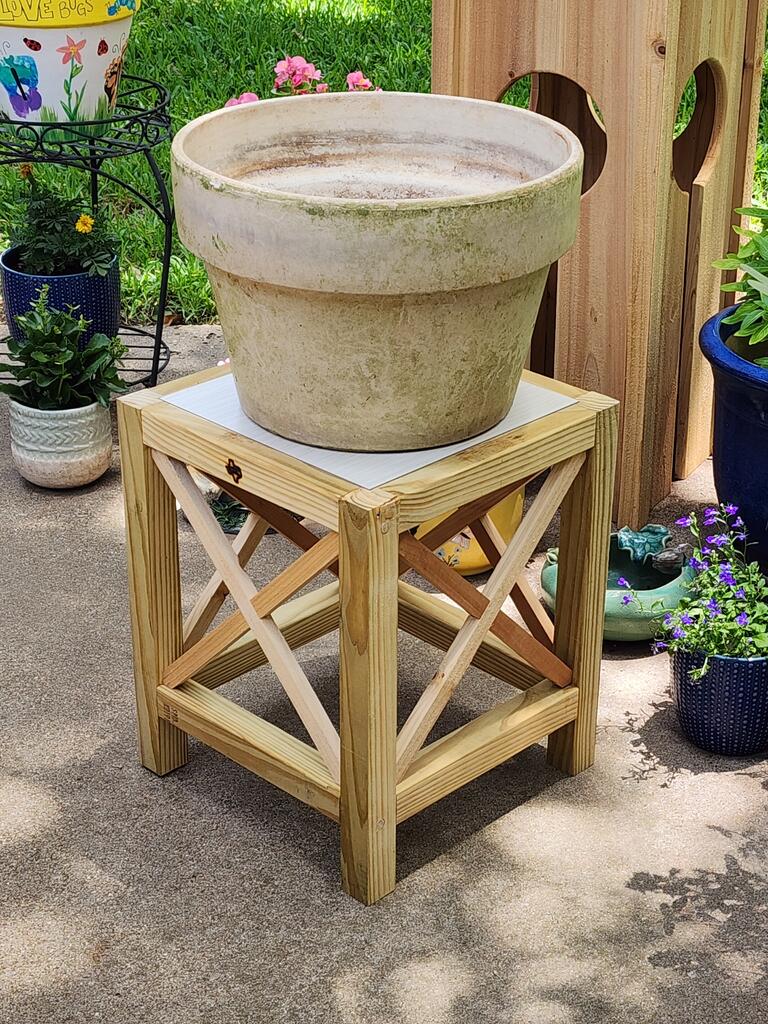

    Made another planter stand, This one from treated pine 2x4 ripped to 2x2 and using pocket screws. And a ceramic floor tile sample rabbeted into the top.
    Click image for larger version  Name:	20240510_133539.jpg Views:	5 Size:	216.6 KB ID:	858845

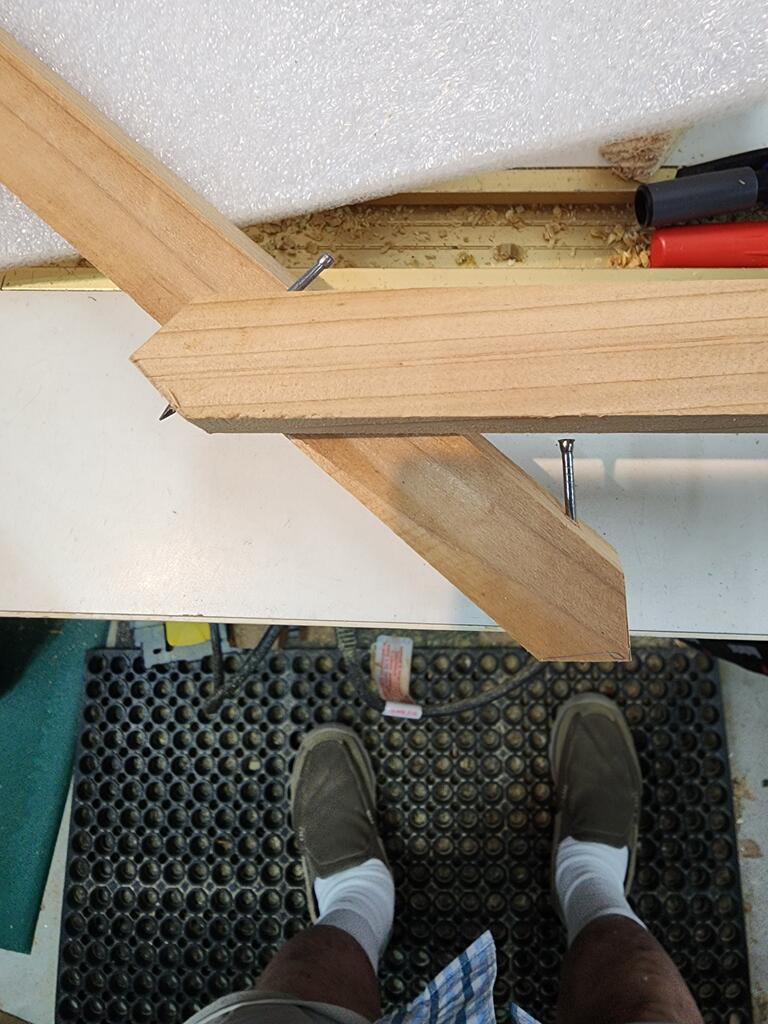

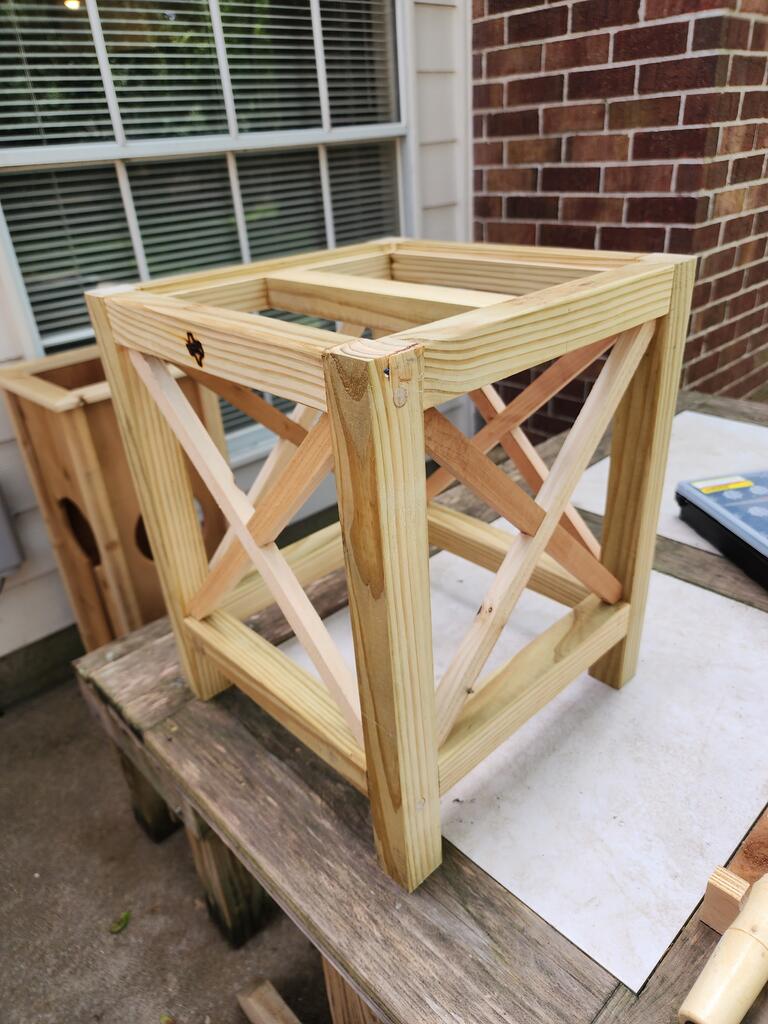

    The frame was quite strong, the braces I added for decorative reasons, from cedar strips. The frame was pretty easy, the strips proved a real bear. I half lapped the crossovers. Fastening to the frame was tough because the narrow space, closing angle to toe-nail them was impossible to get a hammer in there and the sloping wood makes entry of the nails difficult..

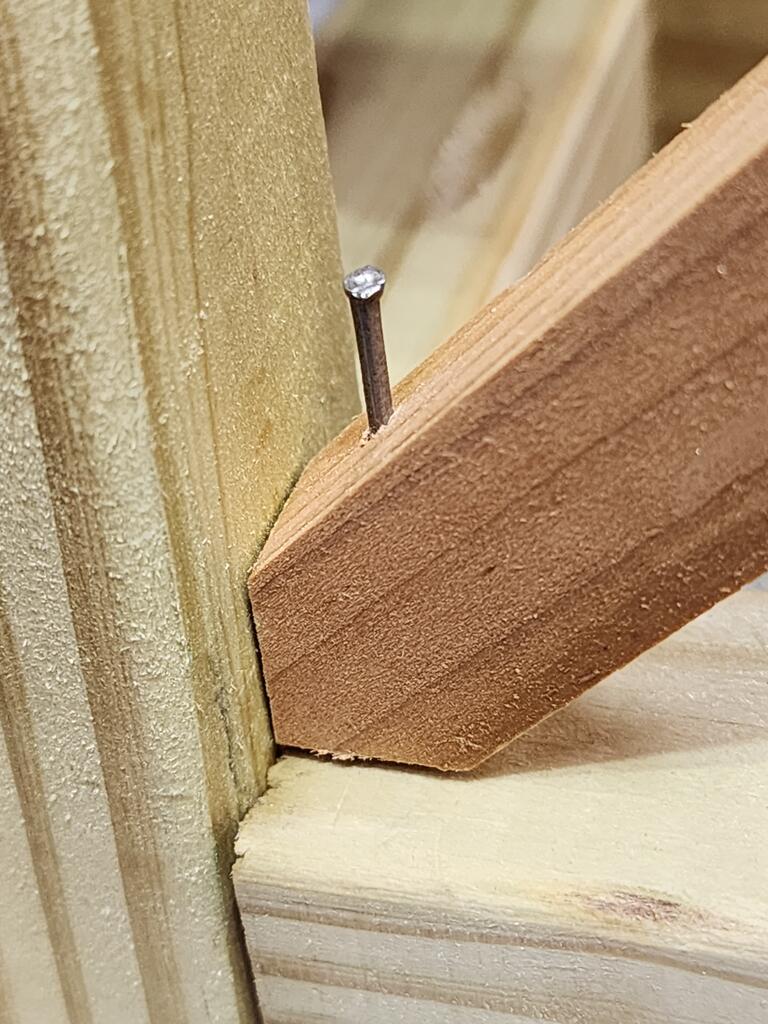

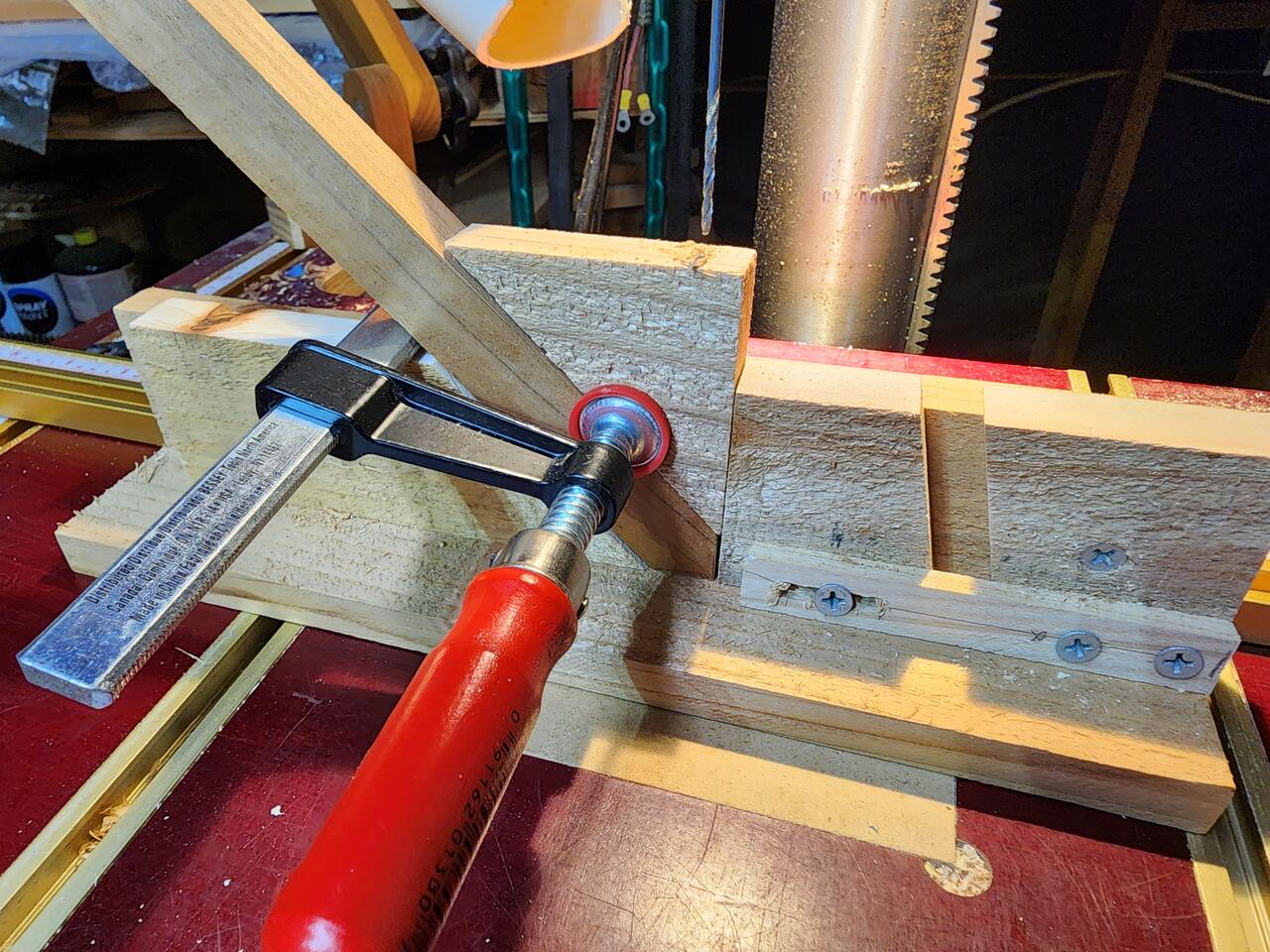

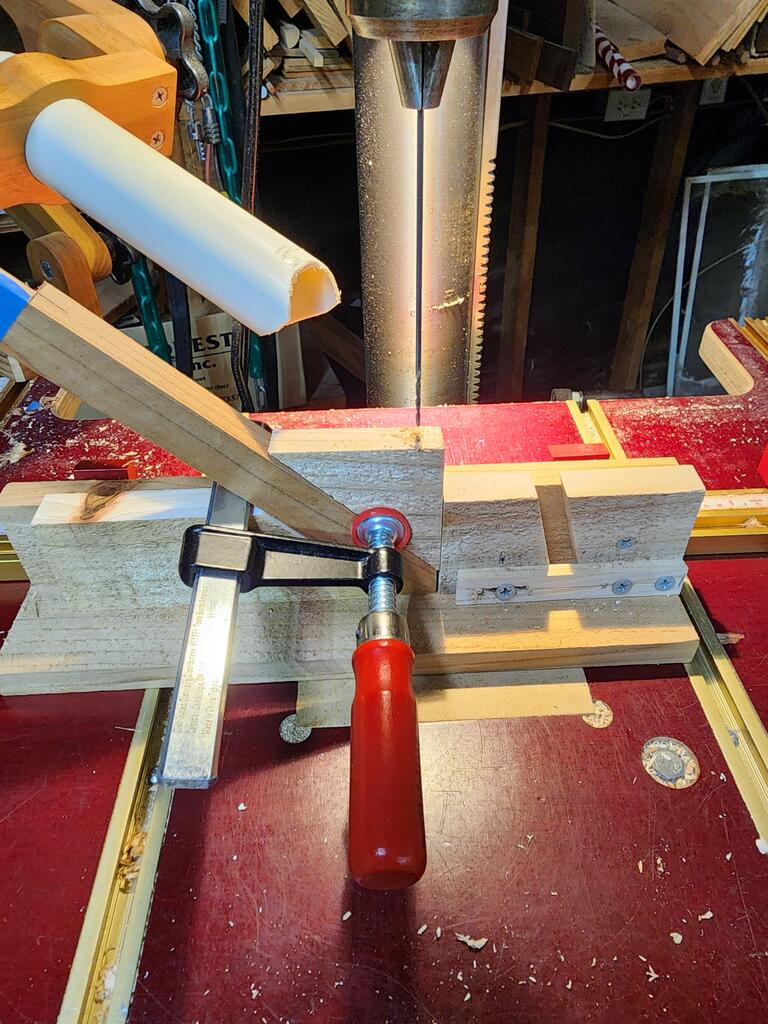

    I ended up picking a finish nail and made a drilling guide jig to make a pilot hole that held the nail. Took a 6" long 5/64" bit so a guide was necessary to keep the bit from deflecting on an angled entry.
    Click image for larger version  Name:	20240509_232042.jpg Views:	4 Size:	238.9 KB ID:	858849
    Click image for larger version  Name:	20240509_232547.jpg Views:	4 Size:	113.0 KB ID:	858848 Click image for larger version  Name:	20240509_233547.jpg Views:	4 Size:	128.7 KB ID:	858847 Click image for larger version  Name:	20240509_233555.jpg Views:	4 Size:	64.1 KB ID:	858846 Click image for larger version  Name:	20240510_114053.jpg Views:	0 Size:	110.4 KB ID:	858861

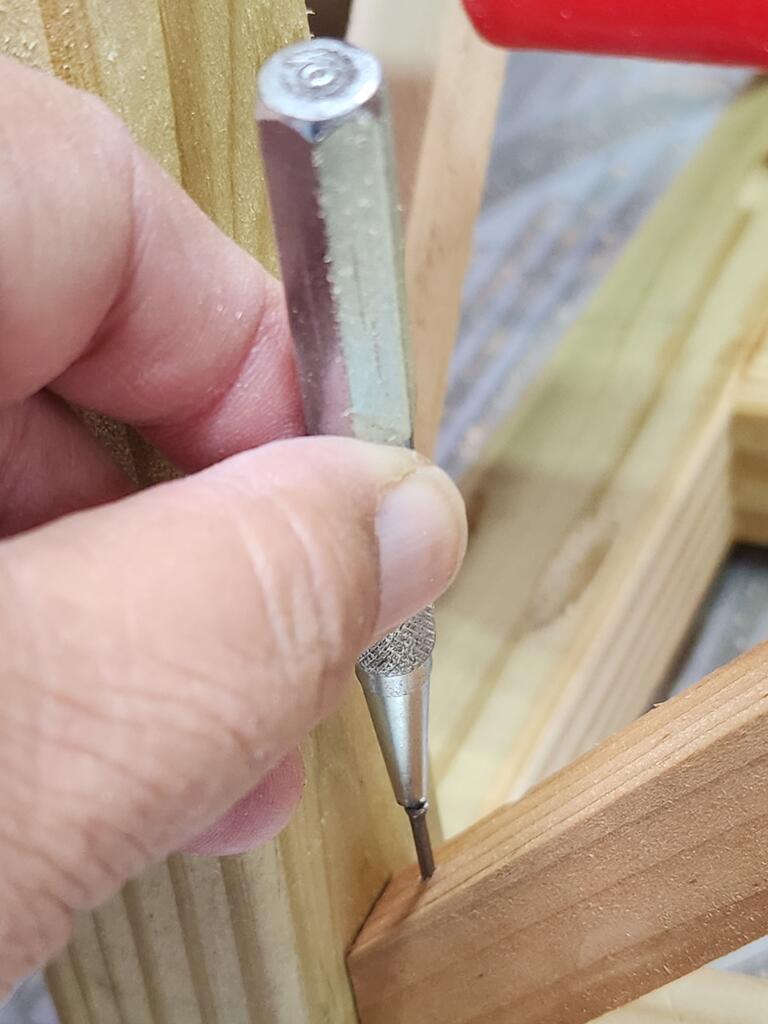

    It was still hard to nail, i used a nail set and then a longer improvised nail set from a steel rod and still ended up bending a couple of nails.




    Anyway it was an interesting experience. Next time a small screw and a long driver instead of a nail might be easier to drive in the small, narrow, limited overhead space.
    Attached Files
    Last edited by LCHIEN; 05-11-2024, 12:21 AM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • leehljp
    Just me
    • Dec 2002
    • 8470
    • Tunica, MS
    • BT3000/3100

    #2
    THAT is NICE! My hat is off to you! Four Perfect "Xs" are not easy!
    Hank Lee

    Experience is what you get when you don't get what you wanted!
