Small T-nut for the left side of BT3 rip fence or front of miter fence

Collapse
X

  • Time
  • Show
Clear All
new posts
  • LCHIEN
    Internet Fact Checker
    • Dec 2002
    • 21218
    • Katy, TX, USA.
    • BT3000 vintage 1999

    Small T-nut for the left side of BT3 rip fence or front of miter fence

    I have found a perfect T-nut for the front of the BT3 miter fence and for the left side of the rip fence (same extrusion used both places)

    Its actually a weld nut, but fits the T-slot described above.
    Click image for larger version  Name:	weld nut.jpg Views:	0 Size:	114.8 KB ID:	857152
    Weld Nut: #10-24 Thread, Tab, 1/32 in Base Ht, 3/8 in Base Wd, 5/8 in Base Lg, Steel, 50 PK
    Item 1LAJ3 Mfr. Model 1LAJ3​ (WW Graingers)

    The fence slot is .400" high and .200 deep. The T-nuts are 0.375" high so they fit nicely with an adequate but not sloppy clearance. About .1" thick and the protrusion fits in the slot on the fence. The hole is threaded 10-24 a common screw size (10-32 is also common but this is 10-24).
    The closed back of the slot means that the screw length is limited.
    I use it for attaching a sacrificial rip fence face or a tall fence or a long rip fence. and for the miter fence you can attach a long miter fence with stops.
    If you use a 3/4" thick 1x2 or 1x3 or 1x4 board then a counter sunk 3/4 or even 1/2" screw will work nicely.
    A countersink of 1/2" depth and a 1/2" screw will bury the head in the fence out of the way. Best to try and adjust deeper if needed.
    Final note, I drill the hole for the bolt and nut 15/16ths up from the bottom of the fence being installed. This leaves 1/16th clearance so the fence does not drag.

    I bought a pack of 50 of these which is way more than I need, but they're kind of hard to find except at the specialty industrial stores and shipping tends to be high.
    If you want 2 or 4 of these, drop me a PM with your address and I'll mail you some in the interest of promoting the saw.
    ​A pair of these nuts should easily hold a auxiliary fence as I described above.
    Attached Files
    Last edited by LCHIEN; 12-09-2023, 10:03 PM.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions
  • LCHIEN
    Internet Fact Checker
    • Dec 2002
    • 21218
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2
    Gallery of pictures attached - click on the images for full size picture

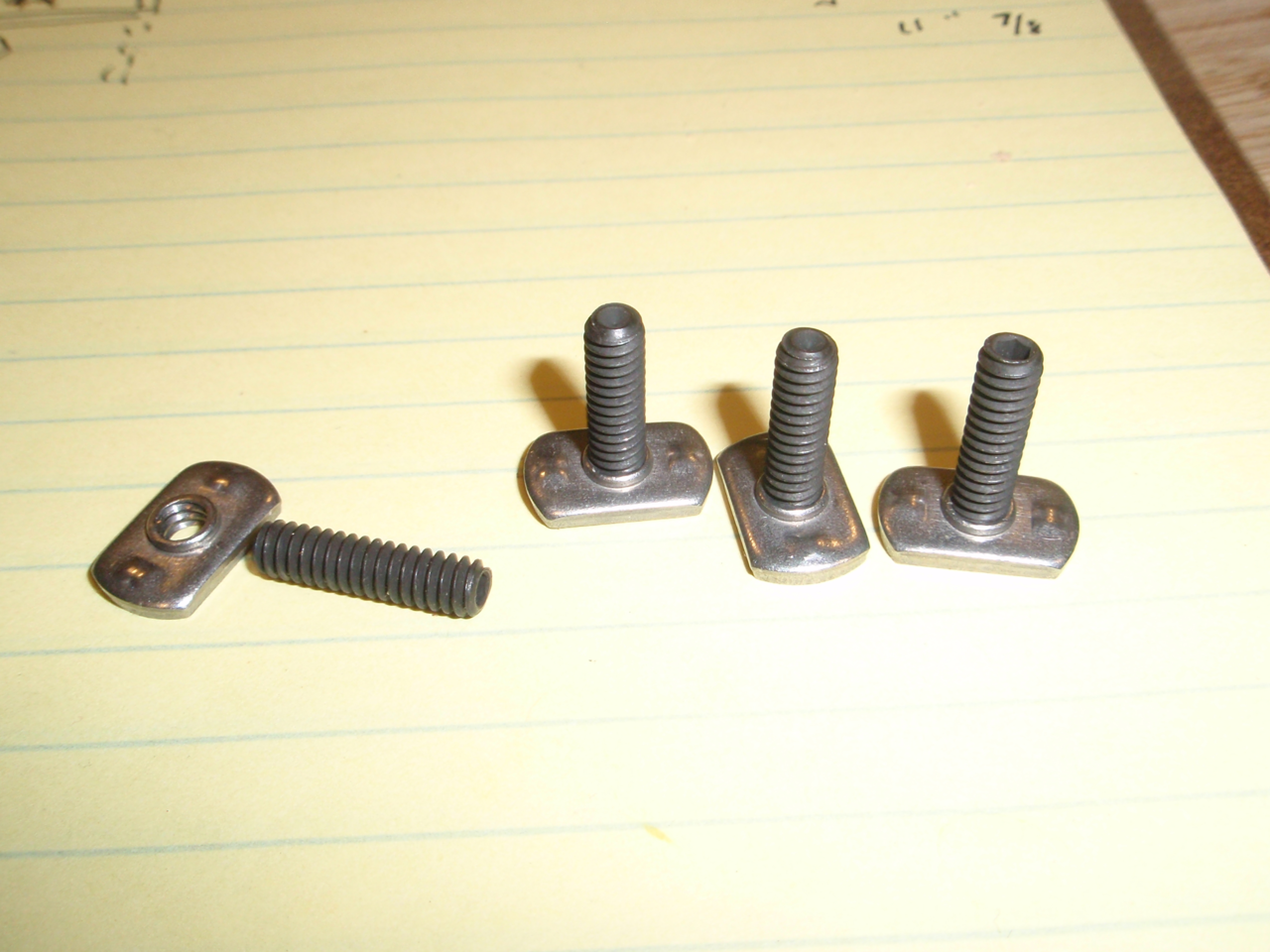

    T-nuts and some 10-24 x 1/2" screws I had
