  • How to drill perfectly placed hole into outside corner

    Trying to drill into a outside 90 degree corner, 45° to each side, is tough, the drill bit keeps wanting to walk off.
    You can whack a small flat on the corner.

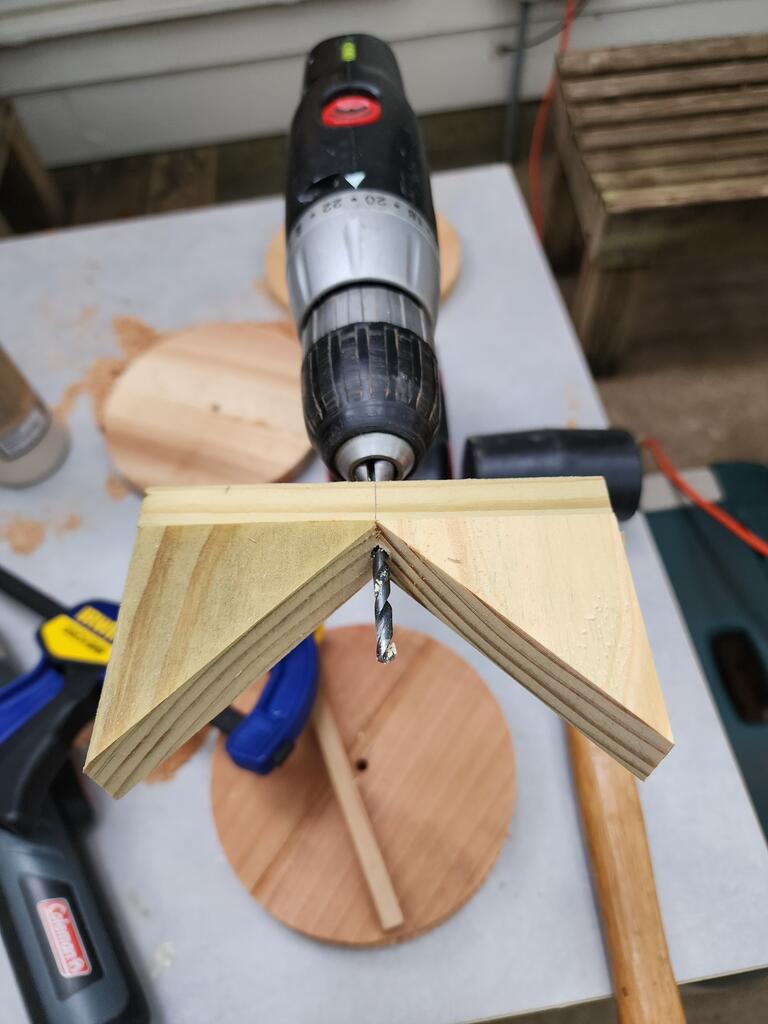

    But here is a way I did it perfectly. Using this corner drill jig
    Click image for larger version  Name:	20240425_182011.jpg Views:	0 Size:	66.0 KB ID:	858655

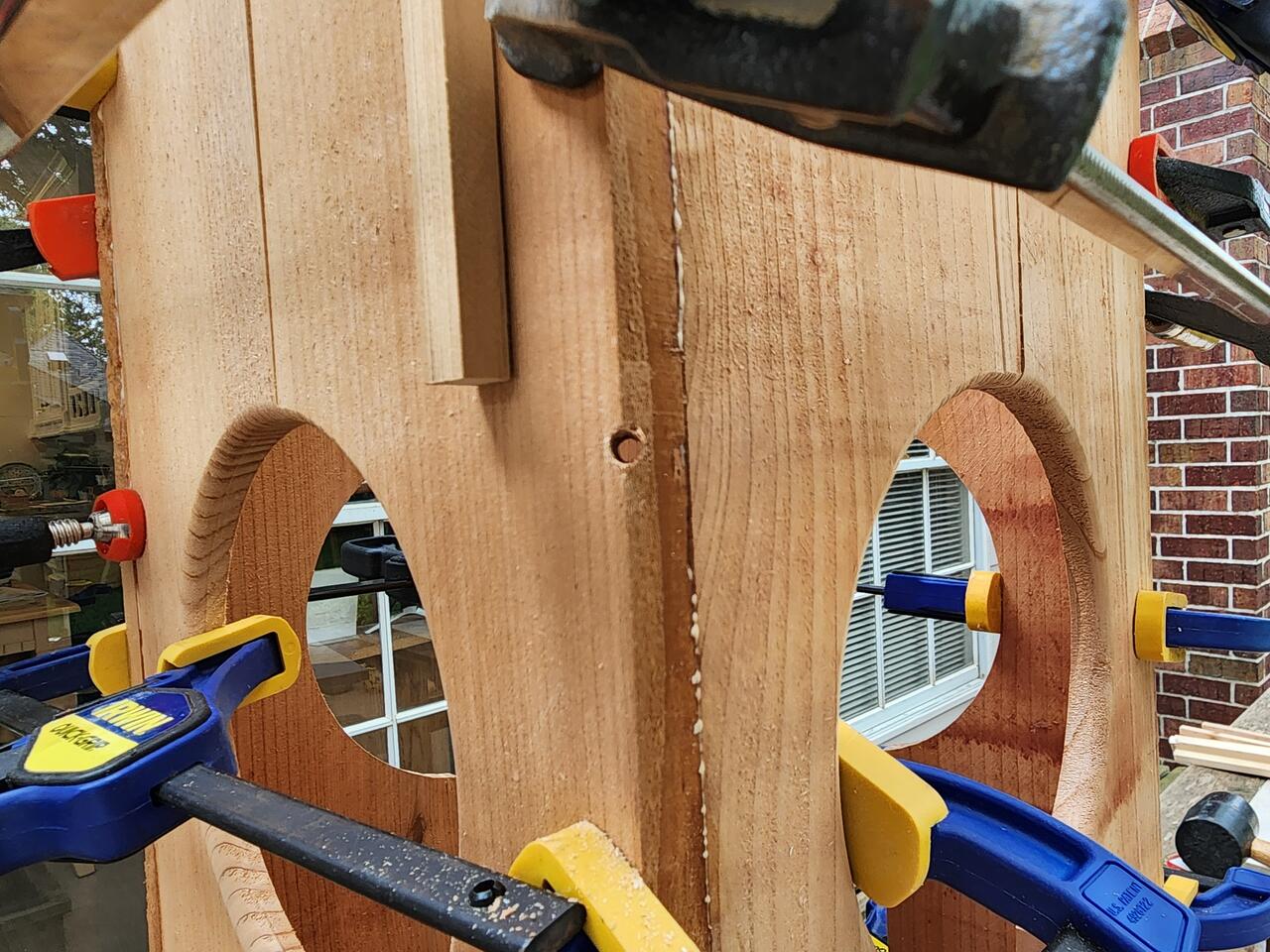

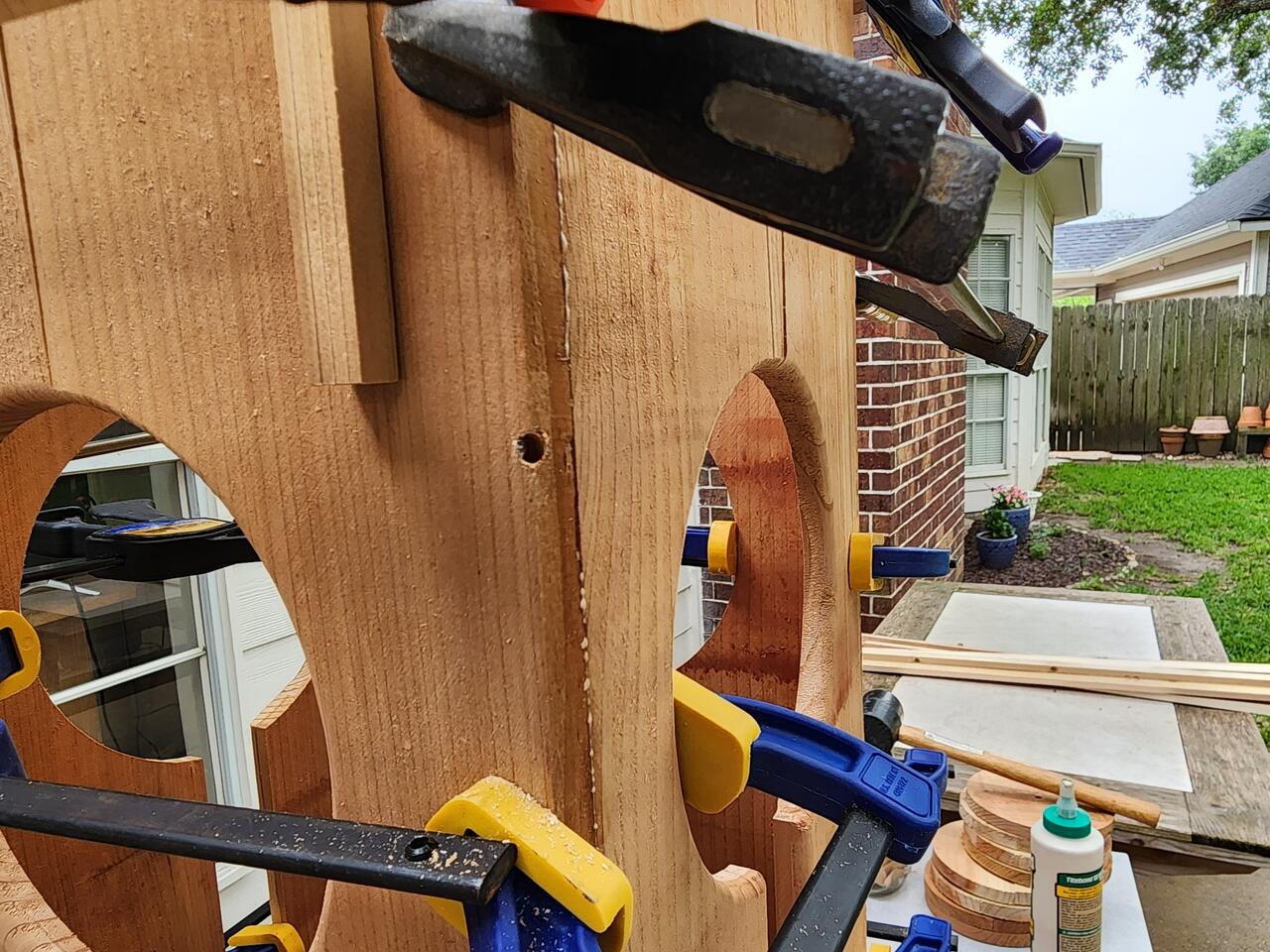

    Using the drilling jig, One hand is enough to hold the jig while drilling. The small board touching the top of the jig is my measurement stick. I use that to set the precise reproducible location of the hole relative to the top of the workpiece.
    Click image for larger version  Name:	20240426_130024.jpg Views:	0 Size:	264.0 KB ID:	858654

    Click image for larger version  Name:	20240426_130046.jpg Views:	0 Size:	222.5 KB ID:	858652

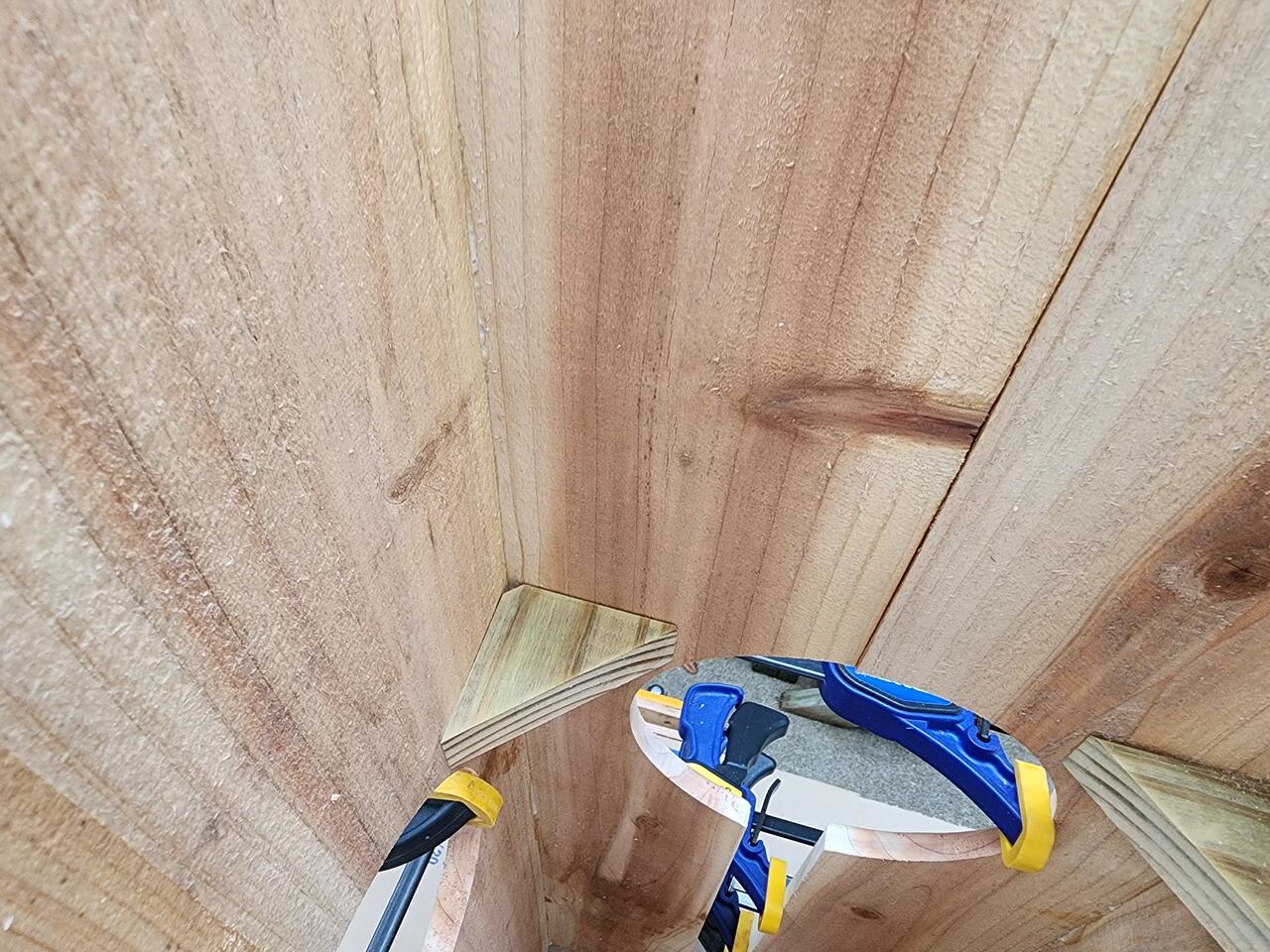

    I was able to attach this brace block to the inside. I prepared it by cutting off the tip and drilled a pilot hole in the tip on the drill press prior to assembly. The pilot hole location in the center of the brace and the precise location of the hole puts the brace at a precise location, too.
    Click image for larger version  Name:	20240425_181920.jpg Views:	0 Size:	230.5 KB ID:	858651

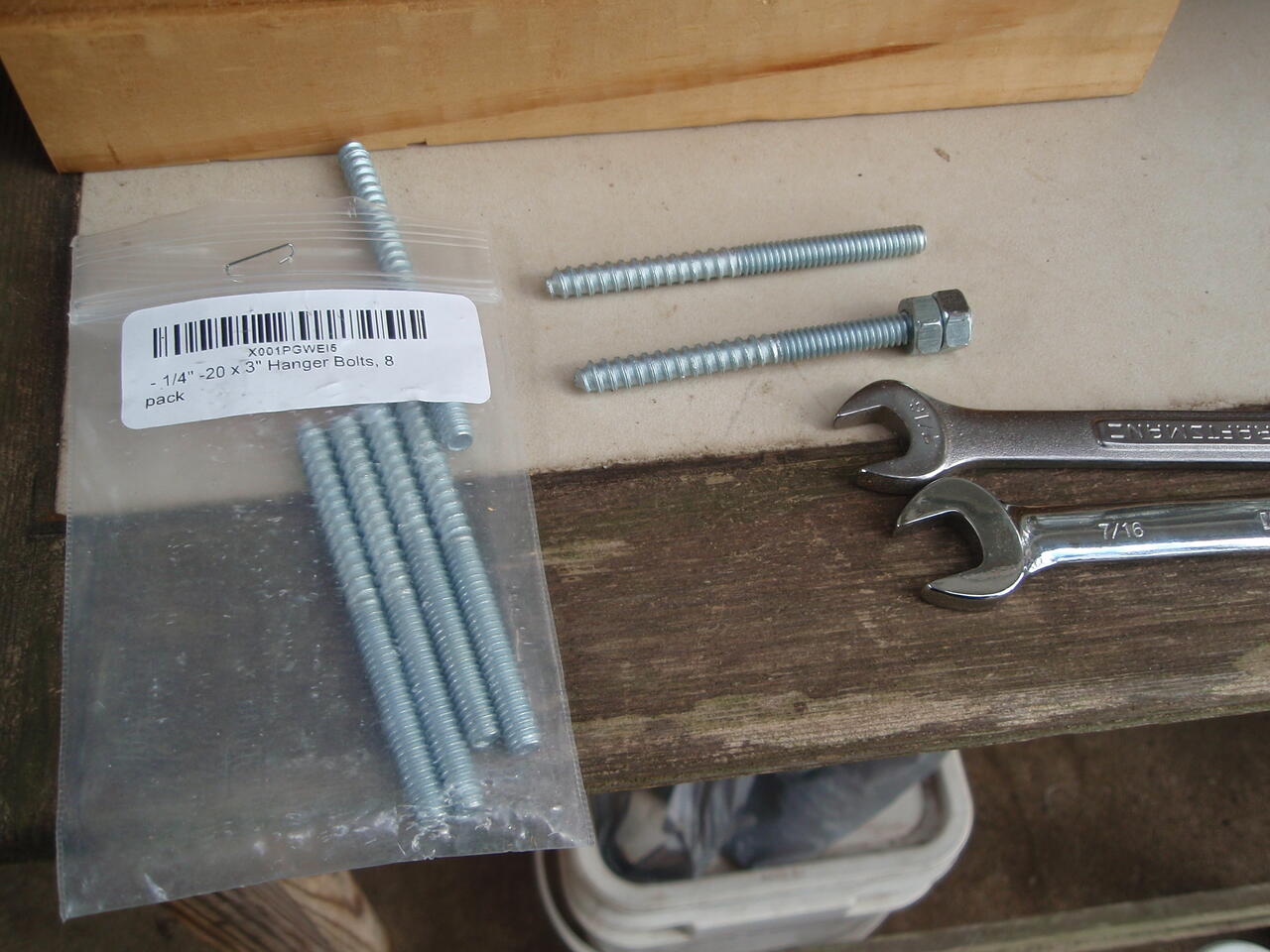

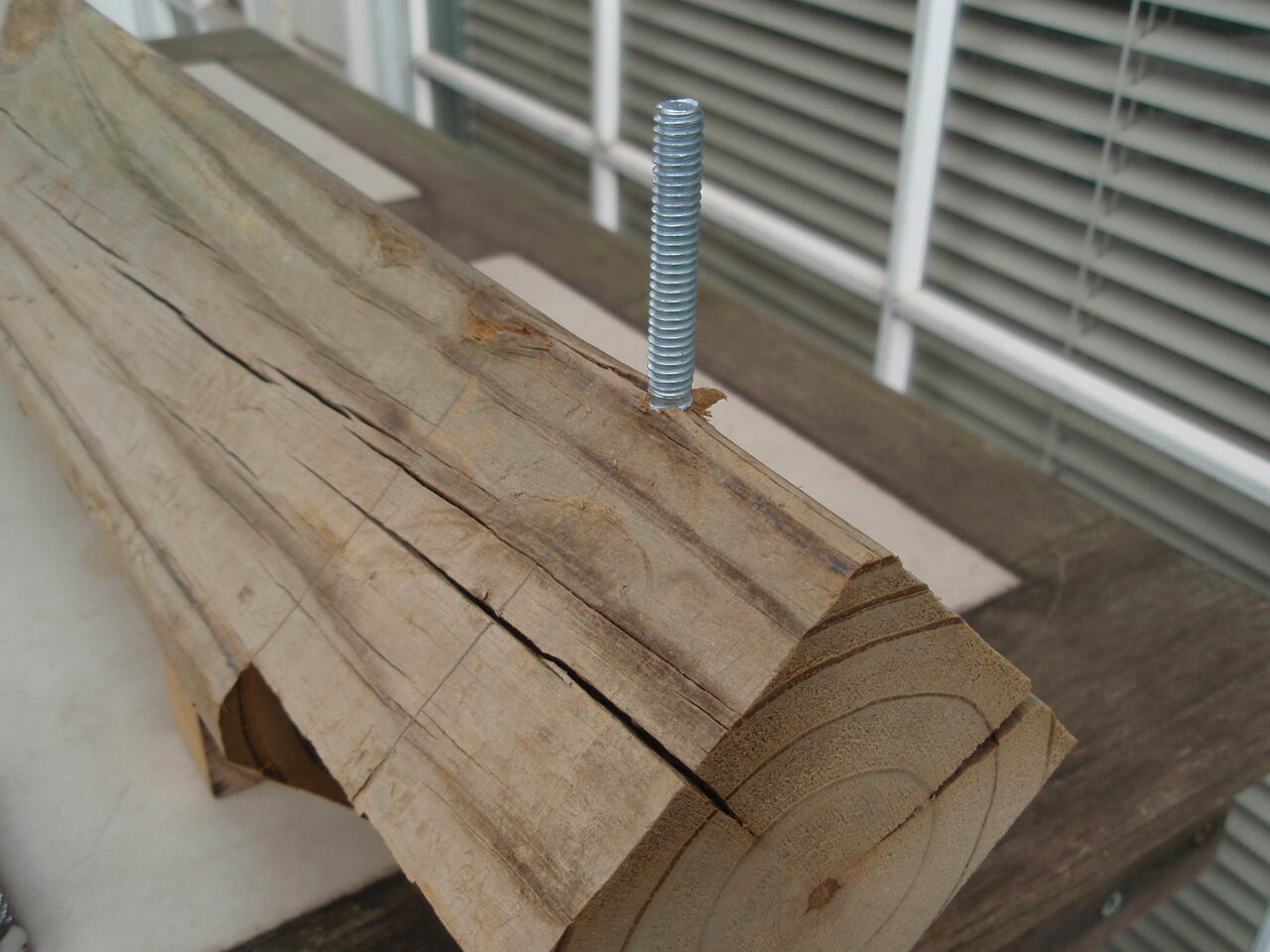

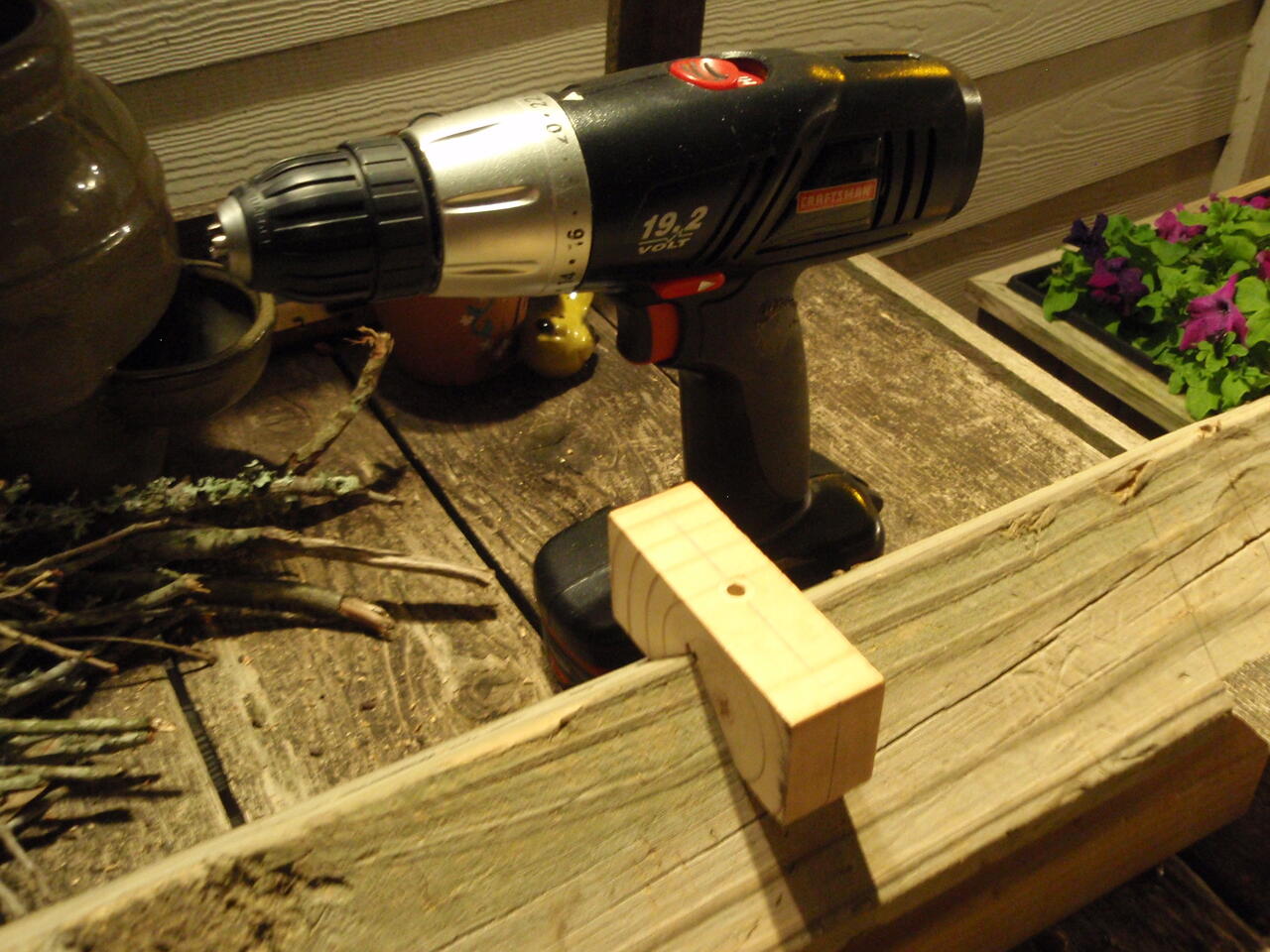

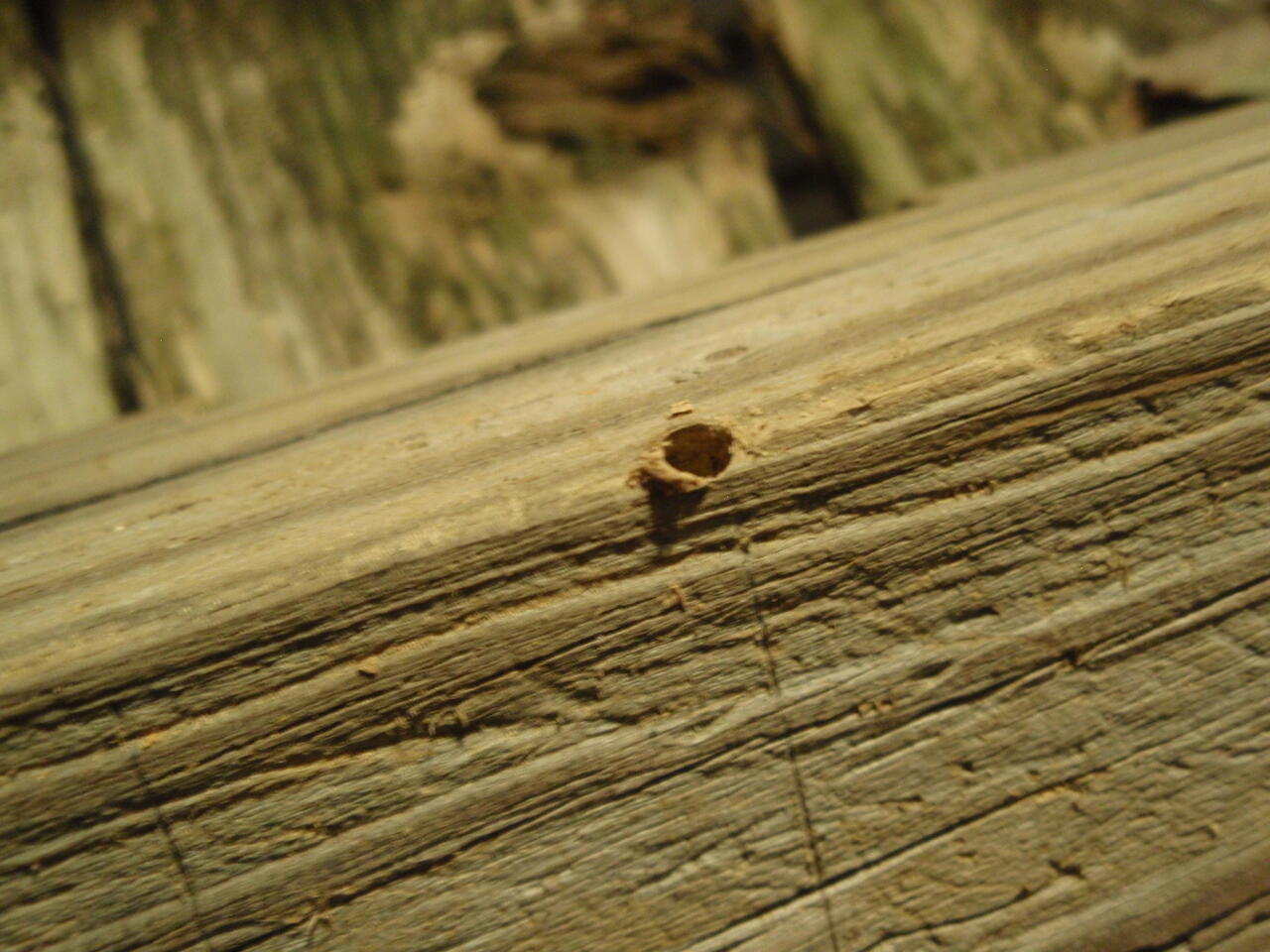

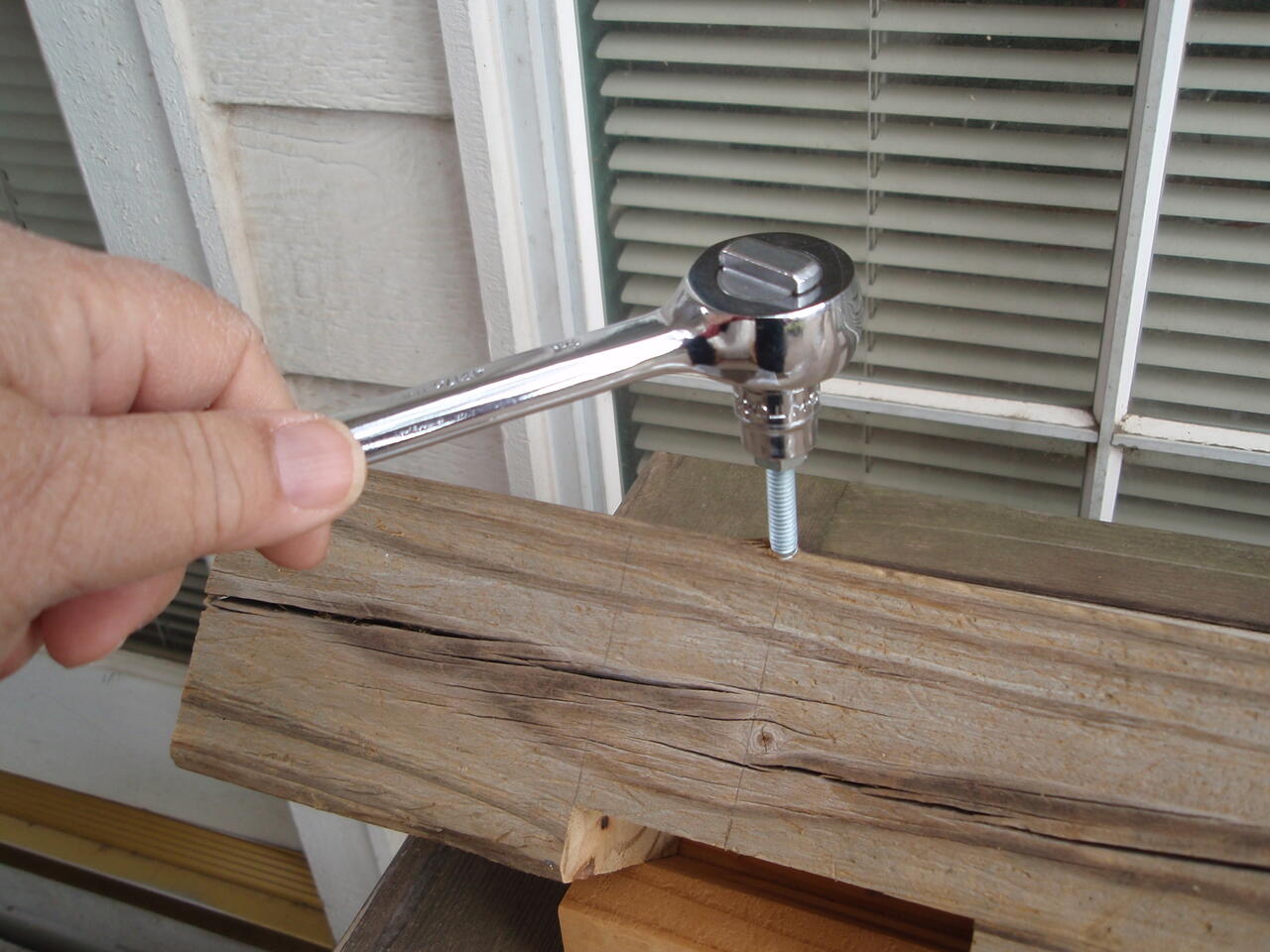

    Another variation, same method, into corner of 4x4 post to place a Hanger screw-bolt.
    Click image for larger version  Name:	P1140029.jpg Views:	33 Size:	177.8 KB ID:	858659 Click image for larger version  Name:	P1140031.jpg Views:	33 Size:	154.9 KB ID:	858658 Click image for larger version  Name:	P1180032.jpg Views:	33 Size:	137.0 KB ID:	858660 Click image for larger version  Name:	P1180033.jpg Views:	33 Size:	120.4 KB ID:	858656 Click image for larger version  Name:	P1180034.jpg Views:	33 Size:	136.1 KB ID:	858657
    Attached Files
    Last edited by LCHIEN; 04-28-2024, 10:31 PM.
