BT3000 Rear Fence Clamp Replacement

Collapse
X
Collapse
  •

  • BT3000 Rear Fence Clamp Replacement

    Originally Posted by Martin Call in the category BT3000 Maintainence & Repair

    BT3000 Rear Fence Clamp Replacement Materials
    (1) 1 7/8"(l) x 1 1/4"(h) x 7/8"(w) piece of hardwood (fine grained is better) (1) 1 1/2"(l) x 3/4"(h) x 7/8"(w) piece of hardwood
    (1) 2"(w) x 1/8"(t) x 6"(l) bar aluminum
    (3) 1/8" x 1 1/8" bolts with nuts
    (2) 1/4" Axle caps (refer to picture)

    Parts supplied from old clamp
    (2) Screws Key No. 2, refer to bt3000 owners manual pg 44 (1) Screw Key No. 5
    (1) Clamper-B Key No.6
    (1) Roll Pin Key No. 4

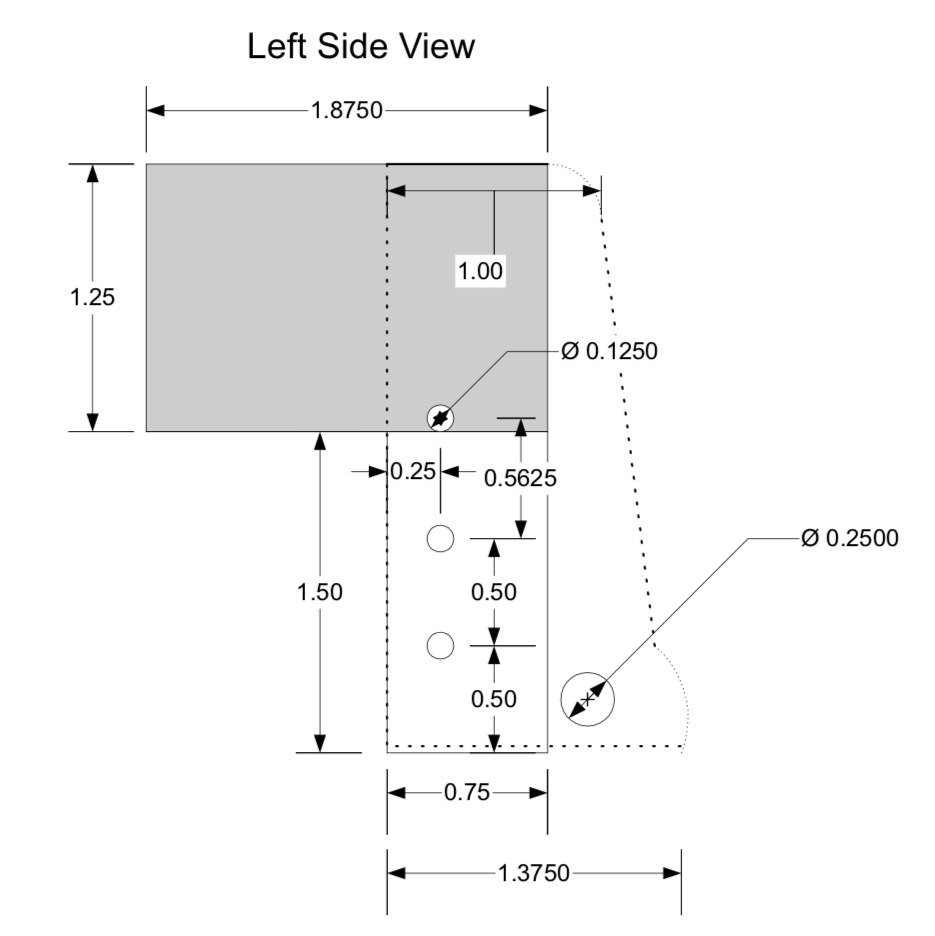

    Click image for larger version  Name:	rcrepl0001 diagram 003.jpg Views:	1 Size:	53.1 KB ID:	834375

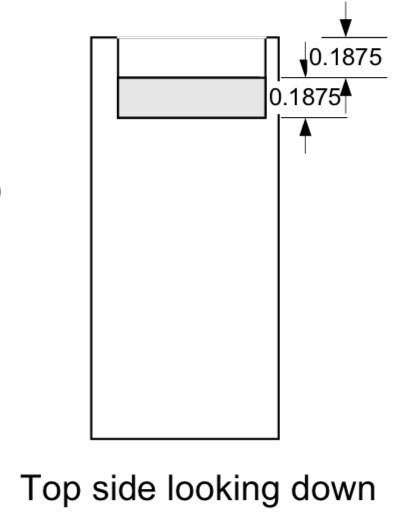

    Click image for larger version  Name:	rcrepl0001 diagram 001.jpg Views:	1 Size:	49.2 KB ID:	834374

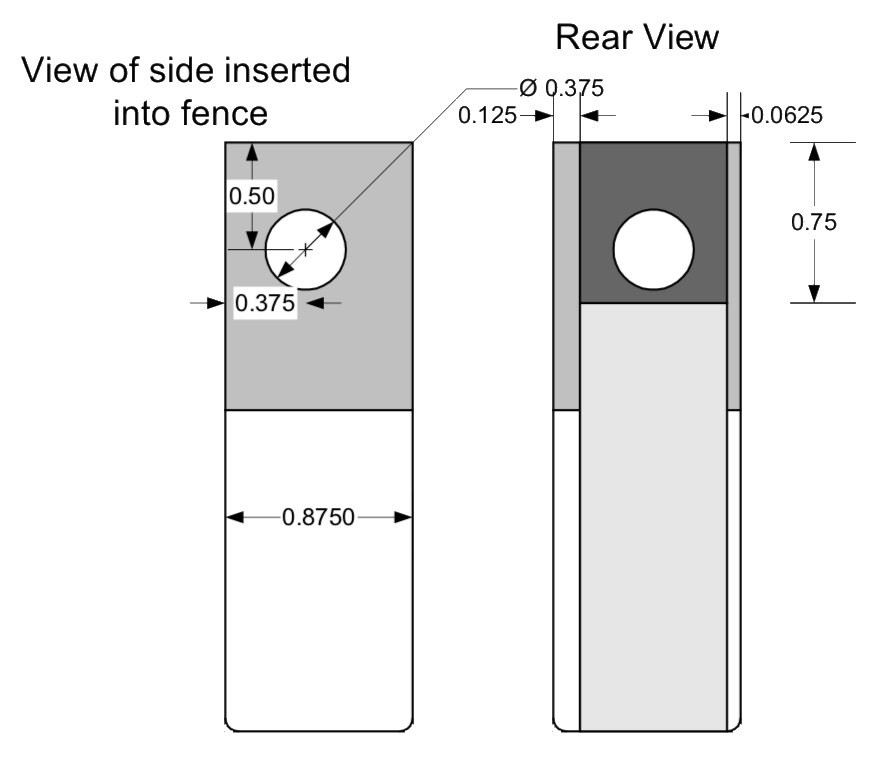

    Click image for larger version  Name:	rcrepl0001 diagram 002.jpg Views:	1 Size:	16.4 KB ID:	834373


    Click image for larger version  Name:	rcrepl0001 1.jpg Views:	1 Size:	8.2 KB ID:	834367
    A full view of the BT3000 fence with the rear clamp replaced. Also shown is a 2” aluminum angle 1/8” thick with holes to accept an auxiliary fence.

    Click image for larger version  Name:	rcrepl0002.jpg Views:	1 Size:	9.5 KB ID:	834366
    A close up of the clamp installed

    Click image for larger version  Name:	rcrepl0003.jpg Views:	1 Size:	13.9 KB ID:	834368
    Bottom view

    Click image for larger version  Name:	rcrepl0004.jpg Views:	1 Size:	10.8 KB ID:	834369
    Rear View

    Click image for larger version  Name:	rcrepl0005.jpg Views:	1 Size:	12.8 KB ID:	834370
    Fence side view

    Click image for larger version  Name:	rcrepl0006.jpg Views:	1 Size:	18.5 KB ID:	834371
    Side view

    Click image for larger version  Name:	rcrepl0007.jpg Views:	1 Size:	19.0 KB ID:	834372
    Rear view

    NOTES
    1. Refer to the photographs for placement of the clamper.
    2. On the rear view you see the dado I cut in the wood. The dado isn’t continuous depth refer to the drawings. You see what I mean when you look at the shape of the clamper-b part.
    3. You want a tight fit so cut large and then cut for precision.
    4. Make sure these measurements work for your saw.
    5. When installed you want a small 1/64” clearance between the bottom of the fence and the table.
    6. On the aluminum sides leave 1/16” gap between the bottom of the side and the rail it rides on. Only the wood should touch.
    7. Slightly round the edges on the bottom of the wood the rides on the rail. Use a hard paste wax and saturate the end grain. When dry buff to a high polish.
    Original PDF Document:
    rcrepl.pdf
