    Question about switch on Saw Stop

    I have read somewhere that there is a switch on the Saw Stop for cutting green wood that effectively disengages the safety feature of the saw. Does it self re-engage after the cut is finished or does the operator have to reset it? Just curious not owning one myself and knowing that we have some on the forum that have them.
    I think in straight lines, but dream in curves
  • LCHIEN
    Internet Fact Checker
    • Dec 2002
    • 20920
    • Katy, TX, USA.
    • BT3000 vintage 1999

    #2
    i'm pretty sure that I've read and I'm also sure that it would be designed so that the saw always comes up in the safety function engaged mode and you have to push the switch to defeat it when turning it on. A subsequent use w/o pushing the switch at turn-on would have it come on with the safety mode engaged again.
    Loring in Katy, TX USA
    If your only tool is a hammer, you tend to treat all problems as if they were nails.
    BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

    Comment

    • chopnhack
      Veteran Member
      • Oct 2006
      • 3779
      • Florida
      • Ryobi BT3100

      #3
      Makes sense and that is what I would hope would be the case for user safety...

      It would be a real pain for someone using that saw for pt wood if they forgot to reset it though....
      I think in straight lines, but dream in curves

      Comment

      • LinuxRandal
        Veteran Member
        • Feb 2005
        • 4889
        • Independence, MO, USA.
        • bt3100

        #4
        I can't find the video right now, but I have seen one. There is a key you turn, before starting the Sawstop, to defeat the safety (for wet or metallic material). Once the off switch is hit, it then is back into safety mode. I wish Sawstop had a better video on this as theirs is 8 seconds.
        She couldn't tell the difference between the escape pod, and the bathroom. We had to go back for her.........................Twice.

        Comment

        • softop41
          Established Member
          • Jul 2004
          • 470
          • Plainfield, IL, USA.
          • BT3100-1

          #5
          My son has a Saw Stop and the safety system can be disabled for wet wood and it reactivates each time the saw is turned off so it is active when the saw is started next.
          Jerry
          Making High Quality Sawdust in Northeast Plainfield

          Comment

          • LCHIEN
            Internet Fact Checker
            • Dec 2002
            • 20920
            • Katy, TX, USA.
            • BT3000 vintage 1999

            #6
            Originally posted by chopnhack
            Makes sense and that is what I would hope would be the case for user safety...

            It would be a real pain for someone using that saw for pt wood if they forgot to reset it though....
            Not something you'd forget twice.
            Loring in Katy, TX USA
            If your only tool is a hammer, you tend to treat all problems as if they were nails.
            BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

            Comment

            • cabinetman
              Gone but not Forgotten RIP
              • Jun 2006
              • 15218
              • So. Florida
              • Delta

              #7
              Originally posted by softop41
              My son has a Saw Stop and the safety system can be disabled for wet wood and it reactivates each time the saw is turned off so it is active when the saw is started next.
              That makes sense considering the technology of the saw.

              .

              Comment

              • chopnhack
                Veteran Member
                • Oct 2006
                • 3779
                • Florida
                • Ryobi BT3100

                #8
                Originally posted by LCHIEN
                Not something you'd forget twice.
                There's no doubt, but it would certainly be a dumb moment and financially painful... we have all done some procedure where we skipped a step and ended up having to make do.... in this case, if you didnt have a spare cartridge handy you were out your shop time!
                I think in straight lines, but dream in curves

                Comment

                • LCHIEN
                  Internet Fact Checker
                  • Dec 2002
                  • 20920
                  • Katy, TX, USA.
                  • BT3000 vintage 1999

                  #9
                  Originally posted by chopnhack
                  There's no doubt, but it would certainly be a dumb moment and financially painful... we have all done some procedure where we skipped a step and ended up having to make do.... in this case, if you didnt have a spare cartridge handy you were out your shop time!
                  and a spare blade.
                  and a spare pair of underwear, probably.
                  Loring in Katy, TX USA
                  If your only tool is a hammer, you tend to treat all problems as if they were nails.
                  BT3 FAQ - https://www.sawdustzone.org/forum/di...sked-questions

                  Comment

                  • cabinetman
                    Gone but not Forgotten RIP
                    • Jun 2006
                    • 15218
                    • So. Florida
                    • Delta

                    #10
                    Originally posted by chopnhack
                    There's no doubt, but it would certainly be a dumb moment and financially painful... we have all done some procedure where we skipped a step and ended up having to make do.... in this case, if you didnt have a spare cartridge handy you were out your shop time!

                    Better than losing a finger or three.

                    .

                    Comment

                    • big tim
                      Senior Member
                      • Mar 2006
                      • 546
                      • Scarborough, Toronto,Canada
                      • SawStop PCS

                      #11

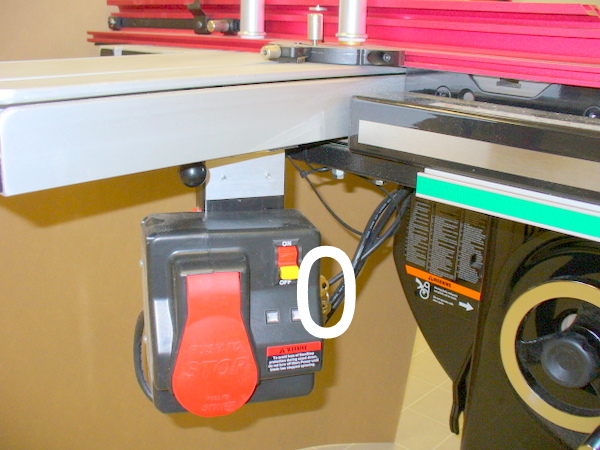

                      A key operated switch on the right side of the switch assembly is used to defeat the safety feature, you simply turn it and you have defeated the safety feature of the saw. The key switch is spring-loaded and returns back to its off position after you release it. And indeed, once you have started the saw and turned it off again, the saw is back in the safety mode. So providing you don't keep the saw running you can only make one cut at a time in the bypass mode.
                      I tried several times to upload a picture of the switch assembly, but the upload fails every time.
                      Cheers!

                      Tim

                      PS Just found out that image hosting on the forum is not available yet.

                      Edited, 10/14/2012 Added picture
                      It worked.
                      Attached Files
                      Last edited by big tim; 10-14-2012, 03:43 PM.
                      Sometimes my mind wanders. It's always come back though......sofar!

                      Comment

                      • chopnhack
                        Veteran Member
                        • Oct 2006
                        • 3779
                        • Florida
                        • Ryobi BT3100

                        #12
                        Originally posted by LCHIEN
                        and a spare blade.
                        and a spare pair of underwear, probably.
                        LOL :-)

                        True c-man.
                        I think in straight lines, but dream in curves

                        Comment

                        • lago
                          Established Member
                          • Nov 2003
                          • 473
                          • Lago Vista, TX.

                          #13
                          I got a SawStop a few months ago and you ar right about the switch and one-time use. I have used it a few times and each time, it is RTFM to get it right. IIRC, you turn the switch and watch the blinkling light. Then turn the saw on. Once the saw is turned off, it is back to normal.

                          Lago

                          Comment

                          • big tim
                            Senior Member
                            • Mar 2006
                            • 546
                            • Scarborough, Toronto,Canada
                            • SawStop PCS

                            #14
                            I edited my post by adding a picture to my earlier post in this thread, but the thread does not show again when you log in again after posting. (hope this makes sense)
                            So let me add the image in this separate post and see if the thread will show up.
                            By the way the only way you can confirm you posted the image is by checking "preview post". And how do you add more narrative after an image?

                            Tim
                            Attached Files
                            Sometimes my mind wanders. It's always come back though......sofar!
