  • Walnut master bath vanity

    I've lost count on how long I've been working on this bathroom. I think it's been nearly a year since I started by ripping out the tub. I can't say my wife and I really had a plan (well, maybe she did), but here I am. My wife is getting a shorter desktop to the left of this vanity, so I was going for something that was mid-century modern and masculine. I like how it turned out.

    Today the tilers finished up. I can count on 2 fingers the number of times I've paid people to work on my house, but I just couldn't beat the price and they finished in 2 days.

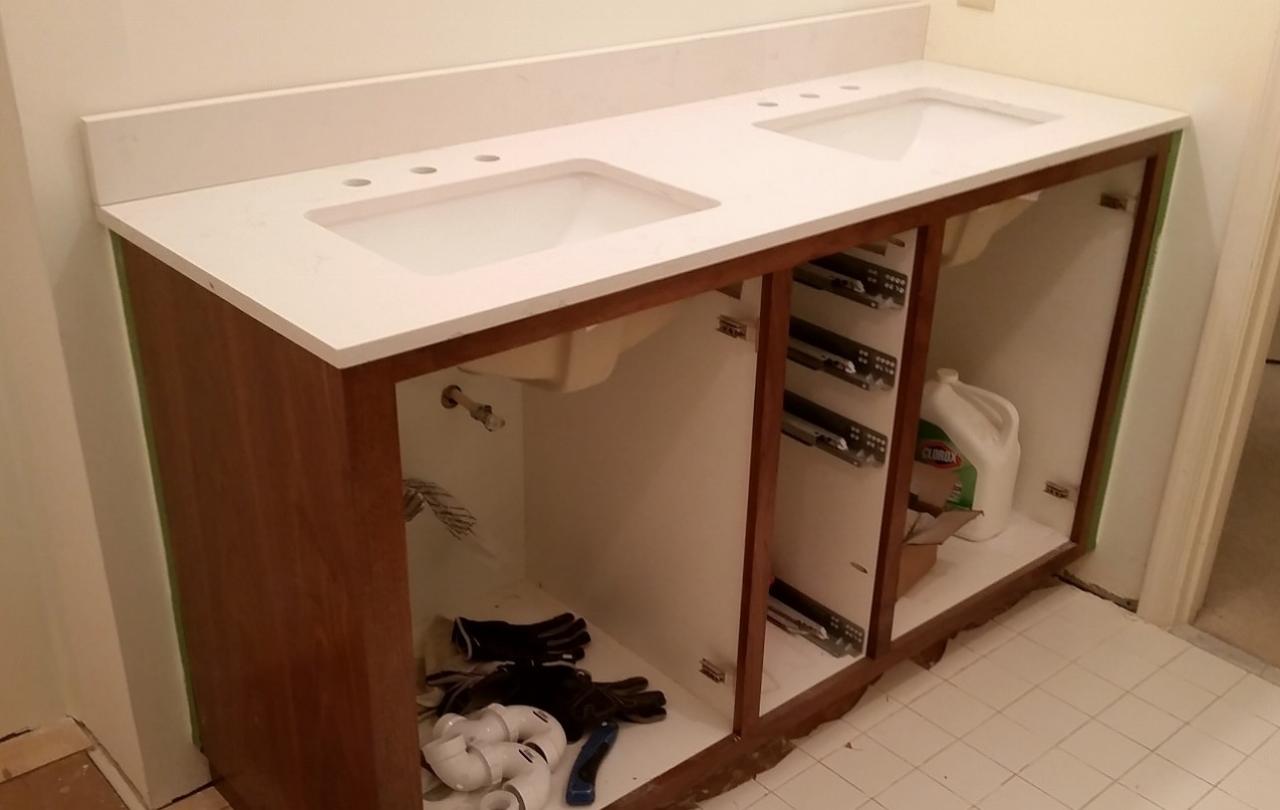

    We actually bought the vanity top from Lowe's several months ago. My wife wanted a bank of drawers down the middle so the challenge was measuring around the integrated sinks while the top was still in the box--I didn't want to risk breaking it by taking it out of the box. I wasn't good about taking work in progress pics, though. To make the drawers work, I had to make cutouts in the uprights to accommodate the sinks. You can just see the cutout in this pic. The carcass is all melamine. The left side is skinned with a solid walnut panel.

    Click image for larger version

Name:	wip.jpg
Views:	2
Size:	63.3 KB
ID:	831873

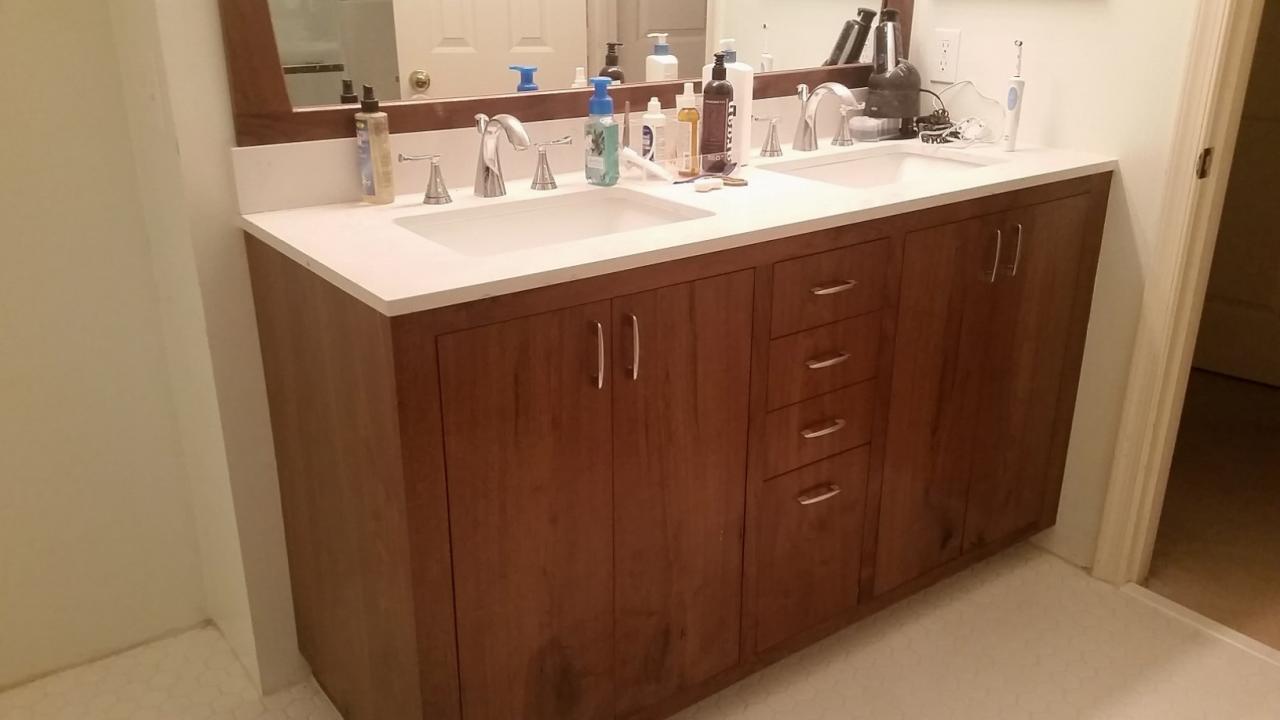

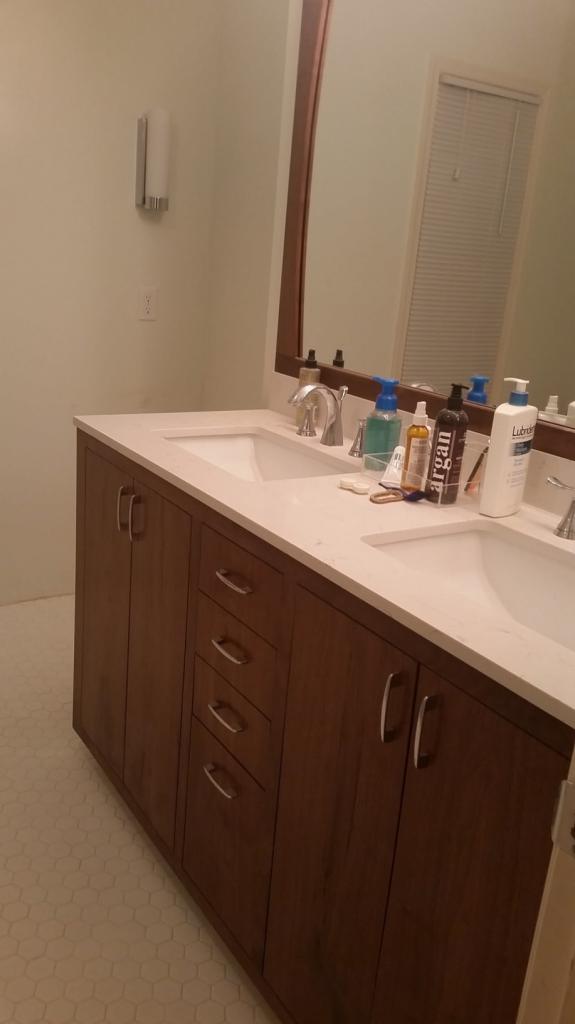

    All the walnut is from one tree so the color is nice and uniform. I resawed and veneered the door and drawer fronts over baltic birch ply.

    Click image for larger version

Name:	view1.jpg
Views:	2
Size:	59.1 KB
ID:	831875

    Click image for larger version

Name:	view2.jpg
Views:	1
Size:	36.0 KB
ID:	831876

    I wanted the grain on the drawer fronts to be continuous.

    Click image for larger version

Name:	drawers.jpg
Views:	1
Size:	54.3 KB
ID:	831877

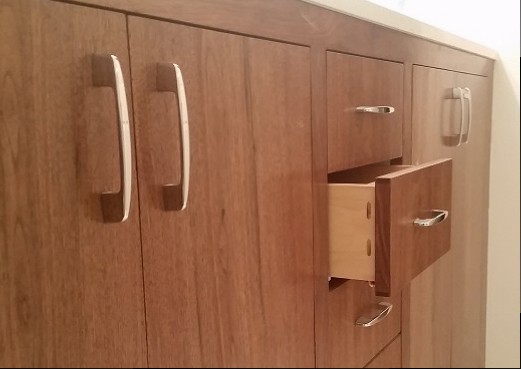

    The drawer boxes are held together using Dominoes

    Click image for larger version

Name:	drawr.jpg
Views:	1
Size:	32.4 KB
ID:	831878

    I had planned on reusing the old mirror, but the new vanity is several inches taller than the old one so the mirror needed to be cut down. Theoretically. I have cut glass before but this mirror was pretty thick. Anyway, it didn't go well. I ended up buying the mirror from a local glass shop.

    I've also been overthinking finishing big time for the longest time. This finish was just a couple coats of dewaxed shellac followed by several coats of General Finishes Endurovar water borne poly.


    Thanks for looking,
    Paul
    Attached Files

  • #2
    That is a nice vanity, finish came out great! Thanks for sharing.

    Comment


    • #3
      Looks good! I really like the dominos jointery. Not everyone can make dovetails and a glued/nailed together drawer box doesn’t have the class the walnut vanity presents.
      capncarl

      Comment


      • #4
        This is really nice workmanship. I am glad my wife did not (and not going to) see these pictures! Thanks for sharing.
        Turaj (in Toronto)
