    Alternitive router

    Are there any fixed base routers that fit the bt3000 other than Ryobi?
  • dbhost
    Slow and steady
    • Apr 2008
    • 9221
    • League City, Texas
    • Ryobi BT3100

    #2
    Contact Loring (LCHIEN) with your email address and ask him for his BT3K FAQ. I believe there is info in there on making a router mount plate for the BT3x00 saws. Simply put, build your plate, and drill it to fit whatever router you want...
    Please like and subscribe to my YouTube channel. Please check out and subscribe to my Workshop Blog.

    Comment

    • vaking
      Veteran Member
      • Apr 2005
      • 1428
      • Montclair, NJ, USA.
      • Ryobi BT3100-1

      #3
      Any Craftsman fixed base router should fit Ryobi accesory table.
      Alex V

      Comment

      • Dal300
        Banned
        • Aug 2011
        • 261
        • East Central Texas
        • Ryobi BT3100

        #4
        Well, yes, the screw holes line up on the Craftsmen, but on the older ones the handles get in the way and you'll need to grind out the ribs that are underneath. My Craftsman router (circa 1977) is that way.

        Originally posted by vaking
        Any Craftsman fixed base router should fit Ryobi accesory table.

        Comment

        • vaking
          Veteran Member
          • Apr 2005
          • 1428
          • Montclair, NJ, USA.
          • Ryobi BT3100-1

          #5
          I think router like this will fit nicely into BT3 accessory table:


          It has variable speed and 1/2" collet - important features for table router. It is 2hp - sufficient for 90% of table routing needs. Accessory table on BT3 has a bit opening of 2.5" diameter, which means in this table you cannot use very large bits, like large horizontal panel rasers. In other words for this table 2hp router is a very good fit, larger router you would not be able to use in this place anyway.
          Alex V

          Comment

          • big tim
            Senior Member
            • Mar 2006
            • 546
            • Scarborough, Toronto,Canada
            • SawStop PCS

            #6

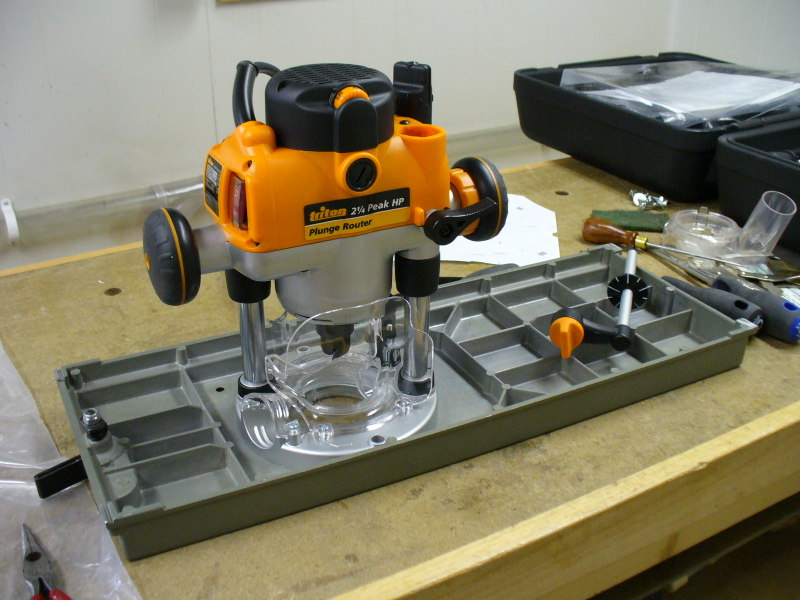

            I mounted a Triton 2.25HP router on my BT3000 quite some time ago,
            worked out fine:
            Here are some pictures I took at that time:
            Click image for larger version

Name:	372.JPG
Views:	1
Size:	109.2 KB
ID:	786042

            Click image for larger version

Name:	367.JPG
Views:	1
Size:	116.5 KB
ID:	786043

            Click image for larger version

Name:	371.JPG
Views:	1
Size:	107.9 KB
ID:	786044

            Click image for larger version

Name:	370.JPG
Views:	1
Size:	114.2 KB
ID:	786045

            cheers,

            Tim
            Sometimes my mind wanders. It's always come back though......sofar!

            Comment

            • charliesll
              Handtools only
              • May 2012
              • 2

              #7
              Thanks VAKING, I purchased the Craftsman router and it worked great.
